Hardware & Machinery
HDPE Butt-Fusion Welding Machine
Manual (SPA series) and automatic (W series) butt-fusion welding machines for jointing PE / PP / PVDF pipes from DN63 up to DN1200 mm. Heated-plate butt fusion produces homogeneous, monolithic joints stronger than the parent pipe — the dominant jointing method for HDPE water, gas and mining pipelines. Compliant with ISO 21307 / DVS 2207 / ASTM F2620 welding procedures and ISO 12176-1 machine certification.
- Manual Butt-Fusion Welding Machine SPA Series

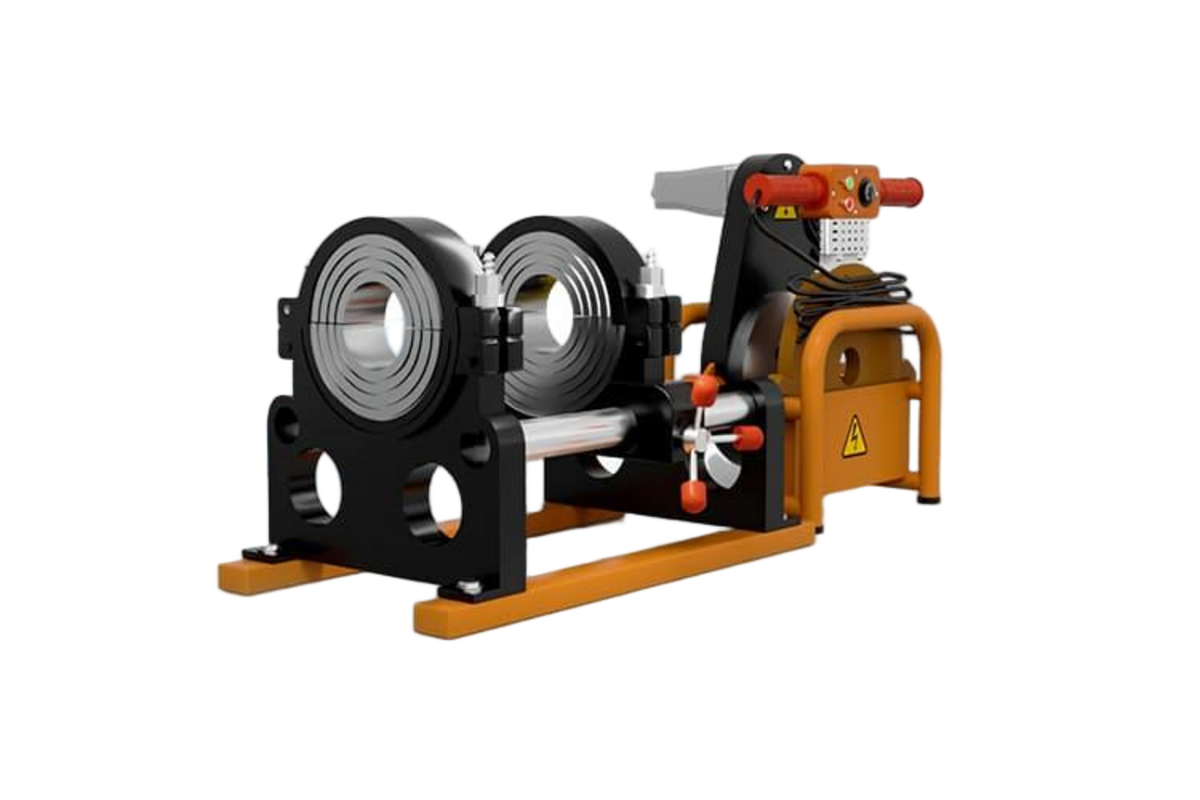

- HDPE Butt-Fusion Welder — Detail

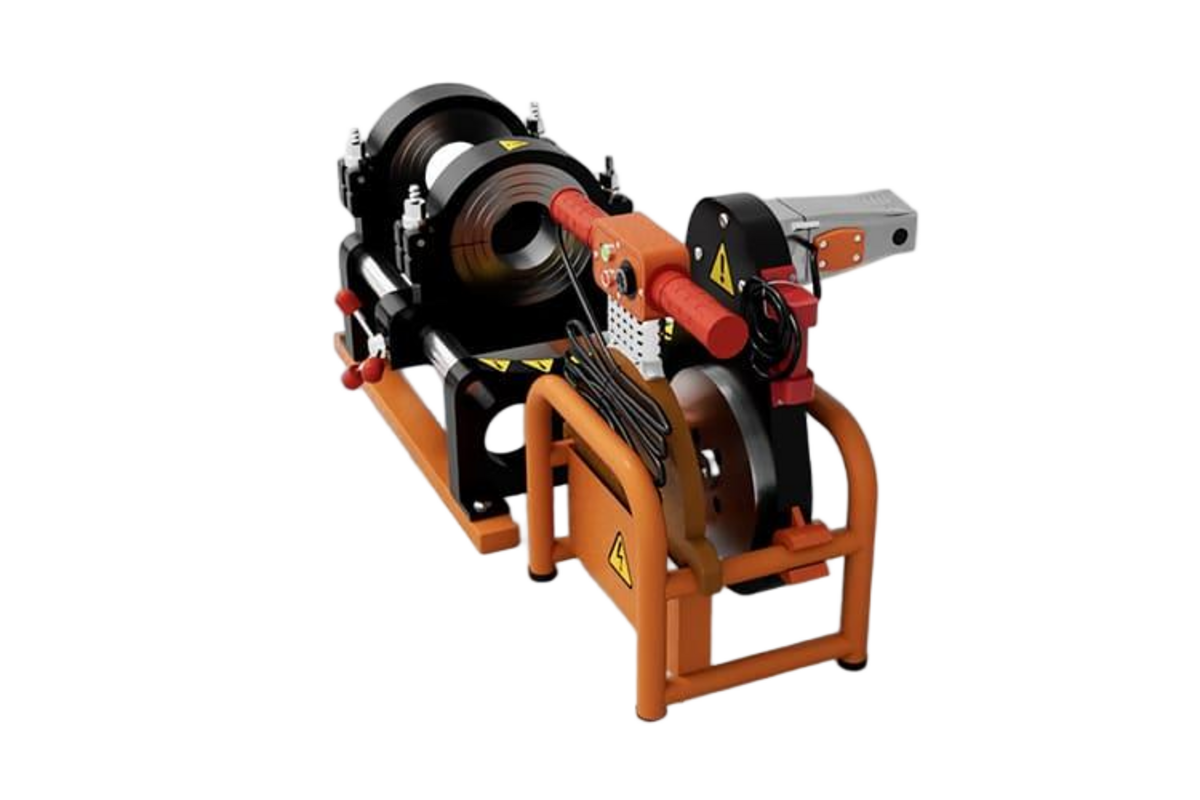

- Butt-Fusion Welder Hydraulic Unit
- Automatic CNC Butt-Fusion Welding Machine
- Diameter Range
- DN63 – DN1200 mm (across SPA + W series models)
- Standards
- ISO 21307 / DVS 2207 / ASTM F2620 / ISO 12176-1
- Operating Temperature
- Heating plate up to 300 °C, ±3 °C control
- Applications
- Water mains, gas distribution, mining, fire protection, industrial pipelines
Product Description
The Butt-Fusion Welding Machine joins HDPE, PP and PVDF pressure pipes by heated-plate fusion. It produces homogeneous, monolithic joints stronger than the parent pipe — the dominant jointing method for HDPE water, gas and mining pipelines.
Advantages and Characteristics
1. Manual (SPA series) and automatic CNC (W series) models from DN63 up to DN1200.
2. Hydraulic carriage with pre-set fusion pressure and dwell time.
3. Heating plate with PTFE non-stick surface and digital temperature control.
4. Compliant with ISO 21307, DVS 2207 and ASTM F2620 fusion procedures.
5. ISO 12176-1 machine certification ensures every joint is repeatable and traceable.
Typical Applications
1. Field welding of municipal water and gas mains.
2. Mining slurry and tailings line fabrication.
3. Workshop fabrication of fittings and spool-pieces.
4. Marine outfall and dredge spread joining at the dock.
5. Industrial chemical-process pipework.
Datasheet
ISO 4427 — Dimensional Data (PE100)
| Model | Welding Range (mm) | Total Power | Power Supply | Heating Plate Power | Weight (kg) |
|---|---|---|---|---|---|
| SPA 160-4M (Manual) | 63 – 160 | 1.9 kW | 220 V, 50/60 Hz | 1.0 kW | 43 |
| SPA 200-4M (Manual) | 63 – 200 | 2.11 kW | 220 V, 50/60 Hz | 1.21 kW | 50 |
| SPA 250-4M (Manual) | 90 – 250 | 3.0 kW | 220 V, 50/60 Hz | 2.0 kW | 78 |
| W 160 (Hydraulic) | 63 – 160 | 2.46 kW | 220 V, 50/60 Hz | 1.0 kW | 110 |
| W 200 (Hydraulic) | 63 – 200 | 3.06 kW | 220 V, 50/60 Hz | 1.6 kW | 120 |
| W 250 (Hydraulic) | 90 – 250 | 3.85 kW | 220 V, 50/60 Hz | 2.0 kW | 145 |
| W 315 (Hydraulic) | 160 – 315 | 4.95 kW | 220 V, 50/60 Hz | 3.0 kW | 190 |
| W 450 (Hydraulic) | 280 – 450 | 8.22 kW | 380 V, 50/60 Hz | 5.2 kW | 400 |
| W 630 (Hydraulic) | 400 – 630 | 12.22 kW | 380 V, 50/60 Hz | 9.2 kW | 630 |
| W 800 (Hydraulic) | 630 – 800 | 15.8 kW | 380 V, 50/60 Hz | 12.5 kW | 1200 |
| W 1000 (Hydraulic) | 800 – 1000 | 22.4 kW | 380 V, 50/60 Hz | 17.4 kW | 1950 |
| W 1200 (Hydraulic) | 800 – 1200 | 28.5 kW | 380 V, 50/60 Hz | 21.5 kW | 3100 |
