HDPE Fittings
HDPE Electrofusion Fittings
Electrofusion fittings including 45°/90° elbows, tees, reducers, end caps, branch saddles, couplers, flanges and stub-end flange adapters. Fast, repeatable joints for trenchless and space-restricted installations.
- HDPE Electrofusion Stub-End Flange Adapter

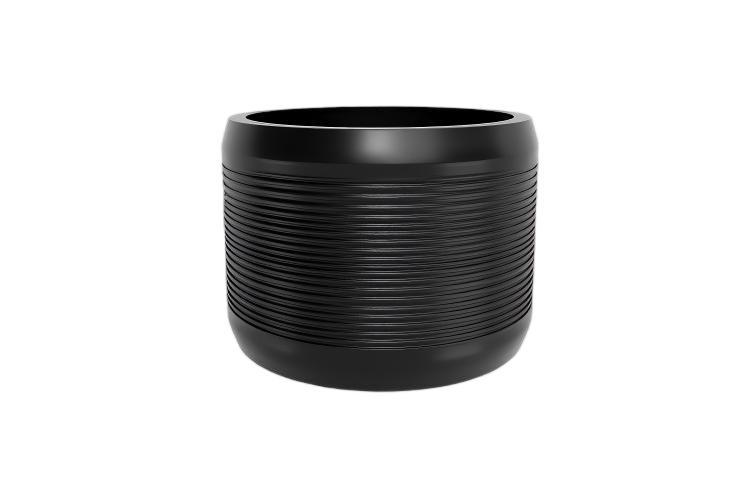

- Reinforced HDPE Electrofusion Coupler

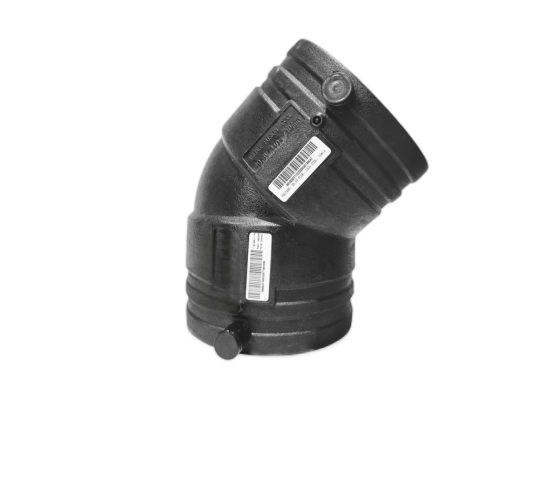

- Electrofusion 45° Elbow

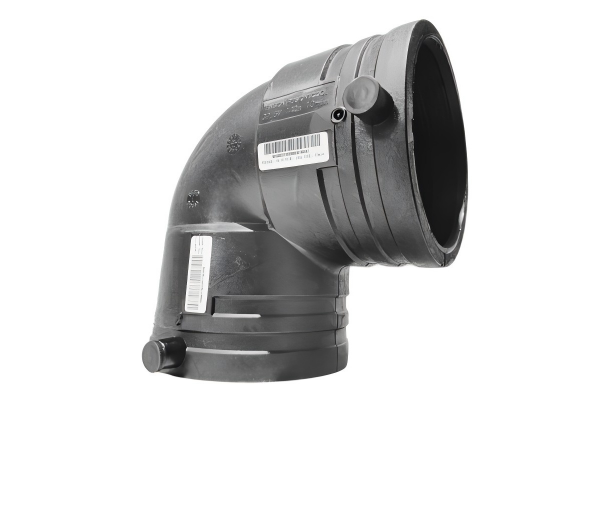

- Electrofusion 90° Elbow

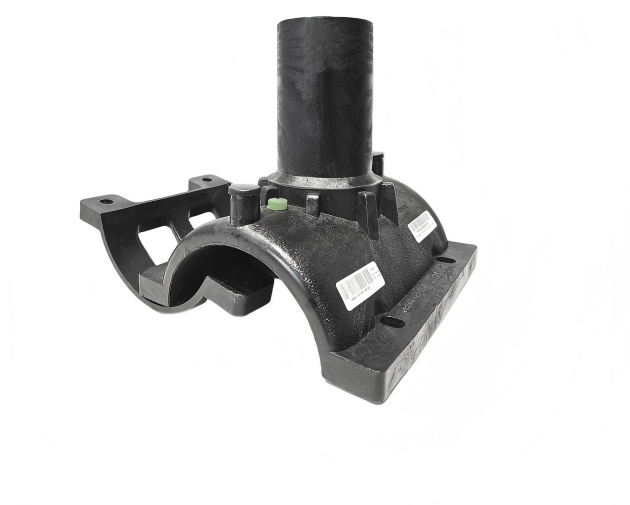

- Electrofusion Branch Saddle
- Electrofusion End Cap
- Electrofusion Flange
- Electrofusion Reducer
- Electrofusion Reducing Tee
- Electrofusion Tee
- Raw Materials
- PE100 / PE4710 from Borealis, SABIC
- Diameter Range
- DN50 – DN1600 mm (customised on request)
- Pressure Rating
- SDR17 – SDR7 (PN10 – PN20)
- Standards
- ISO 8085-3 / EN 12201-3 / ISO 4437-3 / AS/NZS 4129
- Certificates
- WRAS, CE, ISO 9001 / 14001 / 45001
- Joint Type
- Electrofusion (resistor wire embedded), per ISO 12176
- Applications
- Trenchless / space-restricted joints; gas, water, fire mains
Product Description
HDPE Electrofusion Fittings have an embedded heating coil that fuses the fitting to the pipe when an electrofusion control unit applies a precisely metered current. They produce repeatable, certified joints in tight spaces or trenchless installations where butt-fusion equipment cannot fit.
Advantages and Characteristics
1. Barcode parameter loading: removes operator guesswork; every joint logged for traceability.
2. Works in confined trenches, urban congestion and pipe rehabilitation projects.
3. Energy-output compensation for ambient temperature ensures consistent fusion quality.
4. Wide range: couplers, reducers, elbows, tees, end caps, branch saddles, transition fittings, stub-end flange adapters.
5. Suitable for water, gas, mining and industrial pressure pipe (DN20 – DN800).
Typical Applications
1. Gas-distribution networks where butt-fusion equipment cannot enter.
2. Trenchless rehabilitation of legacy mains.
3. Service connections to buildings and meter sets.
4. Repair clamps and tap-in branches on existing live mains.
5. Marine and underwater piping where surface welding is impossible.
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
HDPE Electrofusion Fittings — used in these projects
HDPE Electrofusion Fittings — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
