PVC Pipes
PVC Electrical Conduit Pipe
PVC electrical conduit for indoor and outdoor wiring runs, telecoms cables and data networks. Smooth-bore for easy cable pulling, sizes DN16 – DN150, available rigid (light/medium/heavy) and corrugated flexible variants. Manufactured to BS EN 61386, GB/T 14823 and ASTM E84 fire ratings.
- PVC Electrical Conduit Pipe
- PVC Conduit for Cable Protection

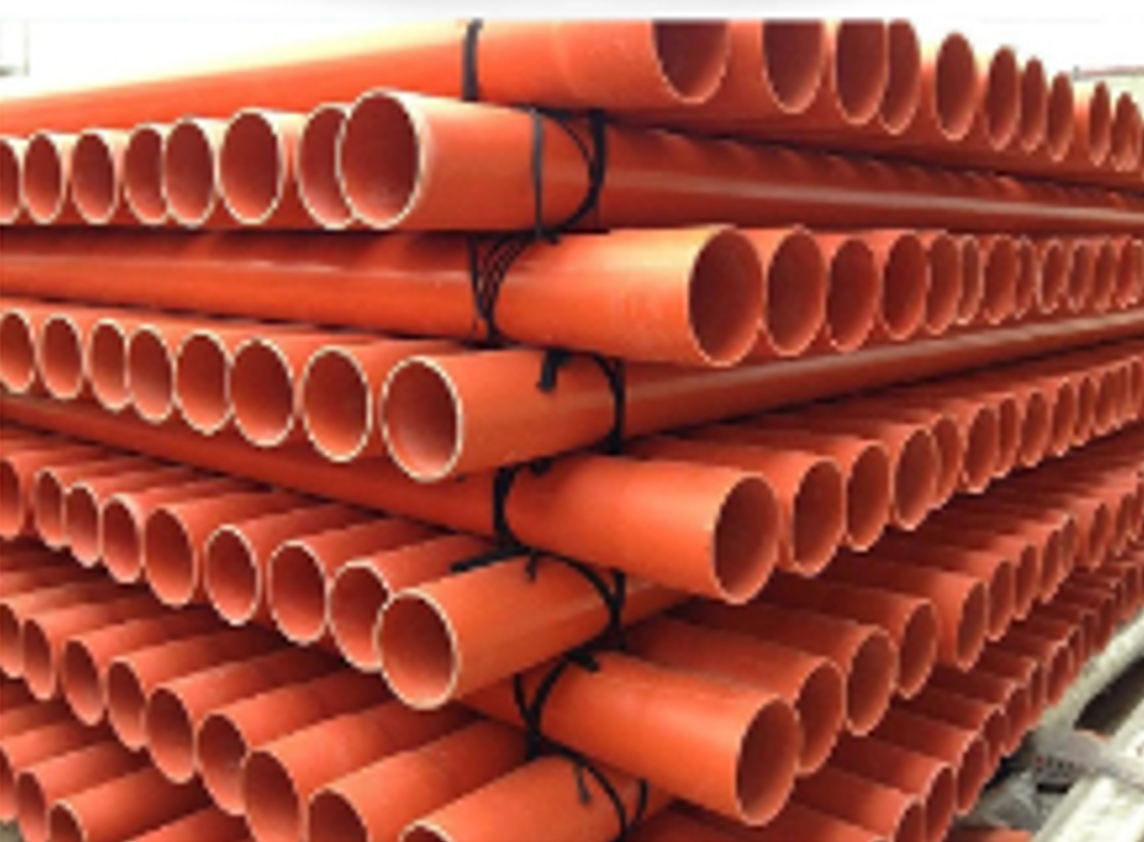

- PVC Electrical Conduit — Detail
- Stacked Orange PVC Cable Conduit — PVC Electrical Conduit Pipe | Primepoly
- Raw Materials
- PVC-U flame-retardant compound
- Diameter Range
- DN20 – DN355 mm
- Standards
- BS EN 61386 / GB/T 14823 / ASTM E84
- Color
- White / grey / orange / black (per region)
- Joint Type
- Solvent-weld socket / threaded
- Applications
- Indoor / outdoor wiring, telecoms, data networks
Product Description
PVC Conduit Pipe is a rigid plastic conduit for protecting electrical wiring inside buildings, telecoms cables and data networks. Smooth-bore PVC sleeves the cable from mechanical damage, moisture and rodents and pulls easily through bends.
Advantages and Characteristics
1. Smooth bore minimises cable friction during pulling.
2. Self-extinguishing PVC formulation safer than metal conduit in fire scenarios.
3. Insulating, non-conductive material — no earthing of conduit needed.
4. Compatible with 90°/45° bends, junction boxes and threaded couplings.
5. Lower cost and lighter weight than steel conduit, faster installation.
Typical Applications
1. Concealed in-wall and in-slab building wiring.
2. Industrial-plant power and control cabling.
3. Telecoms and data-network distribution inside risers.
4. Outdoor lighting and signage cable protection.
5. Solar-PV DC string wiring (UV-rated grades).
Datasheet
PVC Electrical Conduit — Dimensional Data
| DN (mm) | Size (in) | OD Tolerance (mm) | Socket Depth (mm) | Wall Thickness (mm) |
|---|---|---|---|---|
| 20 | 1/2" | 0.2 | — | 1.7 |
| 25 | 3/4" | 0.2 | — | 1.7 |
| 32 | 1" | 0.2 | — | 1.8 |
| 40 | 1 1/4" | 0.2 | — | 2.0 |
| 50 | 1 1/2" | 0.2 | 75 | 2.4 |
| 63 | 2" | 0.3 | 100 | 3.0 |
| 75 | 2 1/2" | 0.3 | 110 | 3.6 |
| 90 | 3" | 0.3 | 120 | 4.3 |
| 110 | 4" | 0.4 | 120 | 4.2 |
| 125 | 5" | 0.4 | 119 | 4.8 |
| 140 | 5 1/2" | 0.5 | 125 | 5.4 |
| 160 | 6" | 0.5 | 132 | 6.2 |
| 180 | 7" | 0.6 | 145 | 6.9 |
| 200 | 8" | 0.6 | 145 | 7.7 |
| 225 | 9" | 0.7 | 152 | 8.6 |
| 250 | 10" | 0.8 | 160 | 9.6 |
| 280 | 11" | 0.9 | 170 | 10.7 |
| 315 | 12" | 1.0 | 180 | 12.1 |
| 355 | 14" | 1.1 | 180 | 13.6 |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
PVC Electrical Conduit Pipe — used in these projects
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
