Socket-Fusion Welding Machine
Hand-held socket-fusion welding machines for small-diameter PP-R / PE / PB / PVDF plumbing and chemical-process pipework. Pure aluminium heating plate with electrostatic-spray finish; imported hydraulic power unit. Two welding ranges available — DN20-63 (residential plumbing) and DN63-160 (commercial / industrial). Commonly used for indoor PP-R hot/cold water plumbing.
- Manual Socket-Fusion Welding Machine

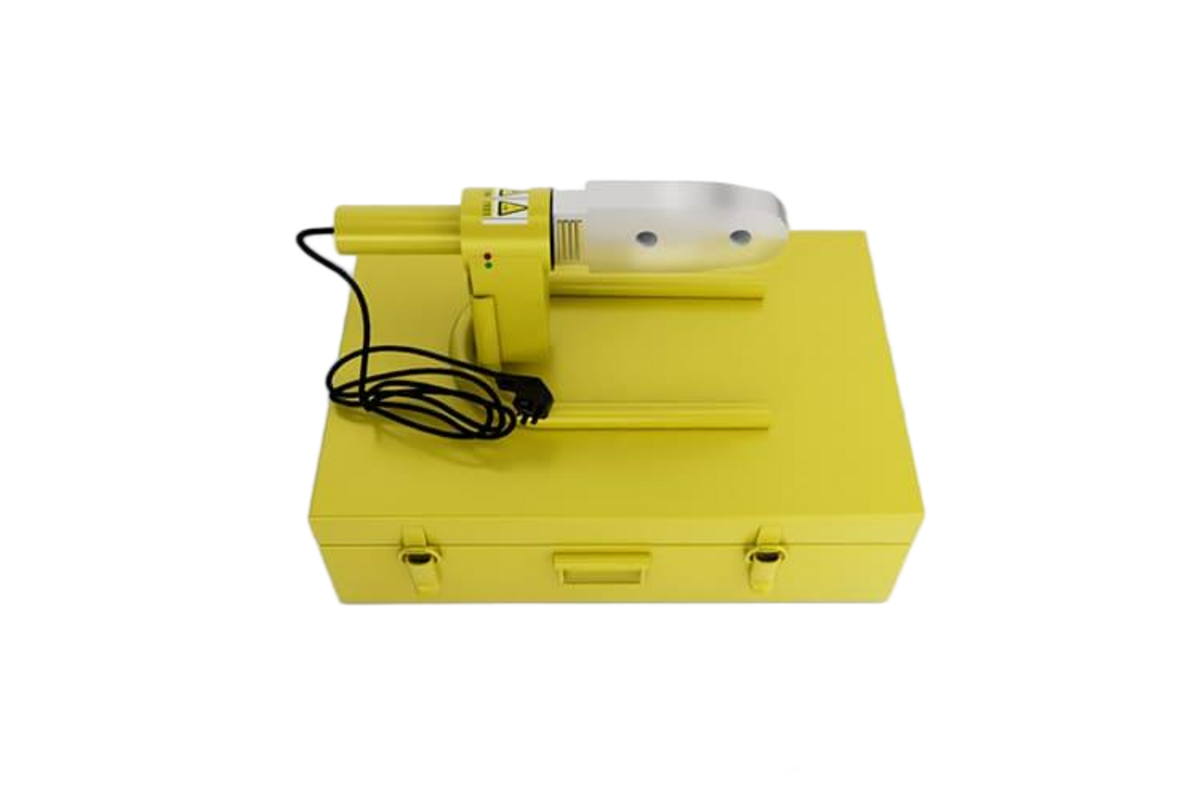

- Socket-Fusion Welder — Detail
- Socket-Fusion Welding Machine with Welding Heads

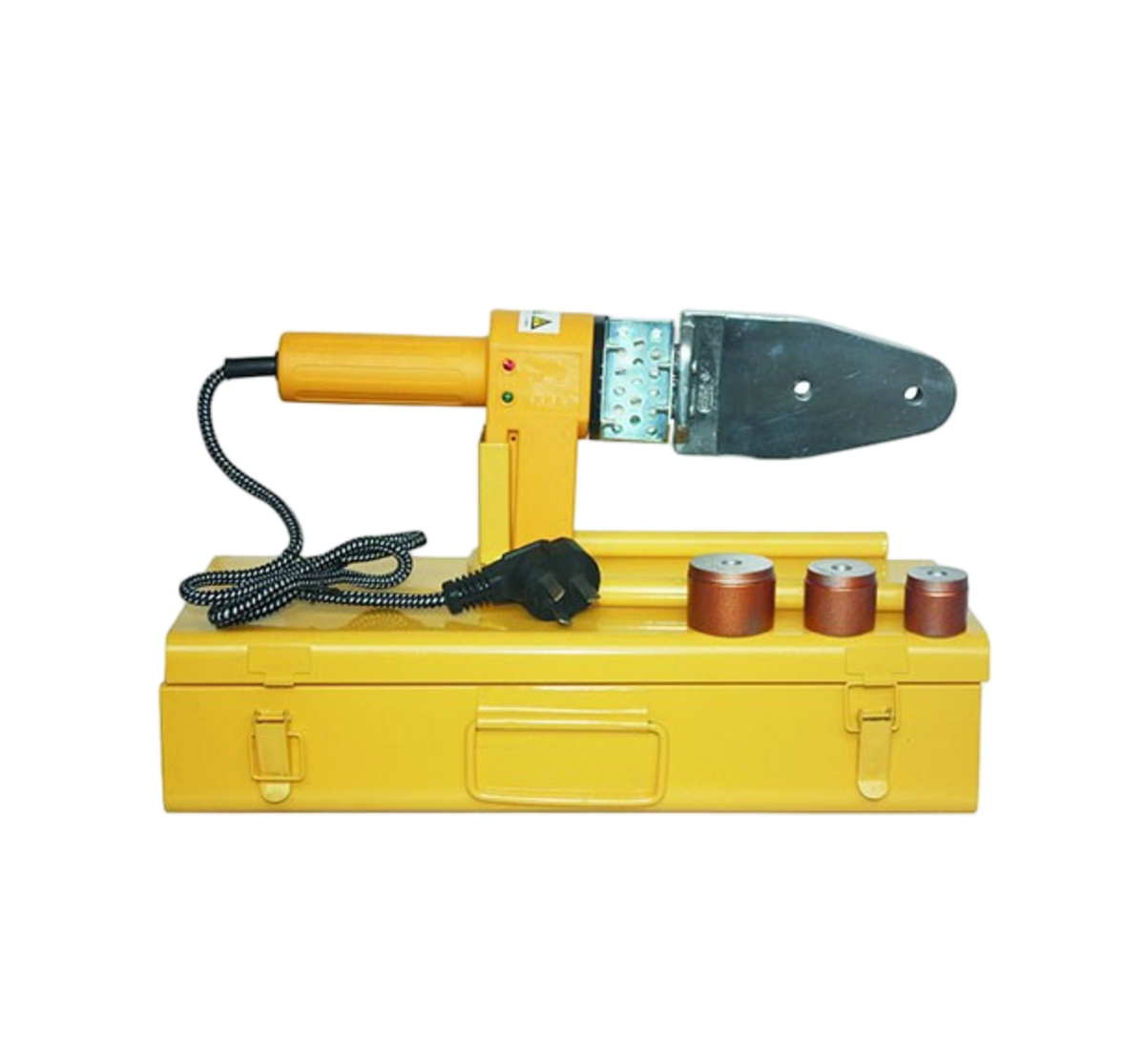

- Hand-Held Socket-Fusion Welder
- Diameter Range
- DN20 – DN160 mm (two model ranges: 20-63 and 63-160)
- Standards
- DVS 2207-11 / ISO 21307 (socket fusion)
- Operating Temperature
- 0 – 300 °C heating plate, controlled ±3 °C
- Joint Type
- Socket fusion (heated socket / spigot)
- Applications
- PP-R hot/cold water plumbing, indoor heating, chemical-process small-bore
Product Description
The Socket-Fusion Welding Machine joins small-diameter PE, PP-R and PVDF pipes (typically DN20 – DN160) by heating the male spigot and the female socket simultaneously, then pressing them together. It is the standard method for indoor PP-R hot-water plumbing and chemical-resistant lab piping.
Advantages and Characteristics
1. Lightweight, hand-held — single technician fits-and-forgets with no hydraulics required.
2. Quick learning curve: each weld takes 10–30 seconds depending on diameter.
3. Uniform heater inserts for each pipe size guarantee equal spigot/socket temperature.
4. Stand kits for bench work in prefab shops.
5. Suitable for PE, PP-R, PVDF and PP-H — universal small-bore plastic plumbing.
Typical Applications
1. PP-R hot- and cold-water building plumbing.
2. Underfloor-heating manifolds and risers.
3. PVDF chemical-process and ultrapure-water lines.
4. Compressed-air distribution in workshops.
5. Lab and pilot-plant utility piping.
Datasheet
ISO 4427 — Dimensional Data (PE100)
| Specification | DN20-63 Model | DN63-160 Model |
|---|---|---|
| Welding range | 20 / 25 / 32 / 40 / 50 / 63 mm | 63 / 75 / 90 / 110 / 125 / 160 mm |
| Rated voltage | 220 V ± 10% | 220 V ± 10% |
| Frequency | 50 / 60 Hz | 50 / 60 Hz |
| Rated power | 700 – 1800 W | 1600 W |
| Operating temp. | 0 – 300 °C | 0 – 280 °C |
| Applicable material | PE, PP-R, PB, PVDF | PE, PP-R, PB, PVDF |
