HDPE Pipes
HDPE Gas Pipe (PE80 / PE100)
Yellow PE80 and orange PE100 HDPE pipes for natural gas, LPG and biogas distribution networks. Manufactured to ISO 4437, EN 1555 and ASTM D2513, sizes DN20 – DN630, SDR11 / SDR17.6. Resin certified by Borealis / SABIC; full traceability with batch numbers and 3.1 mill certificates for utility approvals.
- PE80 Yellow HDPE Natural Gas Pipe

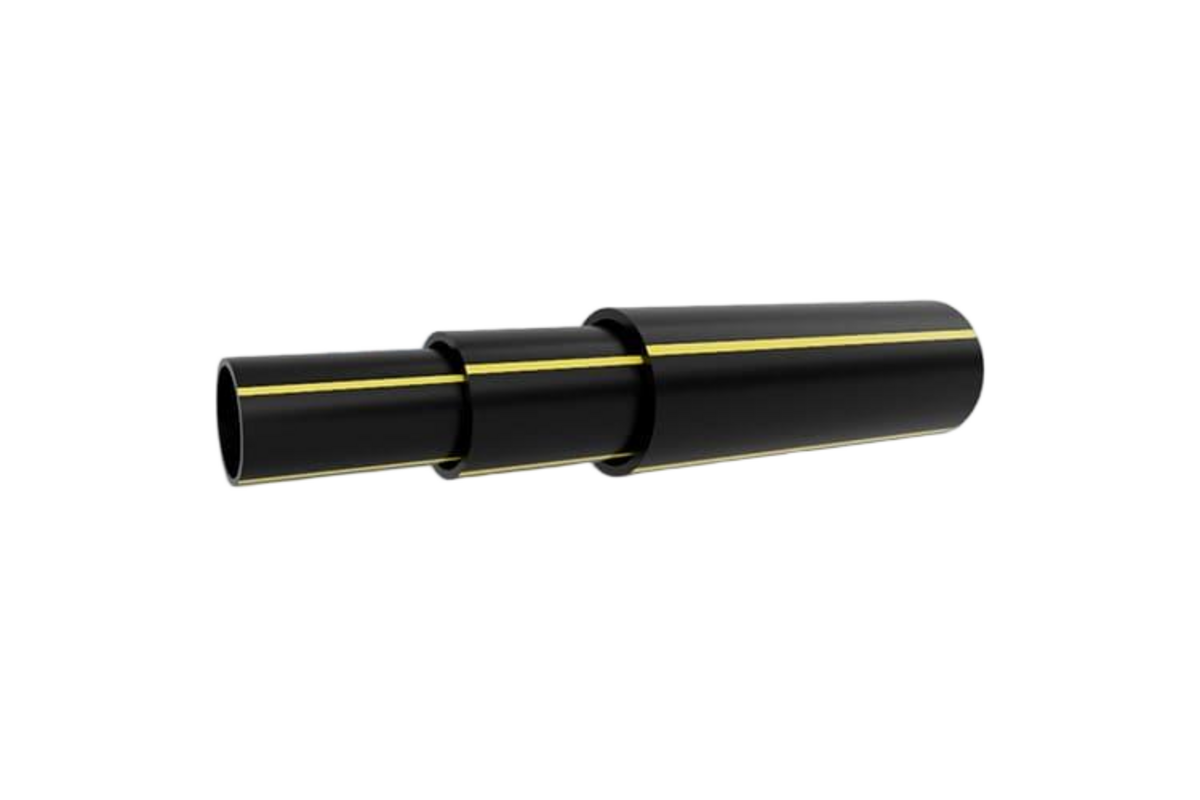

- HDPE Gas Distribution Pipe — Detail

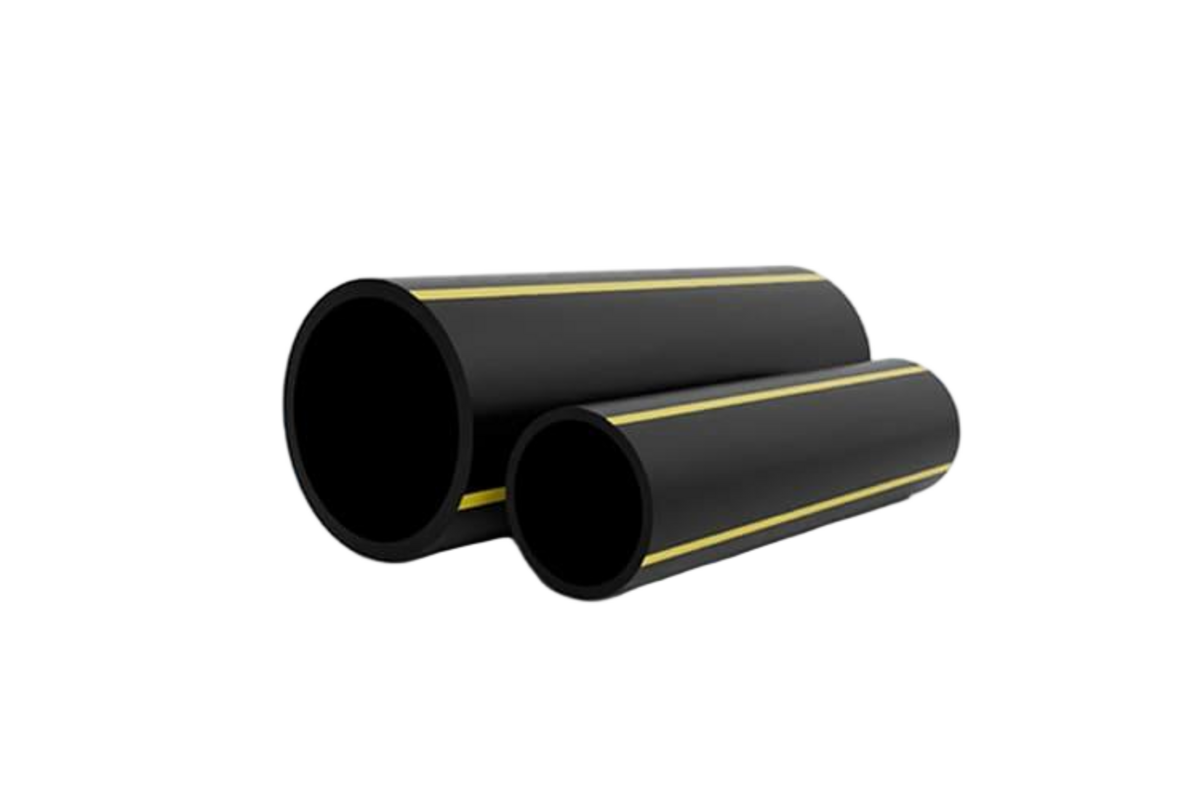

- Yellow PE80 Natural Gas Pipe

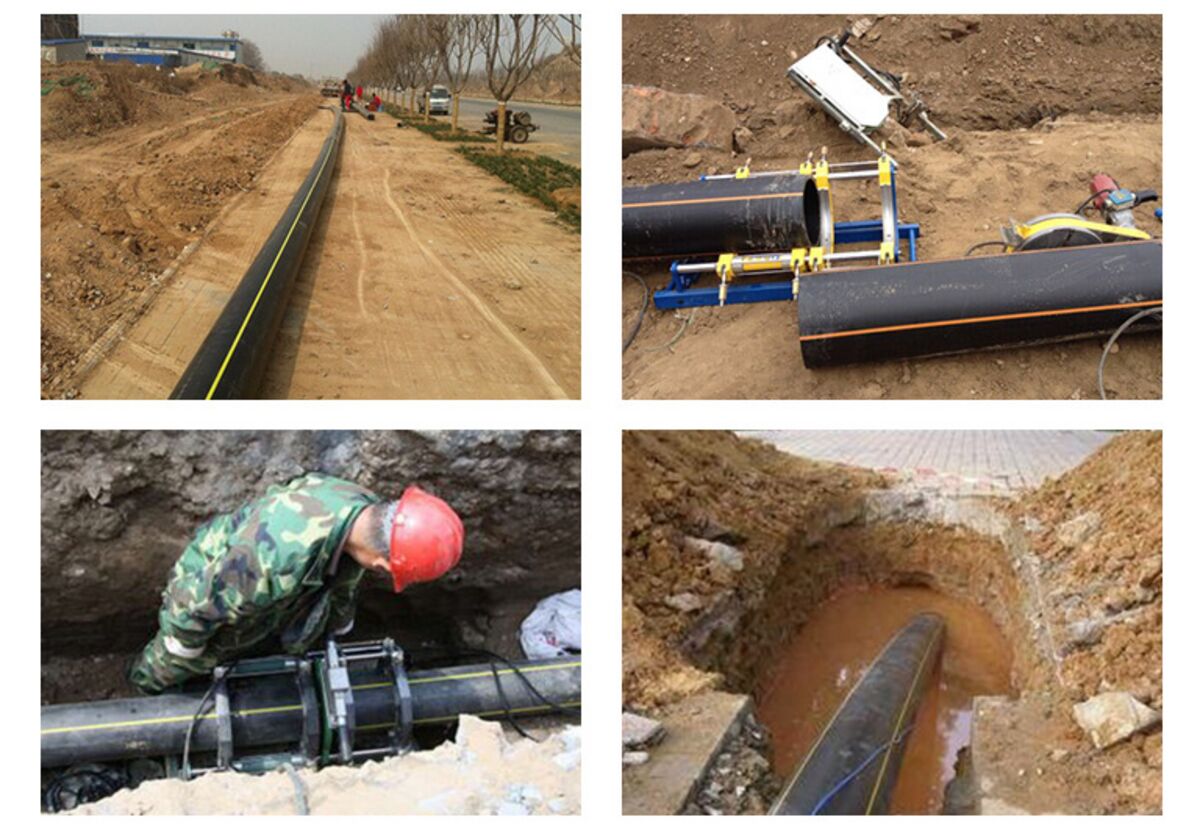

- HDPE Gas Pipe Installation On Site
- Raw Materials
- PE80 / PE100 / PE4710 from Borealis, SABIC, Sinopec, PetroChina
- Diameter Range
- DN20 – DN630 mm
- Pressure Rating
- PN10 (SDR17) / PN16 (SDR11)
- Standards
- ISO 4437 / EN 1555 / ASTM D2513 / SANS 8085 / AS/NZS 4130
- Color
- Solid yellow (PE80) / orange (PE100) / black with yellow stripes
- Length
- 5.8 m / 11.8 m straight
- Coil Length
- 100 m / 200 m / custom
- Applications
- Natural gas, LPG, biogas distribution networks
Product Description
HDPE Gas Pipe (PE80 / PE100) replaces legacy steel and cast-iron mains in low- and medium-pressure natural-gas distribution networks. Identified by yellow stripes (or full-yellow body), it offers leak-free fusion joints, immunity to soil corrosion and a designed service life of 50 years.
Advantages and Characteristics
1. ISO 4437 / EN 1555 / GB 15558 certified for natural-gas service.
2. Butt-fusion and electrofusion joints sealed for the life of the network.
3. No cathodic protection required — major OPEX saving over steel.
4. Sized DN20 – DN630 in SDR11 / SDR17.6 (4 bar) and SDR11 (10 bar) ratings.
5. Detector tape and tracer wire compatible for locating after burial.
Typical Applications
1. Municipal natural-gas distribution mains (low and medium pressure).
2. Service connections from the main to building meters.
3. Industrial-park gas reticulation.
4. LPG distribution and biogas collection (with appropriate liner spec).
5. Mine ventilation and methane drainage (PE100).
Datasheet
PE80/PE100 Gas Pipe — Dimensional Data
| Nominal SizeDN (mm) | PE100 SDR 11Min Wall (mm) | PE100 SDR 17Min Wall (mm) | PE80 SDR 11Min Wall (mm) | PE80 SDR 17Min Wall (mm) |
|---|---|---|---|---|
| 12 | 2.0 | — | 2.0 | — |
| 16 | 3.0 | — | 3.0 | — |
| 20 | 3.0 | — | 3.0 | — |
| 25 | 3.0 | — | 3.0 | — |
| 32 | 3.0 | 3.0 | 3.0 | 3.0 |
| 40 | 3.7 | 3.0 | 3.7 | 3.0 |
| 50 | 4.6 | 3.0 | 4.6 | 3.0 |
| 63 | 5.8 | 3.8 | 5.8 | 3.8 |
| 75 | 6.8 | 4.5 | 6.8 | 4.5 |
| 90 | 8.2 | 5.4 | 8.2 | 5.4 |
| 110 | 10.0 | 6.6 | 10.0 | 6.6 |
| 125 | 11.4 | 7.4 | 11.4 | 7.4 |
| 140 | 12.7 | 8.3 | 12.7 | 8.3 |
| 160 | 14.6 | 9.5 | 14.6 | 9.5 |
| 180 | 16.4 | 10.7 | 16.4 | 10.7 |
| 200 | 18.2 | 11.9 | 18.2 | 11.9 |
| 225 | 20.5 | 13.4 | 20.5 | 13.4 |
| 250 | 22.7 | 14.8 | 22.7 | 14.8 |
| 280 | 25.4 | 16.6 | 25.4 | 16.6 |
| 315 | 28.6 | 18.7 | 28.6 | 18.7 |
| 355 | 32.2 | 21.1 | 32.2 | 21.1 |
| 400 | 36.4 | 23.7 | 36.4 | 23.7 |
| 450 | 40.9 | 26.7 | 40.9 | 26.7 |
| 500 | 45.5 | 29.7 | 45.5 | 29.7 |
| 560 | 50.9 | 33.2 | 50.9 | 33.2 |
| 630 | 57.3 | 37.4 | 57.3 | 37.4 |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
HDPE Gas Pipe (PE80 / PE100) — used in these projects
HDPE Gas Pipe (PE80 / PE100) — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
