PVC Pipes
PVC-U Drainage Pipe
PVC-U drainage and sewerage pipes for soil, waste, vent, storm and gravity sewer lines. Solid-wall and structured-wall variants to EN 1401, ISO 4435 and ASTM D3034. Sizes DN50 – DN800, ring stiffness SN4 / SN8, with rubber-ring socket joints for fast underground installation.
- PVC-U Drainage Pipe

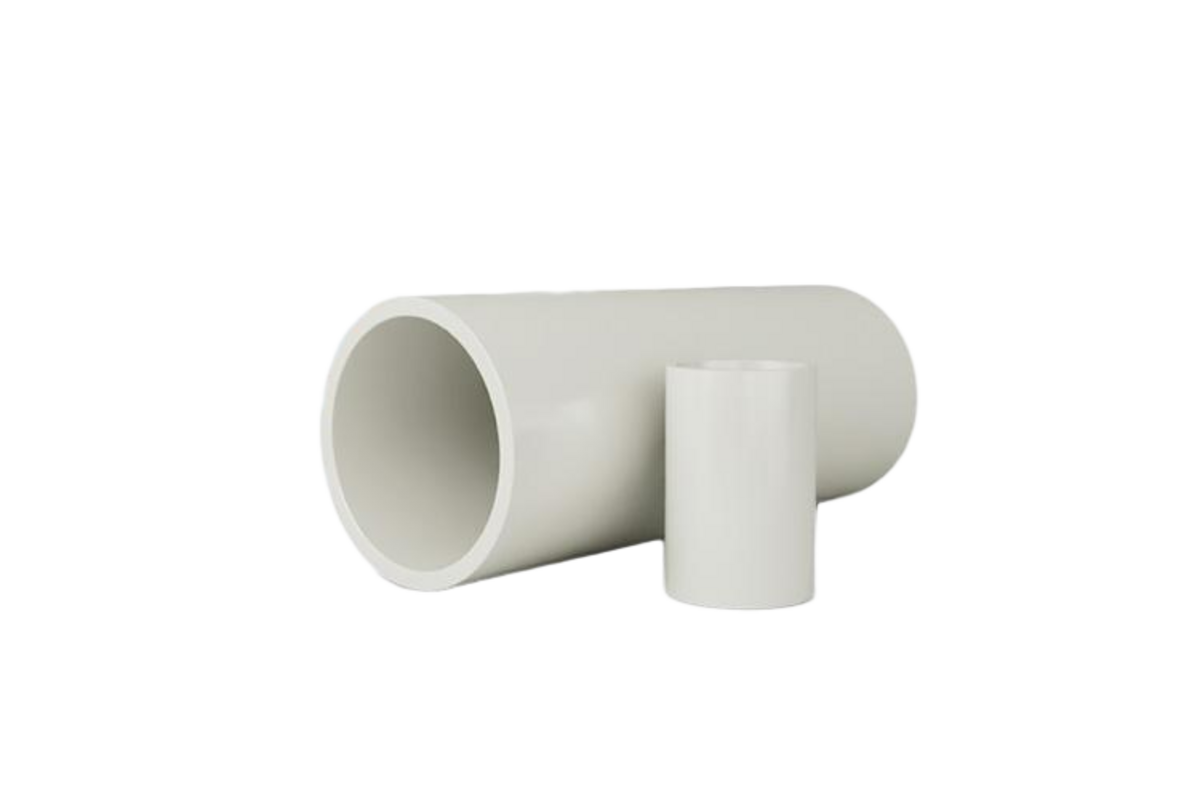

- PVC-U Sewer Pipe with Rubber-Ring Joint

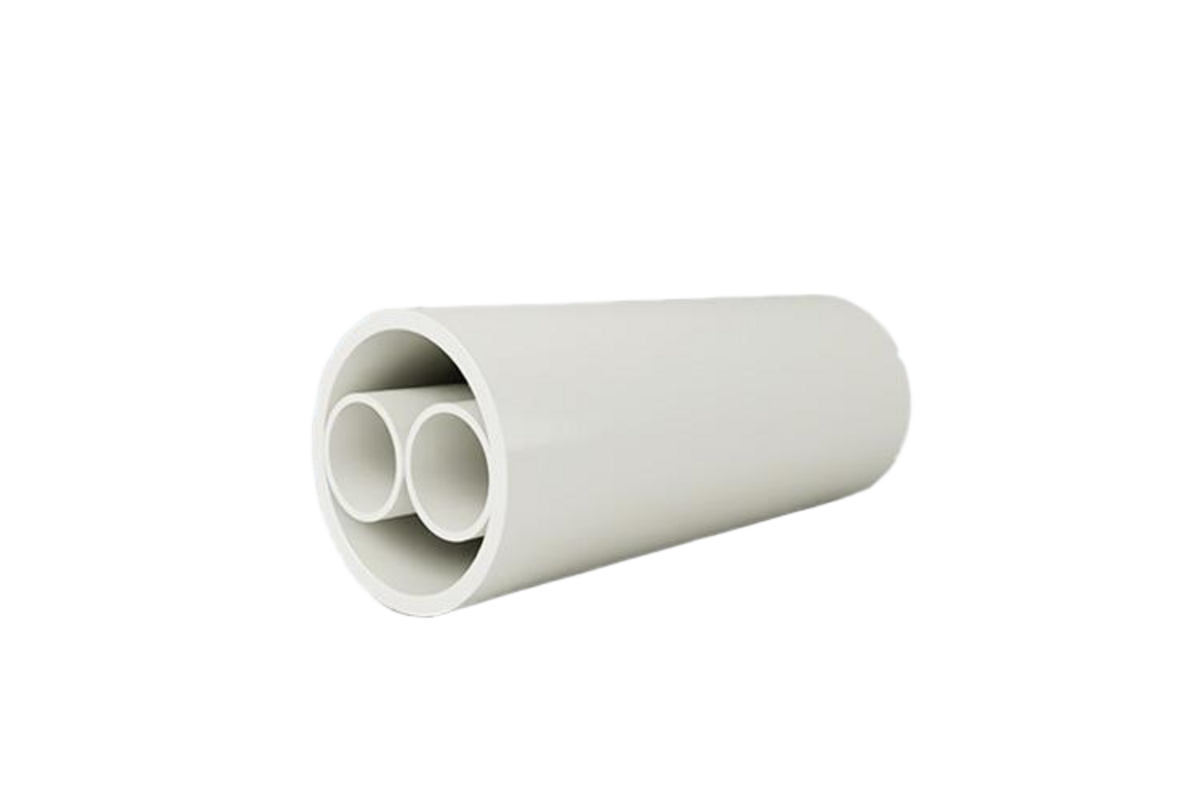

- PVC-U Drainage Pipe — Detail View

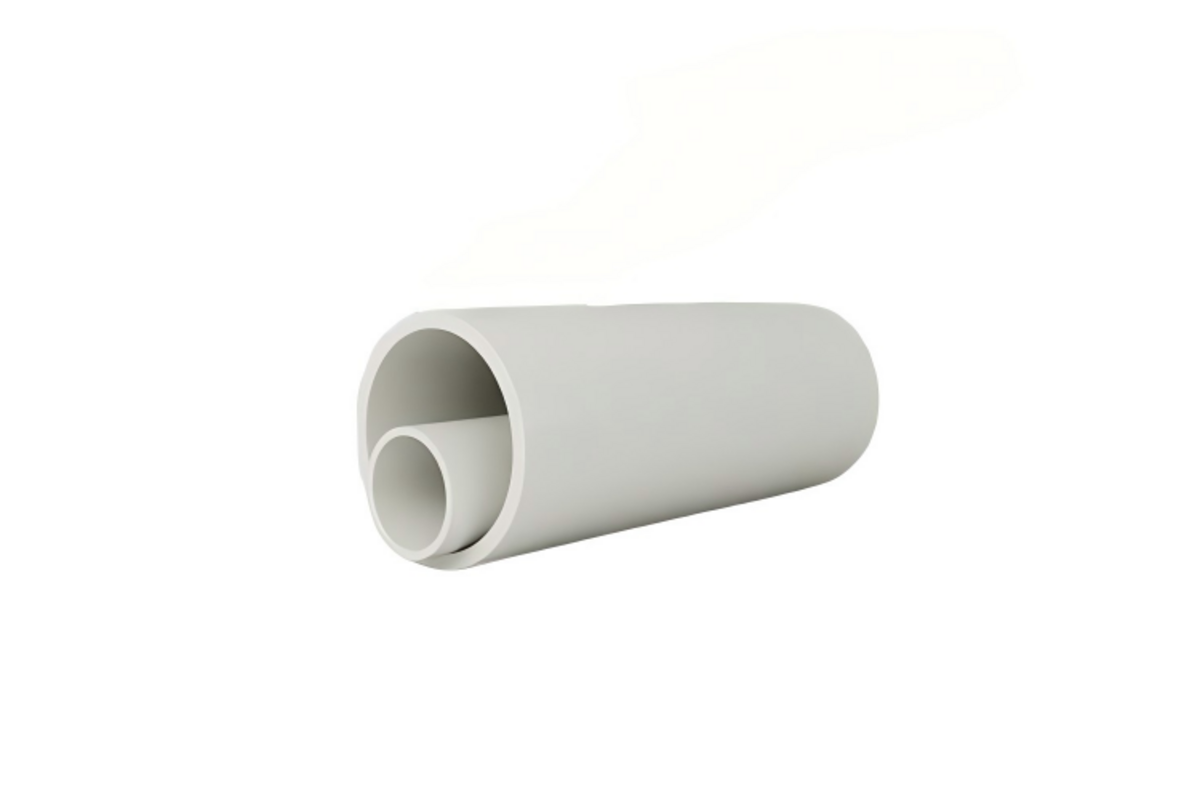

- PVC-U Stormwater & Sewer Pipe
- Raw Materials
- PVC-U lead-free compound
- Diameter Range
- DN20 – DN1000 mm
- Pressure Rating
- PN 6.3 – PN 25
- Standards
- EN 1401 / ISO 4435 / ASTM D3034
- Color
- Terracotta brown / grey
- Length
- 3 m / 6 m
- Joint Type
- Bell-and-spigot with rubber-ring elastomeric seal
- Applications
- Soil, waste, vent, stormwater, gravity sewer
Product Description
PVC-U Drainage Pipe is a non-pressure drainage pipe extruded from sanitary PVC compound for soil, waste, vent, storm and gravity sewers. It is light, easy to install, resists chemical attack from sewer gases and offers more than 50 years of low-maintenance service.
Advantages and Characteristics
1. Excellent chemical resistance to inorganic acids, alkalis and salts in domestic and industrial wastewater.
2. High surface hardness and impact strength for buried-pipe loading.
3. Service life over 50 years with stable creep and ageing performance.
4. Lightweight: 1/8 the weight of cast iron and 1/3 that of concrete.
5. Low installation cost: rubber-ring or solvent-weld socket joints, no welding equipment needed.
6. Smooth bore: low Manning coefficient, no scaling and constant capacity.
How It Compares
1. Material: PVC drainage uses polyvinyl chloride; HDPE drainage uses high-density polyethylene. Both are plastics with different chemistry.
2. Stiffness: PVC is more rigid; HDPE is more flexible and tolerates ground movement.
3. Temperature: PVC is for cold drainage; HDPE handles intermittent hot or cold service.
4. Cost: PVC is generally cheaper; HDPE costs more but lasts longer in dynamic conditions.
5. Joining: PVC uses rubber-ring or solvent welding; HDPE uses heat-fused joints.
6. Use: PVC dominates building drainage and gravity sewers; HDPE is preferred for pressurised and seismic-prone networks.
Datasheet
PVC-U Drainage Pipe — Dimensional Data
| DN (mm) | Size (in) | OD Tolerance (mm) | Socket Depth (mm) | PN 6.3Min Wall (mm) | PN 6.3Weight (kg/m) | PN 8Min Wall (mm) | PN 8Weight (kg/m) | PN 10Min Wall (mm) | PN 10Weight (kg/m) | PN 12.5Min Wall (mm) | PN 12.5Weight (kg/m) | PN 16Min Wall (mm) | PN 16Weight (kg/m) | PN 20Min Wall (mm) | PN 20Weight (kg/m) | PN 25Min Wall (mm) | PN 25Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 1/2" | 0.2 | — | 1.6 | 0.143 | 1.6 | 0.143 | 1.7 | 0.152 | 1.8 | 0.161 | 1.8 | 0.161 | 2.0 | 0.176 | 2.3 | 0.200 |
| 25 | 3/4" | 0.2 | — | 1.6 | 0.184 | 1.7 | 0.194 | 1.7 | 0.194 | 1.8 | 0.205 | 2.0 | 0.225 | 2.3 | 0.256 | 2.8 | 0.305 |
| 32 | 1" | 0.2 | — | 1.7 | 0.252 | 1.7 | 0.252 | 1.8 | 0.266 | 2.0 | 0.294 | 2.4 | 0.348 | 3.0 | 0.421 | 3.6 | 0.501 |
| 40 | 1 1/4" | 0.2 | — | 1.8 | 0.337 | 1.8 | 0.337 | 2.0 | 0.373 | 2.4 | 0.442 | 3.0 | 0.544 | 3.7 | 0.658 | 4.5 | 0.783 |
| 50 | 1 1/2" | 0.2 | 75 | 1.8 | 0.425 | 2.0 | 0.471 | 2.4 | 0.560 | 3.0 | 0.691 | 3.7 | 0.840 | 4.6 | 1.024 | 5.6 | 1.219 |
| 63 | 2" | 0.3 | 100 | 2.0 | 0.598 | 2.5 | 0.741 | 3.0 | 0.888 | 3.8 | 1.103 | 4.7 | 1.343 | 5.8 | 1.626 | 7.1 | 1.945 |
| 75 | 2 1/2" | 0.3 | 110 | 2.3 | 0.820 | 2.9 | 1.025 | 3.6 | 1.260 | 4.5 | 1.555 | 5.6 | 1.905 | 6.9 | 2.303 | 8.4 | 2.742 |
| 90 | 3" | 0.3 | 120 | 2.8 | 1.197 | 3.5 | 1.484 | 4.3 | 1.806 | 5.4 | 2.239 | 6.7 | 2.736 | 8.2 | 3.288 | 10.1 | 3.955 |
| 110 | 4" | 0.4 | 120 | 2.7 | 1.420 | 3.4 | 1.777 | 4.2 | 2.178 | 5.3 | 2.720 | 6.6 | 3.345 | 8.1 | 4.046 | 10.0 | 4.902 |
| 125 | 5" | 0.4 | 119 | 3.1 | 1.852 | 3.9 | 2.315 | 4.8 | 2.828 | 6.6 | 3.830 | 7.4 | 4.265 | 9.2 | 5.222 | 11.4 | 6.348 |
| 140 | 5 1/2" | 0.5 | 125 | 3.5 | 2.342 | 4.3 | 2.860 | 5.4 | 3.563 | 6.7 | 4.378 | 8.3 | 5.358 | 10.3 | 6.548 | 12.7 | 7.924 |
| 160 | 6" | 0.5 | 132 | 4.0 | 3.059 | 4.9 | 3.725 | 6.2 | 4.674 | 7.7 | 5.748 | 9.5 | 7.008 | 11.8 | 8.572 | 14.6 | 10.405 |
| 180 | 7" | 0.6 | 145 | 4.4 | 3.787 | 5.5 | 4.704 | 6.9 | 5.854 | 8.6 | 7.225 | 10.7 | 8.879 | 13.3 | 10.867 | 16.4 | 13.151 |
| 200 | 8" | 0.6 | 145 | 4.9 | 4.686 | 6.2 | 5.889 | 7.7 | 7.258 | 9.6 | 8.959 | 11.9 | 10.972 | 14.7 | 13.351 | 18.2 | 16.218 |
| 225 | 9" | 0.7 | 152 | 5.5 | 5.917 | 6.9 | 7.376 | 8.6 | 9.122 | 10.8 | 11.339 | 13.4 | 13.898 | 16.6 | 16.957 | — | — |
| 250 | 10" | 0.8 | 160 | 6.2 | 7.409 | 7.7 | 9.145 | 9.6 | 11.312 | 11.9 | 13.888 | 14.8 | 17.062 | 18.4 | 20.888 | — | — |
| 280 | 11" | 0.9 | 170 | 6.9 | 9.236 | 8.6 | 11.440 | 10.7 | 14.124 | 13.4 | 17.510 | 16.6 | 21.432 | 20.6 | 26.192 | — | — |
| 315 | 12" | 1.0 | 180 | 7.7 | 11.598 | 9.7 | 14.515 | 12.1 | 17.965 | 15.0 | 22.057 | 18.7 | 27.158 | 23.2 | 33.182 | — | — |
| 355 | 14" | 1.1 | 180 | 8.7 | 14.767 | 10.9 | 18.384 | 13.6 | 22.758 | 16.9 | 28.007 | 21.2 | 34.686 | 26.1 | 42.076 | — | — |
| 400 | 16" | 1.2 | 200 | 9.8 | 18.743 | 12.3 | 23.374 | 15.3 | 28.850 | 19.1 | 35.659 | 23.7 | 43.713 | 29.4 | 53.405 | — | — |
| 450 | 18" | 1.4 | 200 | 11.0 | 23.669 | 13.8 | 29.505 | 17.2 | 36.488 | 21.5 | 45.156 | 26.7 | 55.398 | 33.1 | 67.638 | — | — |
| 500 | 20" | 1.5 | 250 | 12.3 | 29.403 | 15.3 | 36.349 | 19.1 | 45.021 | 23.9 | 55.773 | 29.7 | 68.464 | 36.8 | 83.550 | — | — |
| 560 | 22" | 1.7 | 260 | 13.7 | 36.684 | 17.2 | 45.761 | 21.4 | 56.495 | 26.7 | 69.793 | — | — | — | — | — | — |
| 630 | 24" | 1.9 | 300 | 15.4 | 46.392 | 19.3 | 57.772 | 24.1 | 71.573 | 30.0 | 88.227 | — | — | — | — | — | — |
| 710 | 28" | 2.0 | — | 17.4 | 59.069 | 21.8 | 73.536 | — | — | — | — | — | — | — | — | — | — |
| 800 | 32" | 2.0 | — | 19.7 | 75.308 | 24.5 | 93.128 | — | — | — | — | — | — | — | — | — | — |
| 900 | 36" | 2.0 | — | 22.0 | 94.678 | 27.6 | 118.020 | — | — | — | — | — | — | — | — | — | — |
| 1000 | 40" | 2.0 | — | 24.5 | 117.145 | 30.6 | 145.397 | — | — | — | — | — | — | — | — | — | — |
