HDPE Pipes
HDPE ASTM Pipe
HDPE pipes manufactured to American standards — ASTM F714 / D3035 / D2513 / D3261 / F1055 — for the North American water, gas, mining and industrial markets. PE4710 / PE100 resin, IPS dimensions, full DR ratings from DR7 to DR32.5. NSF/ANSI 61 certified for drinking water.
- ASTM HDPE Water Pipe (PE4710 IPS)

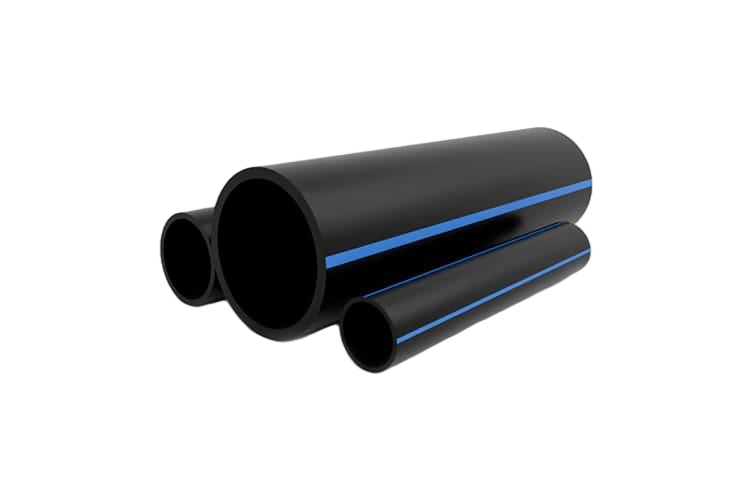

- ASTM-Compliant HDPE Pipe — Detail

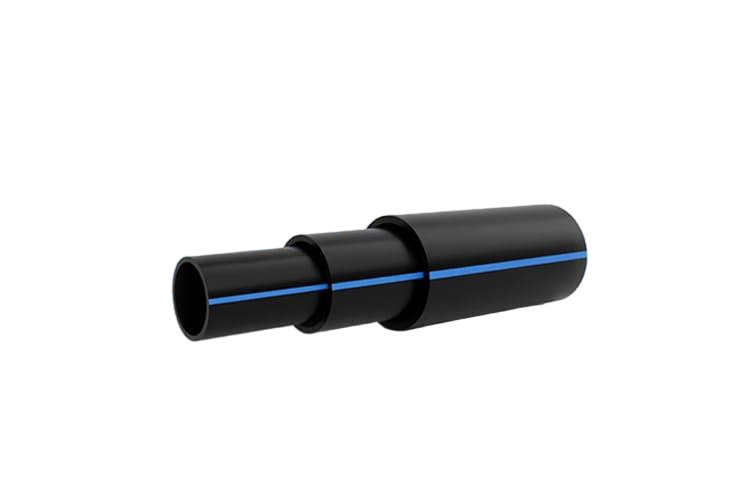

- HDPE Pipe Manufactured to ASTM F714
- Raw Materials
- PE4710 / PE100 from Borealis, SABIC
- Diameter Range
- 1/2" – 63" IPS (DN12 – DN1600 mm)
- Pressure Rating
- DR7 – DR32.5 (per ASTM F714)
- Standards
- ASTM F714 / D3035 / D2513 / D3261 / F1055 / AWWA C906
- Certificates
- NSF/ANSI 61, FM Approvals (on request)
- Color
- Black with blue stripes (water) / yellow stripes (gas) / red stripes (fire)
- Length
- 40 ft / 50 ft straight; coils up to 1000 ft for small DR
- Applications
- Municipal water, gas distribution, mining, fire mains, industrial
Product Description
HDPE ASTM Pipe is manufactured to ASTM F714 / D3035 IPS sizing in PE3408 / PE4710 grades, the de-facto standard for North-American water, gas, mining and industrial pipelines. Sizes 1-1/4" through 65", DR 7 to DR 32.5, supplied with butt-fusion or electrofusion joining options.
Advantages and Characteristics
1. PE4710 / PE3408 high-density resin, NSF/ANSI 61 listed for potable water in the US and Canada.
2. Full IPS dimensional range matched to ASTM fittings ecosystems.
3. Designed and tested to AWWA C901 / C906 hydrostatic requirements.
4. Suitable for direct burial, HDD, slip-lining and floating installations.
5. Low maintenance: zero corrosion-related repairs over a 50-year design life.
Typical Applications
1. AWWA-compliant municipal water mains.
2. Industrial process water and cooling lines.
3. Mining slurry and tailings transport (PE4710).
4. Geothermal heat-exchanger loops.
5. Brine, leachate and wastewater conveyance.
Datasheet
ASTM F714 — Dimensional Data (PE4710 IPS)
| IPS Size | OD (in) | DR 9 — Wall (in) | DR 11 — Wall (in) | DR 17 — Wall (in) | DR 21 — Wall (in) |
|---|---|---|---|---|---|
| 3/4 | 1.050 | 0.117 | 0.095 | — | — |
| 1 | 1.315 | 0.146 | 0.120 | — | — |
| 1 1/4 | 1.660 | 0.184 | 0.151 | — | — |
| 1 1/2 | 1.900 | 0.211 | 0.173 | — | — |
| 2 | 2.375 | 0.264 | 0.216 | 0.140 | 0.113 |
| 3 | 3.500 | 0.389 | 0.318 | 0.206 | 0.167 |
| 4 | 4.500 | 0.500 | 0.409 | 0.265 | 0.214 |
| 6 | 6.625 | 0.736 | 0.602 | 0.390 | 0.315 |
| 8 | 8.625 | 0.958 | 0.784 | 0.507 | 0.411 |
| 10 | 10.750 | 1.194 | 0.977 | 0.632 | 0.512 |
| 12 | 12.750 | 1.417 | 1.159 | 0.750 | 0.607 |
| 16 | 16.000 | 1.778 | 1.455 | 0.941 | 0.762 |
| 20 | 20.000 | 2.222 | 1.818 | 1.176 | 0.952 |
| 24 | 24.000 | 2.667 | 2.182 | 1.412 | 1.143 |
| 30 | 30.000 | — | 2.727 | 1.765 | 1.429 |
| 36 | 36.000 | — | 3.273 | 2.118 | 1.714 |
| 48 | 48.000 | — | — | 2.824 | 2.286 |
