PE100 HDPE Water Supply Pipe — Potable & Municipal Water
Primepoly PE100 HDPE water supply pipe for municipal potable water, drinking water mains and high-rise plumbing. WRAS / NSF 61 / ISO 4427 certified, sizes DN12 – DN2000, pressure ratings SDR41 – SDR7.4 (PN6 – PN25). Long coil rolls and straight 6/12 m lengths available — wholesale & OEM. Trusted by water projects across Africa, Southeast Asia and the Middle East.
- High-Pressure HDPE Water Supply Pipe

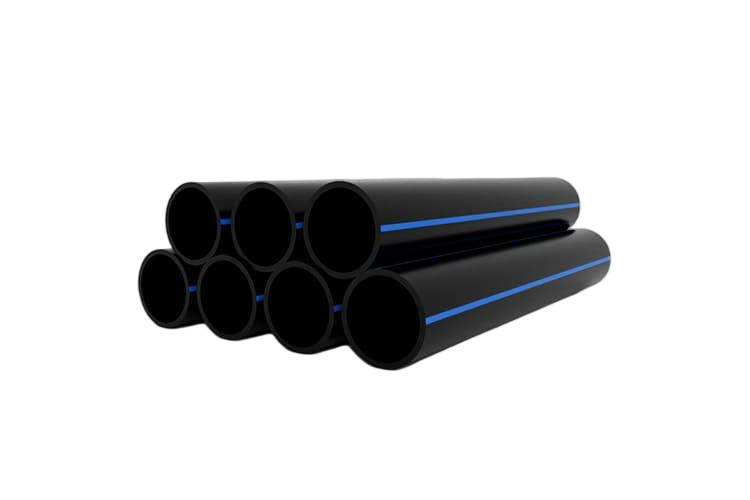

- WRAS-Certified HDPE Drinking Water Pipe
- PE100 Blue HDPE Water Supply Pipe

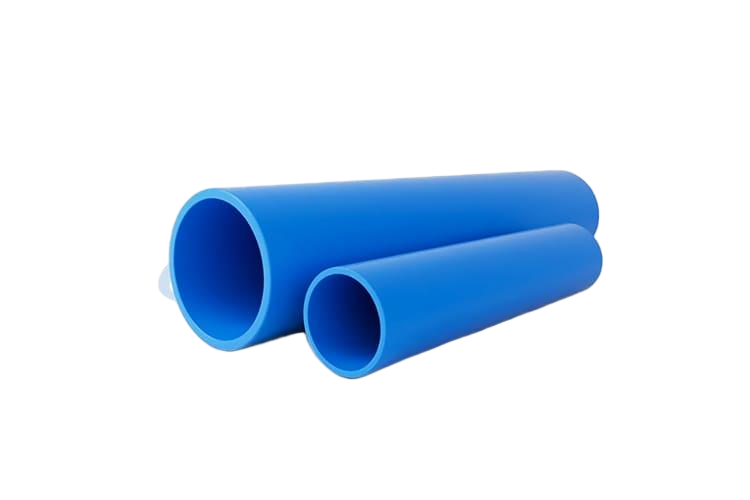

- HDPE Water Pipe — Detail View
- Raw Materials
- PE100 Blue from Borealis / SABIC
- Diameter Range
- DN12 mm – DN2000 mm
- Pressure Rating
- SDR41 – SDR7.4 (PN4 – PN25 bar)
- Standards
- ISO 4427 / EN 12201 / ASTM F714 / ASTM D3035
- Certificates
- UL, WRAS, NSF/ANSI 61, ISO 9001, CE
- Color
- Pure Blue (custom colors on request)
- Length
- 5.8–5.9 m/strip (20'GP) · 11.8–11.95 m/strip (40'HC)
- Coil Length
- 100 m / 150 m / 200 m coils
Product Description
HDPE Water Supply Pipe is a high-performance pressure pipe extruded from PE100 / PE100RC resin, certified for direct contact with potable water. It replaces traditional steel, ductile iron and cement pipes in municipal mains, urban distribution networks and high-rise risers, eliminating corrosion, scaling and leakage while delivering a service life of more than 50 years.
Advantages and Characteristics
1. Long service life: designed for 50+ years of continuous service under normal operating conditions.
2. Leak-free joints: butt-fusion and electrofusion produce monolithic joints that are stronger than the parent pipe.
3. Excellent corrosion resistance: immune to electrolytic, soil and chemical corrosion that plagues metal pipelines.
4. Hygienic and safe: WRAS, NSF/ANSI 61 and CE certified for potable water; smooth bore prevents biofilm and scale.
5. Lightweight and easy to install: about 1/8 the weight of equivalent ductile iron, dramatically lower transport and installation cost.
6. Good flexibility: bends to natural terrain without elbows, ideal for trenchless installation.
7. Low flow resistance: smooth inner wall reduces head loss, lowering pumping energy over the network's lifetime.
Typical Applications
1. Municipal potable-water trunk and distribution mains (DN63 – DN2000).
2. Rural and agricultural water supply networks.
3. Building-services risers and high-rise water distribution.
4. Pump stations, water-treatment plant interconnects and reservoir feeders.
5. Trenchless rehabilitation of ageing iron and cement mains by slip-lining or pipe-bursting.
Datasheet
ISO 4427 — Dimensional Data (PE100)
| Nominal SizeDN (mm) | SDR 7.4 / PN25Min Wall (mm) | SDR 9 / PN20Min Wall (mm) | SDR 11 / PN16Min Wall (mm) | SDR 13.6 / PN12.5Min Wall (mm) | SDR 17 / PN10Min Wall (mm) | SDR 26 / PN6Min Wall (mm) |
|---|---|---|---|---|---|---|
| 20 | 3.0 | 2.3 | — | — | — | — |
| 25 | 3.5 | 3.0 | 2.3 | — | — | — |
| 32 | 4.4 | 3.6 | 3.0 | 2.3 | — | — |
| 40 | 5.5 | 4.5 | 3.7 | 3.0 | 2.4 | — |
| 50 | 6.9 | 5.6 | 4.6 | 3.7 | 3.0 | 2.0 |
| 63 | 8.6 | 7.1 | 5.8 | 4.7 | 3.8 | 2.5 |
| 75 | 10.3 | 8.4 | 6.8 | 5.6 | 4.5 | 2.9 |
| 90 | 12.3 | 10.1 | 8.2 | 6.7 | 5.4 | 3.5 |
| 110 | 15.1 | 12.3 | 10.0 | 8.1 | 6.6 | 4.2 |
| 125 | 17.1 | 14.0 | 11.4 | 9.2 | 7.4 | 4.8 |
| 140 | 19.2 | 15.7 | 12.7 | 10.3 | 8.3 | 5.4 |
| 160 | 21.9 | 17.9 | 14.6 | 11.8 | 9.5 | 6.2 |
| 180 | 24.6 | 20.1 | 16.4 | 13.3 | 10.7 | 6.9 |
| 200 | 27.4 | 22.4 | 18.2 | 14.7 | 11.9 | 7.7 |
| 225 | 30.8 | 25.2 | 20.5 | 16.6 | 13.4 | 8.6 |
| 250 | 34.2 | 27.9 | 22.7 | 18.4 | 14.8 | 9.6 |
| 280 | 38.3 | 31.3 | 25.4 | 20.6 | 16.6 | 10.7 |
| 315 | 43.1 | 35.2 | 28.6 | 23.2 | 18.7 | 12.1 |
| 355 | 48.5 | 39.7 | 32.2 | 26.1 | 21.1 | 13.6 |
| 400 | 54.7 | 44.7 | 36.3 | 29.4 | 23.7 | 15.3 |
| 450 | 61.5 | 50.3 | 40.9 | 33.1 | 26.7 | 17.2 |
| 500 | 68.3 | 55.8 | 45.4 | 36.8 | 29.7 | 19.1 |
| 560 | 76.5 | 62.5 | 50.8 | 41.2 | 33.2 | 21.4 |
| 630 | 86.1 | 70.3 | 57.2 | 46.3 | 37.4 | 24.1 |
| 710 | — | 79.3 | 64.5 | 52.2 | 42.1 | 27.2 |
| 800 | — | 89.3 | 72.6 | 58.8 | 47.4 | 30.6 |
| 900 | — | — | 81.7 | 66.2 | 53.3 | 34.4 |
| 1000 | — | — | 90.2 | 73.5 | 59.3 | 38.2 |
| 1200 | — | — | — | 88.2 | 71.1 | 45.9 |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
PE100 HDPE Water Supply Pipe — Potable & Municipal Water — used in these projects
PE100 HDPE Water Supply Pipe — Potable & Municipal Water — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
