HDPE Pipes
HDPE Electrical Conduit
HDPE electrical conduit for underground power, telecommunications and fibre-optic cable protection. Available in solid colours, multi-colour identification stripes, pre-lubricated silicon-core (PLB) for high-speed cable jetting, and long-length coils for trenchless installation. Sizes DN16 – DN200, suited to both direct-buried and duct-bank applications.
- Black HDPE Electrical Conduit with Blue Stripe

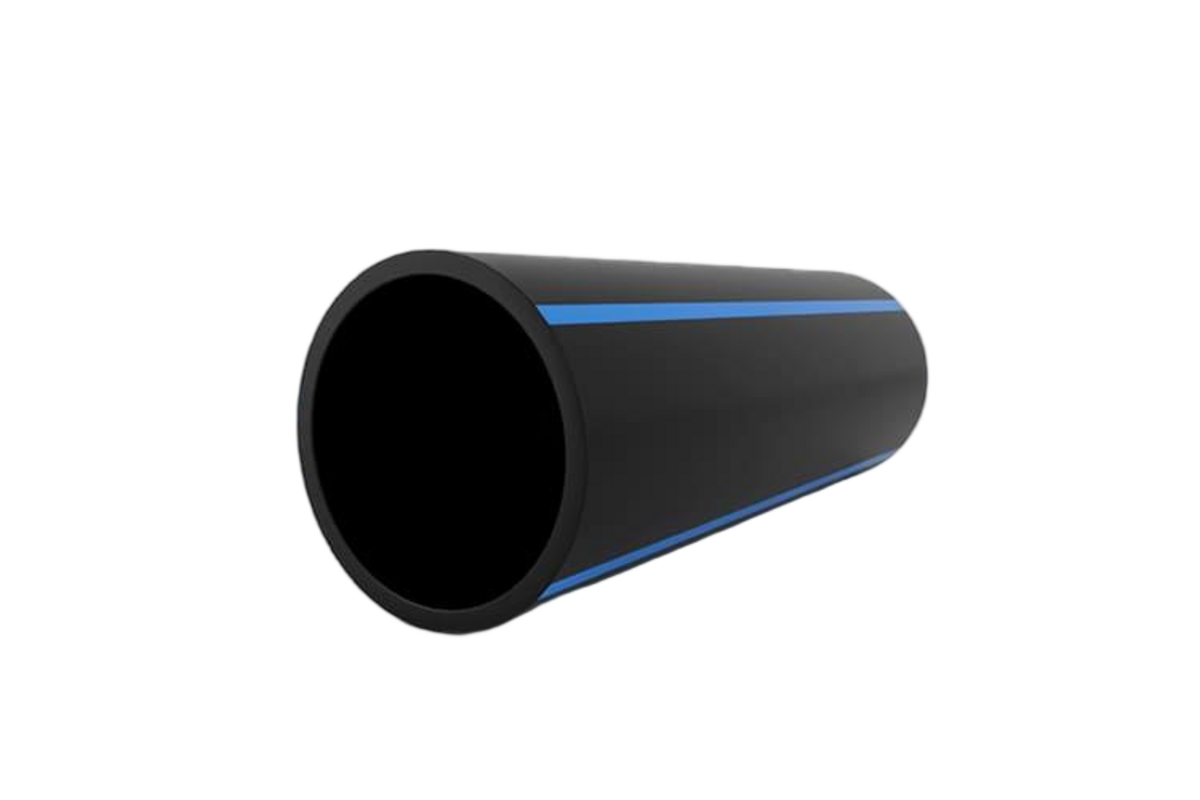

- HDPE Electrical Conduit — Identification Stripe

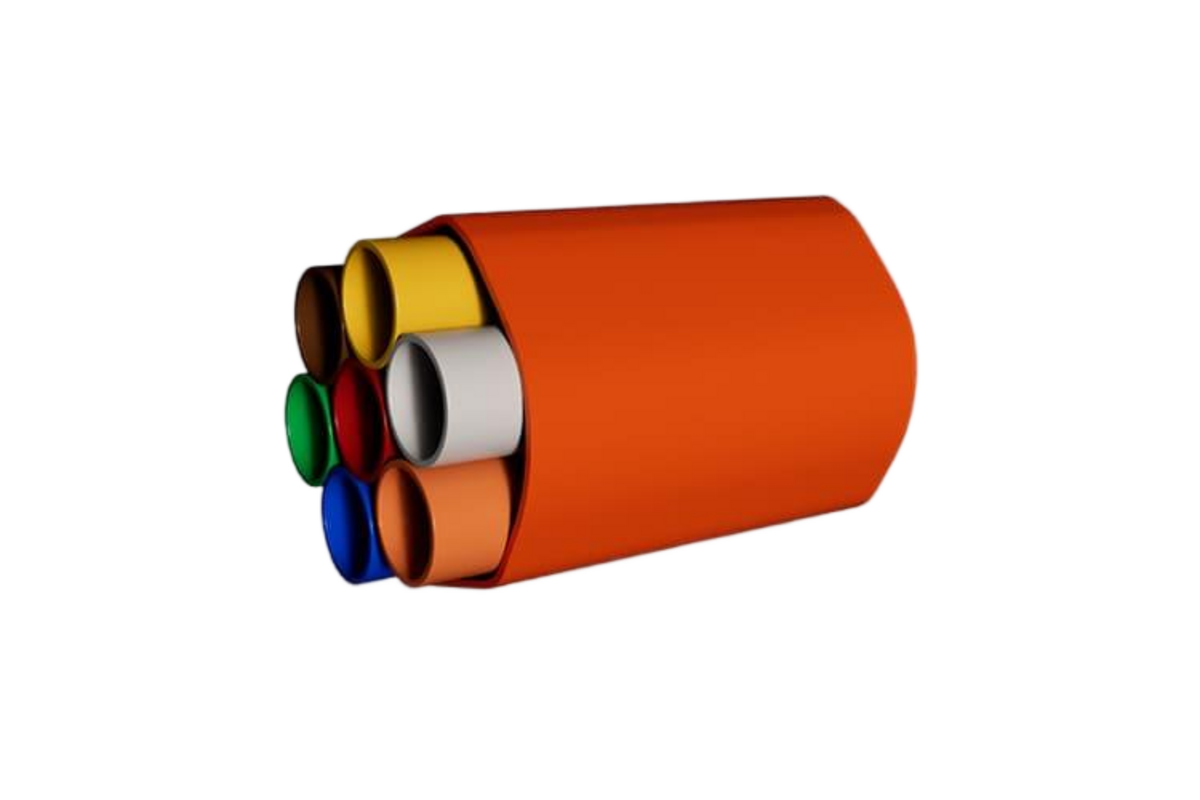

- Colour-Coded HDPE Electrical Conduit

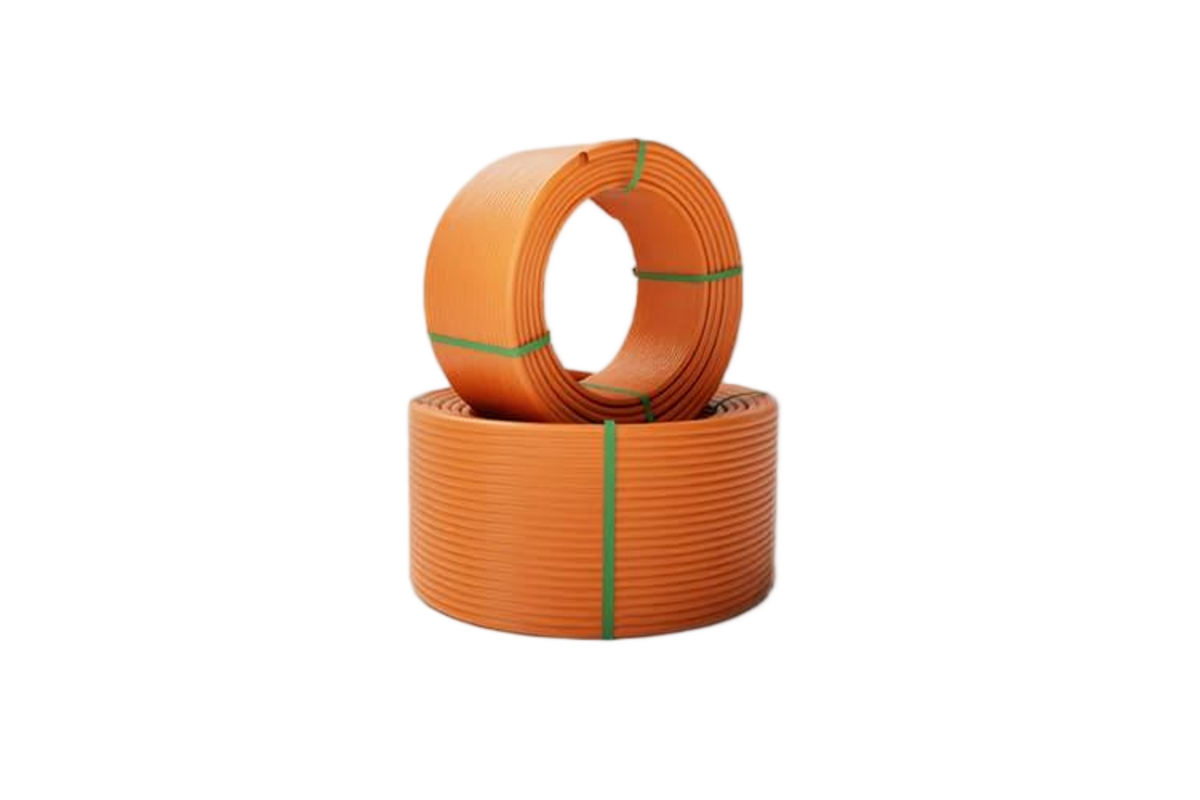

- HDPE Electrical Conduit Long-Length Coil

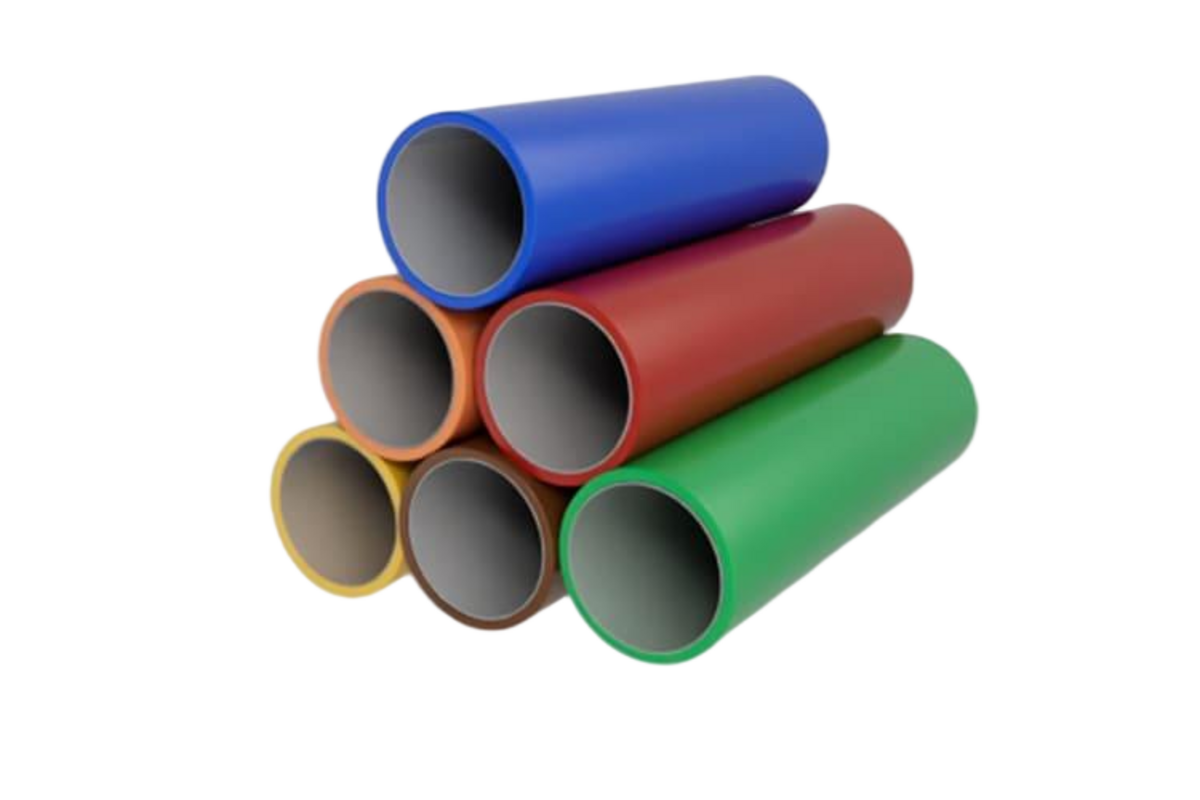

- Silicon-Core HDPE Conduit (PLB Duct)
- Raw Materials
- PE100 / PE100RC from Borealis, SABIC, Sinopec, PetroChina
- Diameter Range
- DN/OD 20 – 315 mm (1/2" – 12"); silicon-core: ⌀ 32 – 200 mm
- Pressure Rating
- SDR33 (PN5) – SDR11 (PN16)
- Standards
- ISO 4427 / IEC 61386
- Certificates
- UL, CE, ISO 9001
- Color
- Black with multi-color identification stripes / custom solid
- Length
- 5.8 m / 11.8 m straight; 100 – 300 m coils
- Applications
- Direct-buried power, telecoms, fibre-optic; PLB silicon-core for high-speed cable jetting
Product Description
HDPE Electrical Conduit (also called silicon-core conduit / PLB / SIRTI) is a smooth-bore HDPE pipe used as the protective sleeve for buried power, telecoms and fibre-optic cables. Pre-lubricated inner walls allow rapid blowing or pulling of cables over kilometres in a single section.
Advantages and Characteristics
1. Pre-lubricated silicone inner skin: friction coefficient < 0.06, allowing cable blowing of 2 km+ in one shot.
2. Identifiable colour-coding (orange / red / green) for power, telecom and fibre segregation.
3. Coiled lengths up to 1000 m drastically reduce joints and field labour.
4. Crush- and impact-resistant for direct burial under roadway loading.
5. UV stabilised black or coloured for short-term above-ground transitions.
Typical Applications
1. Buried medium-voltage and low-voltage power cable protection.
2. Long-haul fibre-optic backbone, mobile-network backhaul and FTTH.
3. Highway, rail and airport telecommunication ducts.
4. Smart-grid and substation control-cable conduits.
5. Stadium, campus and industrial-park communications networks.
Datasheet
Silicon-Core Conduit (PLB) — Dimensional Data
| Size (mm) | Nominal OD (mm) | Min Inner ⌀ (mm) | Wall (mm) | Coil Length (m) |
|---|---|---|---|---|
| ⌀ 32/26 | 32 | 26 | 2.5 | 3000 |
| ⌀ 34/28 | 34 | 28 | 3.0 | 3000 |
| ⌀ 40/33 | 40 | 33 | 3.5 | 2000 |
| ⌀ 46/38 | 46 | 38 | 4.0 | 1500 |
| ⌀ 50/41 | 50 | 41 | 4.5 | 1500 |
| ⌀ 63/54 | 63 | 54 | 5.0 | 1000 |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
HDPE Electrical Conduit — used in these projects
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
