PVC Pipes
PVC Flexible Metallic Conduit
PVC-coated flexible metallic conduit with hot-dipped galvanised steel inner layer and anti-UV PVC outer jacket — for robotics, aerospace, high-speed rail, subway, shipbuilding and industrial automation cable protection. Working temperature −10 °C to +80 °C. RoHS / CE / FV-0 certified. Sizes φ6 – φ150 (3/16" – 6"), black and grey.
- PVC Flexible Metallic Conduit — Black & Grey, φ6 – φ150 | Primepoly

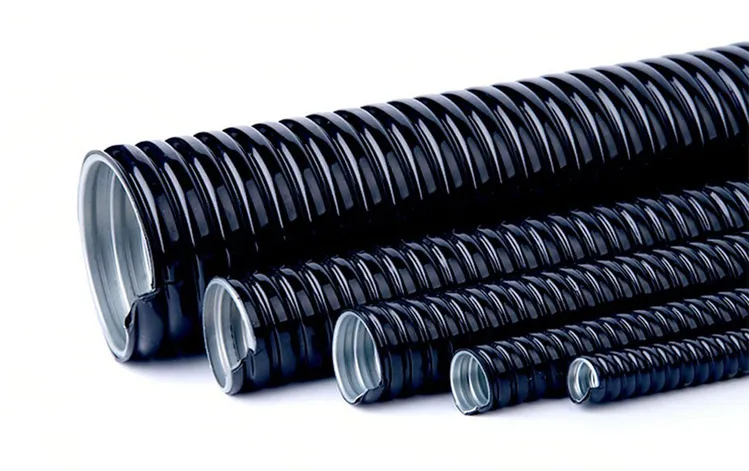

- PVC Flexible Metallic Conduit — Square-Locked Structure | Primepoly

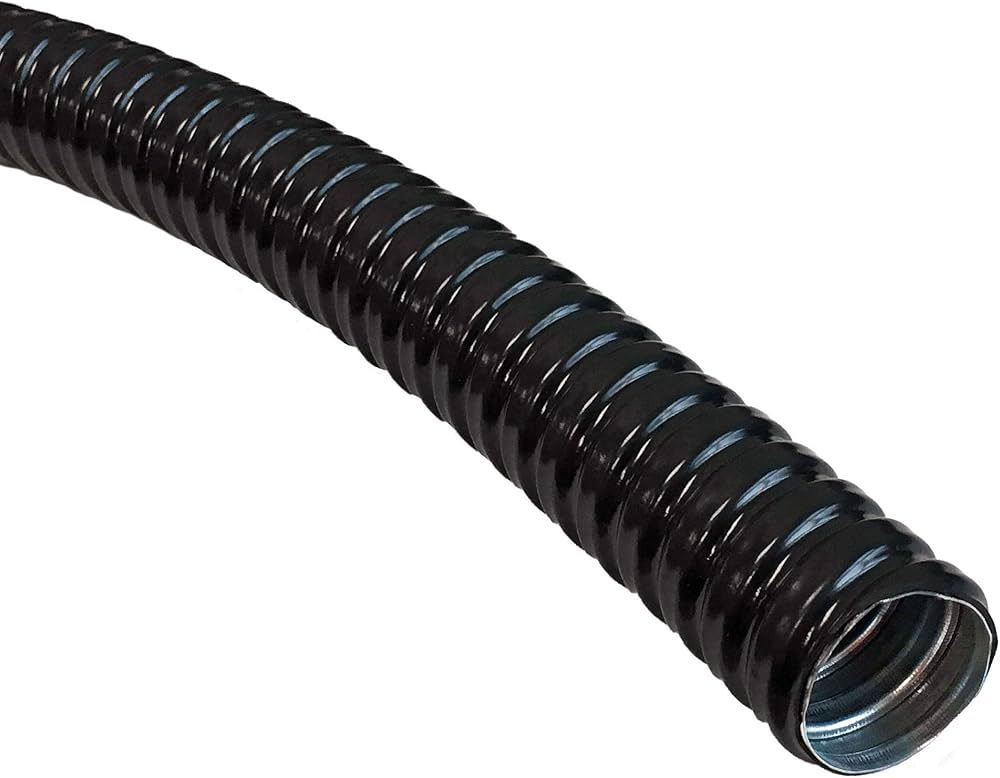

- PVC Flexible Metallic Conduit — PVC-Coated Galvanised Steel | Primepoly
- Raw Materials
- Inner: hot-dipped galvanised steel band (anti-corrosion); outer: anti-UV / anti-aging PVC
- Diameter Range
- φ6 – φ150 (3/16" – 6")
- Operating Temperature
- −10 °C to +80 °C; instantaneous +100 °C (custom high/low-temp grades on request)
- Certificates
- RoHS / CE / FV-0 flame retardant (customisable)
- Color
- Black, Grey
- Applications
- Robotics, aerospace, power generation, high-speed rail & subway, railway equipment, shipbuilding, chemical industry, communication systems, industrial automation, machine tools, lighting, indoor / outdoor wire & cable protection
Datasheet
PVC Flexible Metallic Conduit — Dimensional Data
| Order No. (Black) | Order No. (Grey) | Metric | G-System | Outer Diameter (mm) | Natural Curve (mm) | Max Axial Pull (N) | Packaging (m/box) |
|---|---|---|---|---|---|---|---|
| LNE-JSB-6B | LNE-JSB-6G | φ6 | 3/16" | 8.8 ± 0.5 | 40.0 | 305 | 200 |
| LNE-JSB-8B | LNE-JSB-8G | φ8 | 1/4" | 10.3 ± 0.5 | 45.0 | 425 | 100 |
| LNE-JSB-10B | LNE-JSB-10G | φ10 | 5/16" | 13.0 ± 0.4 | 55.0 | 530 | 100 |
| LNE-JSB-13B | LNE-JSB-13G | φ13 | 3/8" | 16.2 ± 0.4 | 65.0 | 690 | 100 |
| LNE-JSB-16B | LNE-JSB-16G | φ16 | 1/2" | 19.8 ± 0.4 | 85.0 | 845 | 100 |
| LNE-JSB-20B | LNE-JSB-20G | φ20 | 3/4" | 23.9 ± 0.5 | 100.0 | 1065 | 50 |
| LNE-JSB-25B | LNE-JSB-25G | φ25 | 1" | 29.1 ± 0.5 | 120.0 | 1305 | 50 |
| LNE-JSB-32B | LNE-JSB-32G | φ32 | 1 1/4" | 37.4 ± 0.5 | 150.0 | 1700 | 25 |
| LNE-JSB-38B | LNE-JSB-38G | φ38 | 1 1/2" | 44.2 ± 0.6 | 180.0 | 2015 | 25 |
| LNE-JSB-51B | LNE-JSB-51G | φ51 | 2" | 57.8 ± 0.7 | 220.0 | 2700 | 20 |
| LNE-JSB-64B | LNE-JSB-64G | φ64 | 2 1/2" | 71.2 ± 1.0 | 310.0 | 3395 | 20 |
| LNE-JSB-75B | LNE-JSB-75G | φ75 | 3" | 86.8 ± 1.0 | 350.0 | 3960 | 20 |
| LNE-JSB-100B | LNE-JSB-100G | φ100 | 4" | 109.6 ± 2.0 | 410.0 | 4230 | 10 |
| LNE-JSB-125B | LNE-JSB-125G | φ125 | 5" | 137.5 ± 2.0 | 460.0 | — | 5 |
| LNE-JSB-150B | LNE-JSB-150G | φ150 | 6" | 162.2 ± 2.0 | 500.0 | — | 5 |
