Electrofusion Welding Machine
Automatic multi-function electrofusion welding units for jointing PE and PP pipes through electrofusion fittings. Barcode scanner reads each fitting's welding parameters; the machine then regulates output voltage and timing with energy-output compensation for ambient temperature, ensuring repeatable, certified joints. Suitable for trenchless installations, gas networks where butt fusion is impractical, and remote service connections.
- Automatic Electrofusion Welding Machine DRB500E

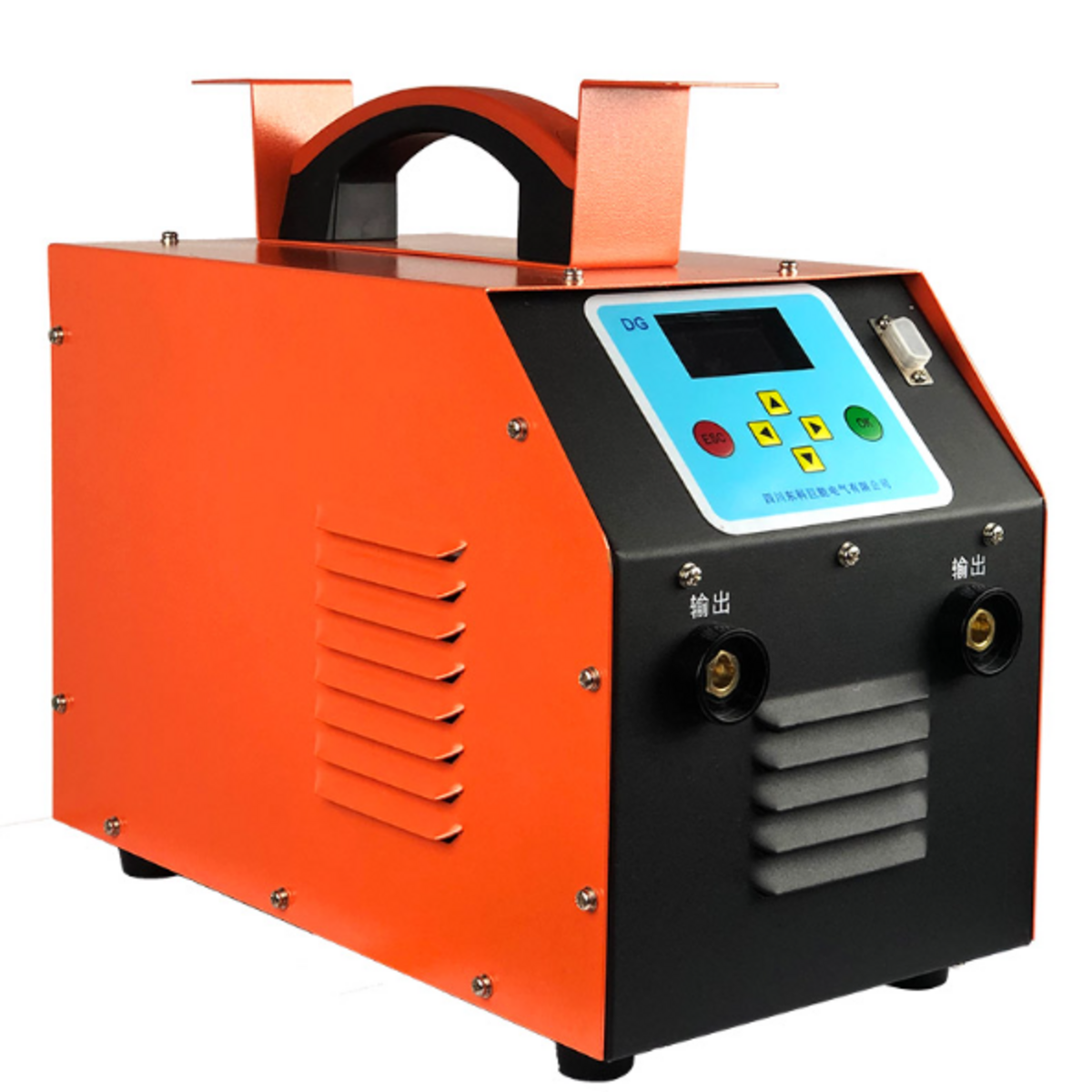

- Electrofusion Welder — Front Panel

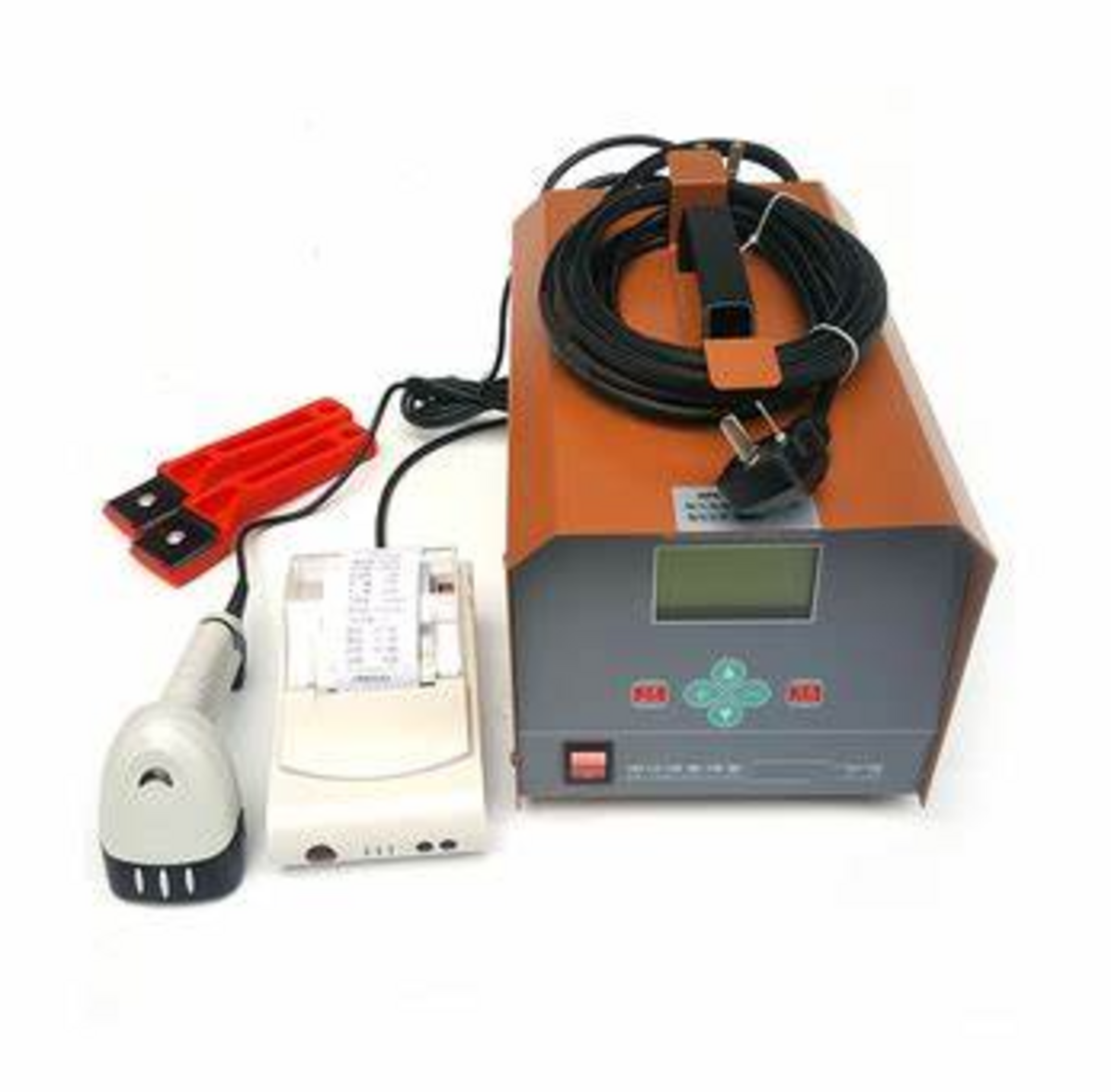

- Electrofusion Welder Detail View

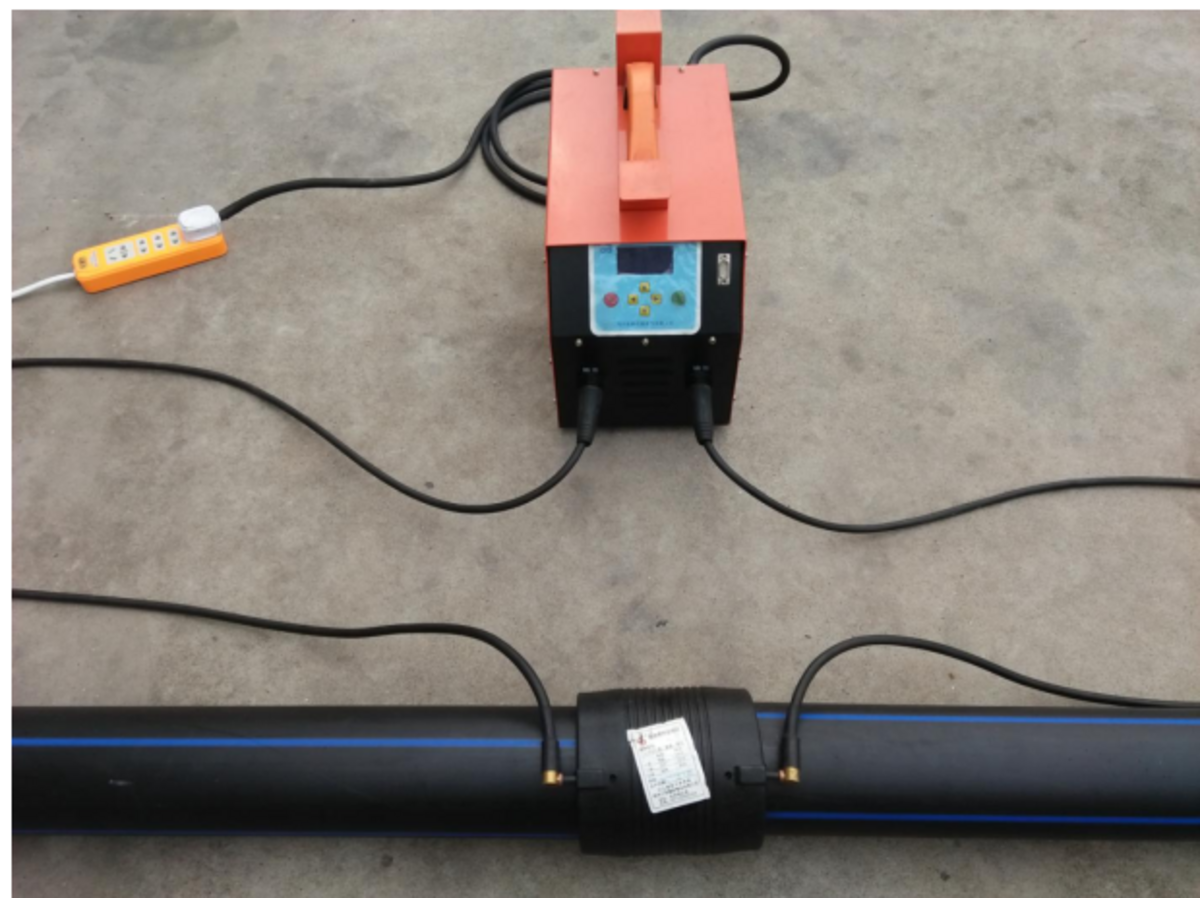

- Electrofusion Welding On-site Application
- Diameter Range
- DN20 – DN500 mm (DRB500E flagship model)
- Standards
- ISO 12176-2 / DVS 2207-1 (electrofusion procedures)
- Applications
- Gas networks, trenchless installations, service connections, repair joints
Product Description
The Electrofusion Welding Machine drives current through embedded heating coils inside electrofusion fittings to fuse them onto HDPE pipe. It is the joining method of choice for confined trenches, gas networks and field repairs where butt-fusion clamps cannot fit.
Advantages and Characteristics
1. Barcode reader auto-loads each fitting's voltage / time profile — operator only confirms.
2. Energy compensation for ambient temperature ensures uniform fusion in winter and summer.
3. Datalogger stores every weld with operator ID, fitting code and ambient temp for traceability.
4. Output up to 110 V / 800 A covers fittings from DN20 saddle to DN800 coupler.
5. Compact, generator-compatible — designed for field use in remote locations.
Typical Applications
1. Gas-distribution joints inside narrow urban trenches.
2. Trenchless rehabilitation projects (relining).
3. Service connections between mains and building meters.
4. Branch saddles tapped onto live mains.
5. Marine and submerged pipe joining where dry working space is unavailable.
Datasheet
ISO 4427 — Dimensional Data (PE100)
| Specification | Value |
|---|---|
| Model Number | DRB500E |
| Fusion Range | 20 – 500 mm |
| Material Applicable | PE & PP |
| Output Voltage | 8 – 48 V (auto-adjusting) |
| Input Voltage | 220 V |
| Frequency | 50 / 60 Hz |
| Max Current | 120 A |
| Output Power | ≤ 5,000 VA |
| Data Input | Barcode scanner / manual |
| Memory | 1,000+ joint records, USB export |
| Operating Temp. | −10 °C to +50 °C |
| Protection Class | IP54 |
| Weight | ≈ 22 kg |
