HDPE Pipes
HDPE Dredging Pipe — Sand, Mud & Slurry Pipeline
HDPE dredging pipelines for sand, mud and slurry transport over long distances. Lightweight, abrasion-resistant pipe sections delivered with pre-installed steel flanges for fast field connection. Buoyant HDPE pipe for floating dredger lines, plus heavy-wall HDPE slurry pipe for bottom-laid sections. Custom OD up to DN2000.
- HDPE Dredging Pipe with Steel Flanges

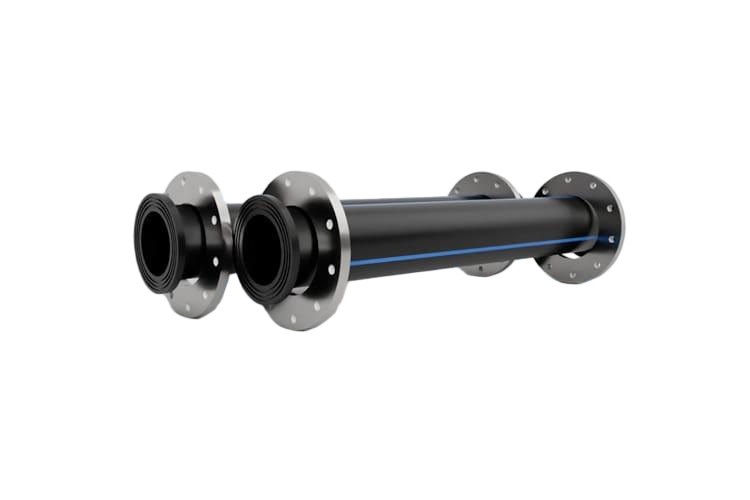

- Flanged HDPE Dredging Pipe — Detail

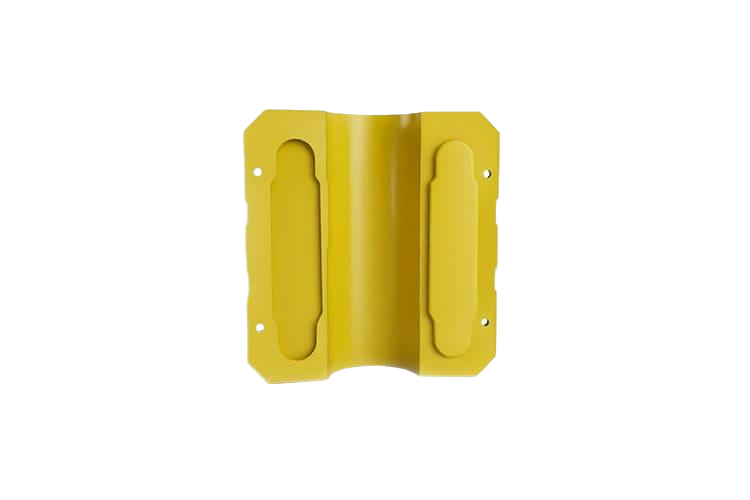

- HDPE Float Pontoon for Floating Dredge Line
- Raw Materials
- PE100 / PE100RC / PE4710 from Borealis, SABIC, Sinopec, PetroChina
- Diameter Range
- DN75 – DN1600 mm (2 1/2" – 64", customised on request)
- Pressure Rating
- SDR17 – SDR7.4 (PN10 – PN25)
- Standards
- ISO 4427 / EN 12201 / ASTM F714 / AWWA C906 / AS/NZS 4130
- Certificates
- WRAS, UL, NSF/ANSI 61, CE, ISO 9001 / 14001 / 45001
- Color
- Black, blue or white; HDPE pontoon floaters in safety yellow / orange
- Joint Type
- Stub-end + steel backing flange (CS / SS304 / SS316)
- Applications
- River dredging, sand mining, port maintenance, land reclamation
Product Description
HDPE Dredging Pipe is used to transport sand, mud, gravel and slurry over long distances during dredging operations. It is far lighter than steel, easy to relocate as the dredge advances, and resistant to abrasion from solids and chemical attack from saline or contaminated water.
Advantages and Characteristics
1. Lightweight: about 1/8 the weight of steel pipe of equivalent size, drastically lower handling cost.
2. Floating capability: HDPE pontoon floaters in safety yellow or orange let pipes span open water without barges.
3. Strong abrasion resistance: thick-wall PE100 / PE4710 stands up to silica sand and gravel for years of service.
4. Long single-strip lengths: 11.8 m strips and butt-fusion joints minimise field welds and maintenance points.
5. Quick-couple flange ends: ductile-iron backing rings and stub-end flanges allow rapid connection and dismantling between sections.
6. Saltwater resistant: immune to galvanic corrosion in marine environments.
Typical Applications
1. Harbour and channel deepening — discharge lines from cutter-suction dredgers.
2. Land reclamation projects: pumping sand fill from offshore borrow pits.
3. River and lake desilting and ecological restoration.
4. Sand and gravel washing plants — tailings discharge.
5. Mining tailings disposal where lightweight, relocatable lines are required.
Datasheet
PE100 Dredging Pipe — Min Wall Thickness by SDR (mm)
| Nominal SizeDN (mm) | SDR 7.4 / PN25Min Wall (mm) | SDR 9 / PN20Min Wall (mm) | SDR 11 / PN16Min Wall (mm) | SDR 13.6 / PN12.5Min Wall (mm) | SDR 17 / PN10Min Wall (mm) | SDR 21 / PN8Min Wall (mm) | SDR 26 / PN6Min Wall (mm) | SDR 33 / PN5Min Wall (mm) |
|---|---|---|---|---|---|---|---|---|
| 75 | 10.3 | 8.4 | 6.8 | 5.6 | 4.5 | 3.6 | 2.9 | — |
| 90 | 12.3 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | 3.5 | — |
| 110 | 15.1 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 | — |
| 125 | 17.1 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 | — |
| 140 | 19.2 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | — |
| 160 | 21.9 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | — |
| 180 | 24.6 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | — |
| 200 | 27.4 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | — |
| 225 | 30.8 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | — |
| 250 | 34.2 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | — |
| 280 | 38.3 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | — |
| 315 | 43.1 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 | 9.7 |
| 355 | 48.5 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 10.9 |
| 400 | 54.7 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 12.3 |
| 450 | 61.5 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 13.8 |
| 500 | — | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 15.3 |
| 560 | — | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 17.2 |
| 630 | — | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 | 19.3 |
| 710 | — | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 21.8 |
| 800 | — | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 | 24.5 |
| 900 | — | — | 81.7 | 66.1 | 53.3 | 42.9 | 34.4 | 27.6 |
| 1000 | — | — | 90.2 | 73.5 | 59.3 | 47.7 | 38.2 | 30.6 |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
HDPE Dredging Pipe — Sand, Mud & Slurry Pipeline — used in these projects
HDPE Dredging Pipe — Sand, Mud & Slurry Pipeline — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
