PVC Pipes
PVC Industrial Pipe — Schedule 40/80 Chemical & Wastewater
PVC industrial pipe for chemical processing, plating and electroplating lines, food & beverage process water, swimming-pool and water-treatment circulation. Schedule 40 / Schedule 80 PVC and CPVC, in solvent-weld socket or threaded ends. Corrosion-resistant PVC pressure pipe for industrial wastewater, sewage and chemical industry use — sizes 1/2" to 24".
- PVC Industrial Process Pipe

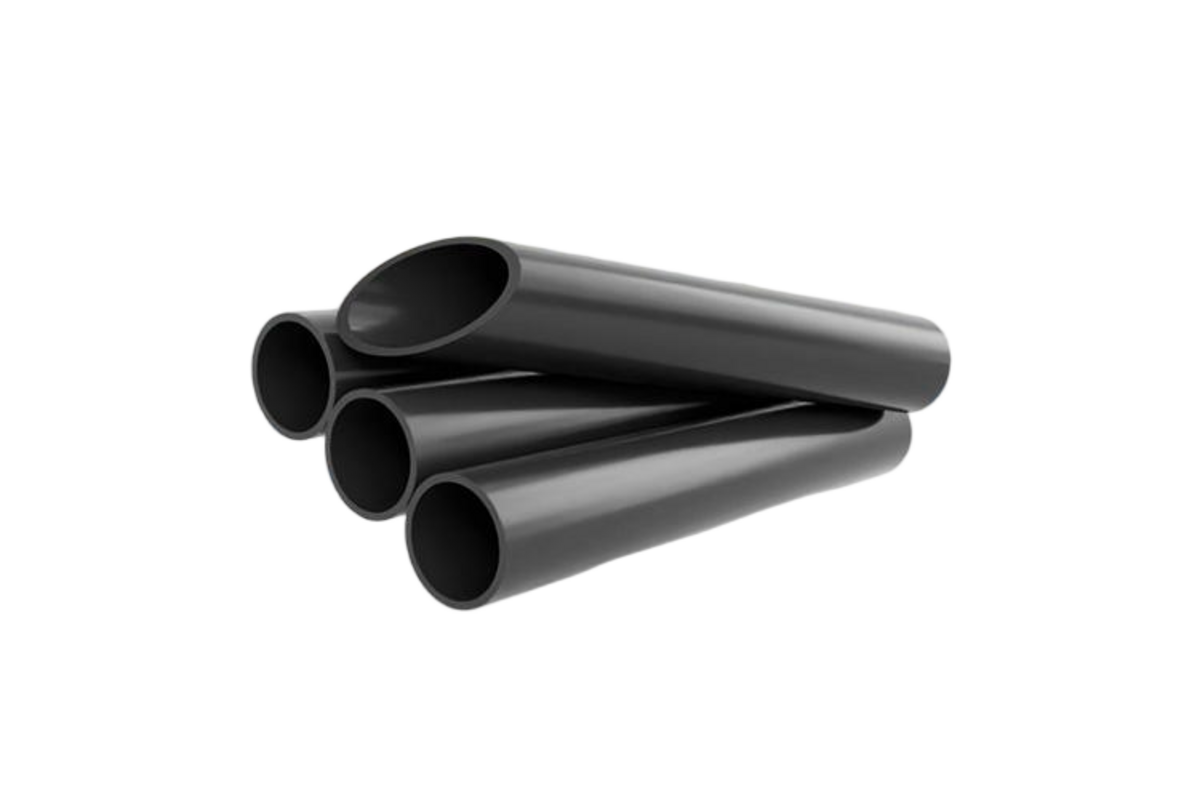

- PVC Pipe for Chemical & Process Service

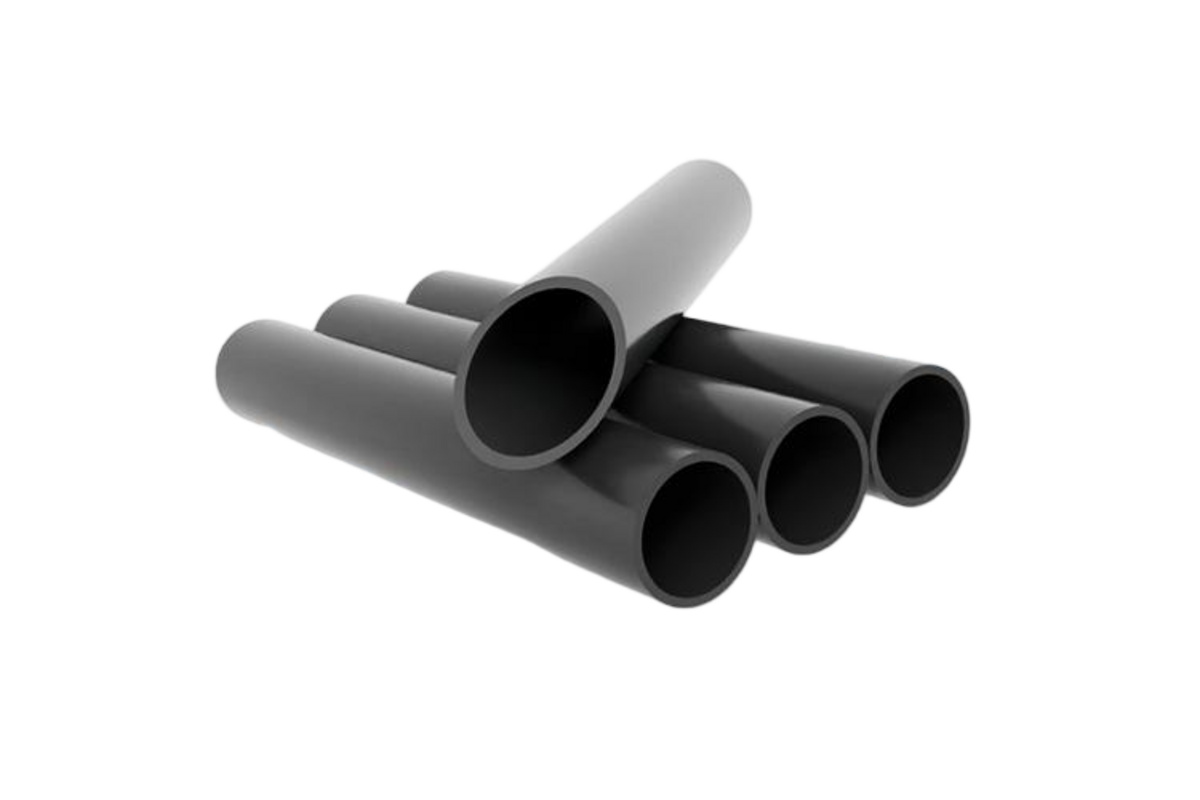

- PVC Industrial Pipe — Detail

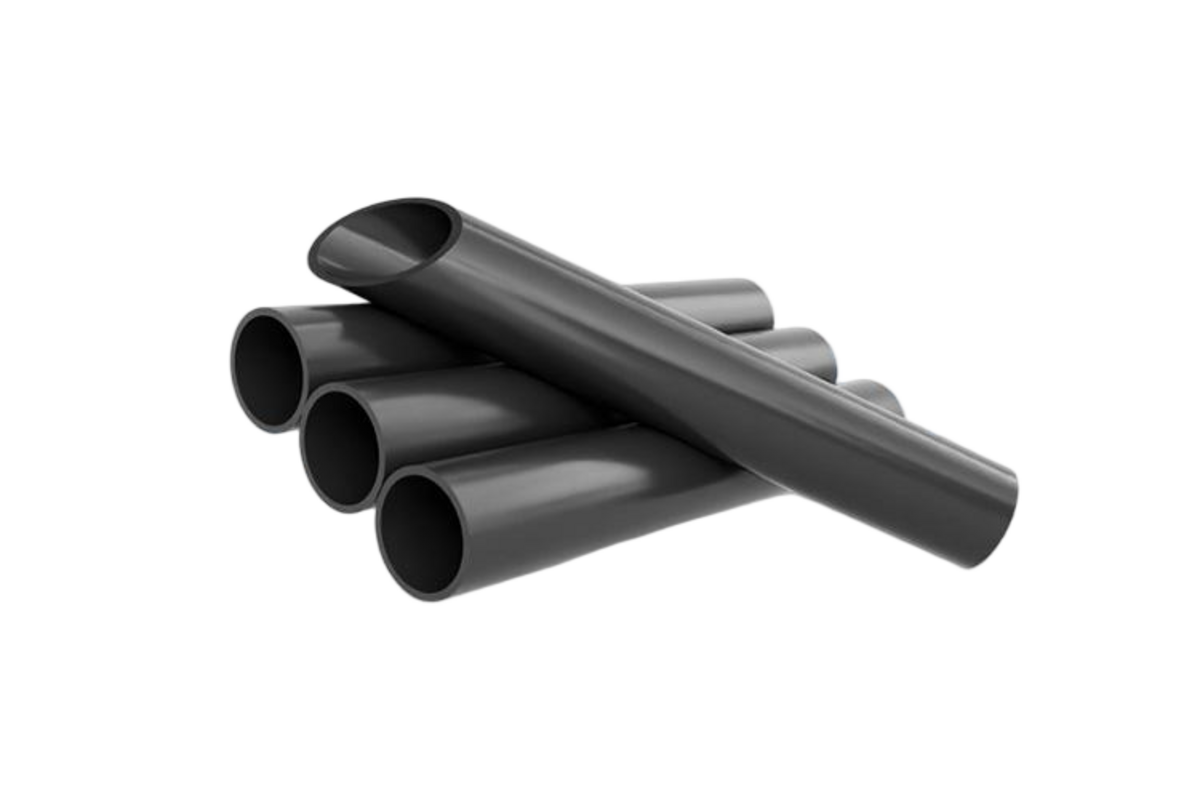

- Schedule 40 / 80 PVC Industrial Pipe
- Raw Materials
- PVC-U / CPVC industrial-grade compound
- Diameter Range
- 1/2" – 24" Sch 40 / 80; DN20 – DN600 metric
- Pressure Rating
- Schedule 40 / 80 per ASTM D1785; PN6–PN16 metric
- Standards
- ASTM D1785 / D2467 / ISO 1452
- Color
- Grey (PVC-U) · Beige (CPVC)
- Operating Temperature
- PVC: 0 – 60 °C / CPVC: -20 – 95 °C
- Applications
- Chemical transport, electroplating effluent, wastewater treatment, deionised water, industrial process water
Product Description
PVC Industrial Pipe is a chemical-resistant pressure pipe used to convey acids, alkalis and process fluids in chemical, plating and food-grade applications. Schedule 40 / 80 dimensions to ASTM D1785 give predictable hydraulic and structural performance, with CPVC variants available for higher-temperature service.
Advantages and Characteristics
1. Excellent resistance to inorganic acids, alkalis and oxidising solutions across a wide pH range.
2. Solvent-weld socket joints achieve quick, leak-tight assembly without specialised equipment.
3. Smooth bore reduces head loss and prevents scaling in process loops.
4. Schedule 40 and Schedule 80 wall classes give pressure choices to match the duty.
5. CPVC alternative available for service to 95 °C.
Typical Applications
1. Acid and alkali handling lines in chemical processing.
2. Plating and electroplating bath piping and rinse circuits.
3. Food and beverage process water and chemical-cleaning lines.
4. Swimming-pool and water-treatment circulation.
5. Laboratory and pilot-plant utility piping.
Datasheet
PVC Industrial Pipe — Schedule 40 / 80
| Pipe Size (in) | O.D. (in) | Sch 40 — Avg I.D. (in) | Sch 40 — Min. Wall (in) | Sch 80 — Avg I.D. (in) | Sch 80 — Min. Wall (in) |
|---|---|---|---|---|---|
| 1/4 | 0.540 | 0.344 | 0.088 | 0.282 | 0.119 |
| 3/8 | 0.675 | 0.473 | 0.091 | 0.403 | 0.126 |
| 1/2 | 0.840 | 0.602 | 0.109 | 0.526 | 0.147 |
| 3/4 | 1.050 | 0.804 | 0.113 | 0.722 | 0.154 |
| 1 | 1.315 | 1.029 | 0.133 | 0.936 | 0.179 |
| 1 1/4 | 1.660 | 1.360 | 0.140 | 1.255 | 0.191 |
| 1 1/2 | 1.900 | 1.590 | 0.145 | 1.476 | 0.200 |
| 2 | 2.375 | 2.047 | 0.154 | 1.913 | 0.218 |
| 2 1/2 | 2.875 | 2.445 | 0.203 | 2.290 | 0.276 |
| 3 | 3.500 | 3.042 | 0.216 | 2.864 | 0.300 |
| 3 1/2 | 4.000 | 3.521 | 0.226 | 3.326 | 0.318 |
| 4 | 4.500 | 3.998 | 0.237 | 3.786 | 0.337 |
| 5 | 5.563 | 5.016 | 0.258 | 4.768 | 0.375 |
| 6 | 6.625 | 6.031 | 0.280 | 5.709 | 0.432 |
| 8 | 8.625 | 7.942 | 0.322 | 7.565 | 0.500 |
| 10 | 10.750 | 9.976 | 0.365 | 9.493 | 0.593 |
| 12 | 12.750 | 11.889 | 0.406 | 11.294 | 0.687 |
| 14 | 14.000 | 13.073 | 0.437 | 12.410 | 0.750 |
| 16 | 16.000 | 14.940 | 0.500 | 14.213 | 0.843 |
| 18 | 18.000 | 16.809 | 0.562 | 16.014 | 0.937 |
| 20 | 20.000 | 18.743 | 0.593 | 17.814 | 1.031 |
| 24 | 24.000 | 22.544 | 0.687 | 21.418 | 1.218 |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
PVC Industrial Pipe — Schedule 40/80 Chemical & Wastewater — used in these projects
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
