PVC Pipes
PVC-U Water Supply Pipe
PVC-U pressure pipes for potable water distribution, rural water supply and pump main applications. Manufactured to ISO 1452, EN 1452 and ASTM D1785/D2241, sizes DN20 – DN630, pressure ratings PN6 – PN16. Lead-free formulation, NSF/ANSI 61 certified for drinking water on request.
- PVC-U Water Supply Pipe

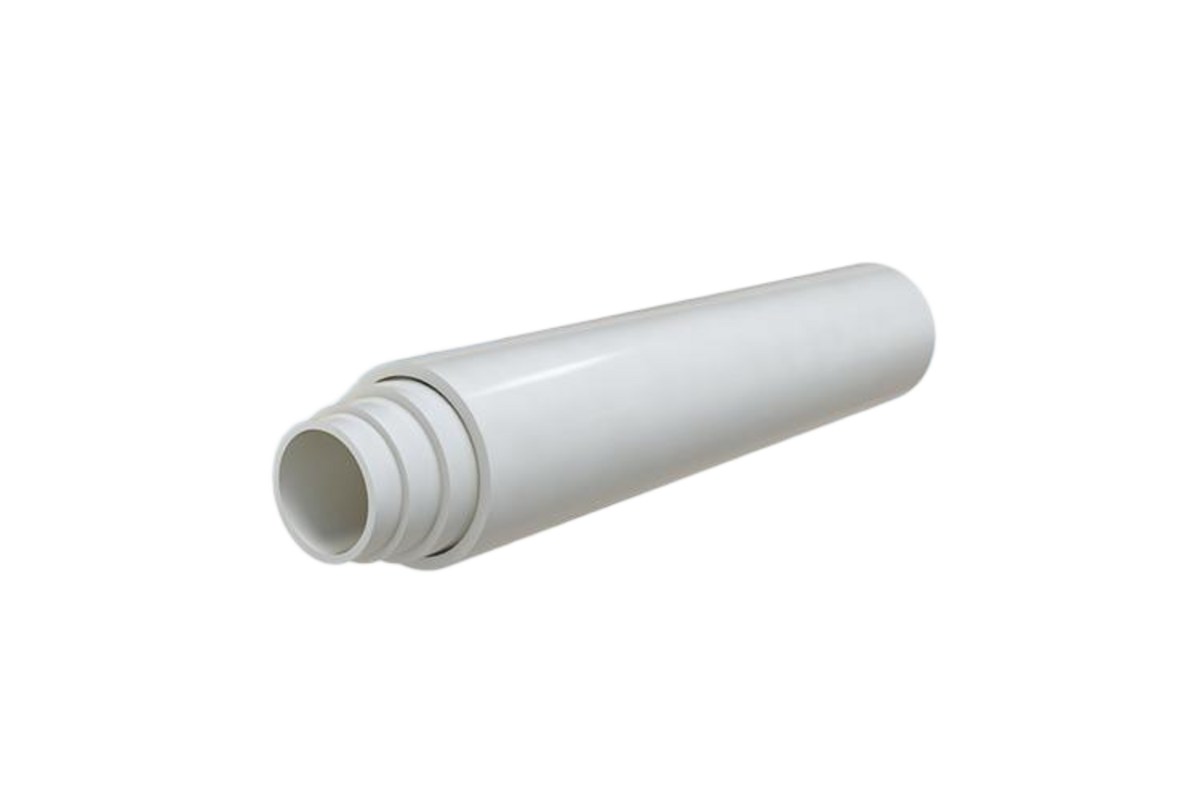

- PVC-U Pressure Pipe — Detail

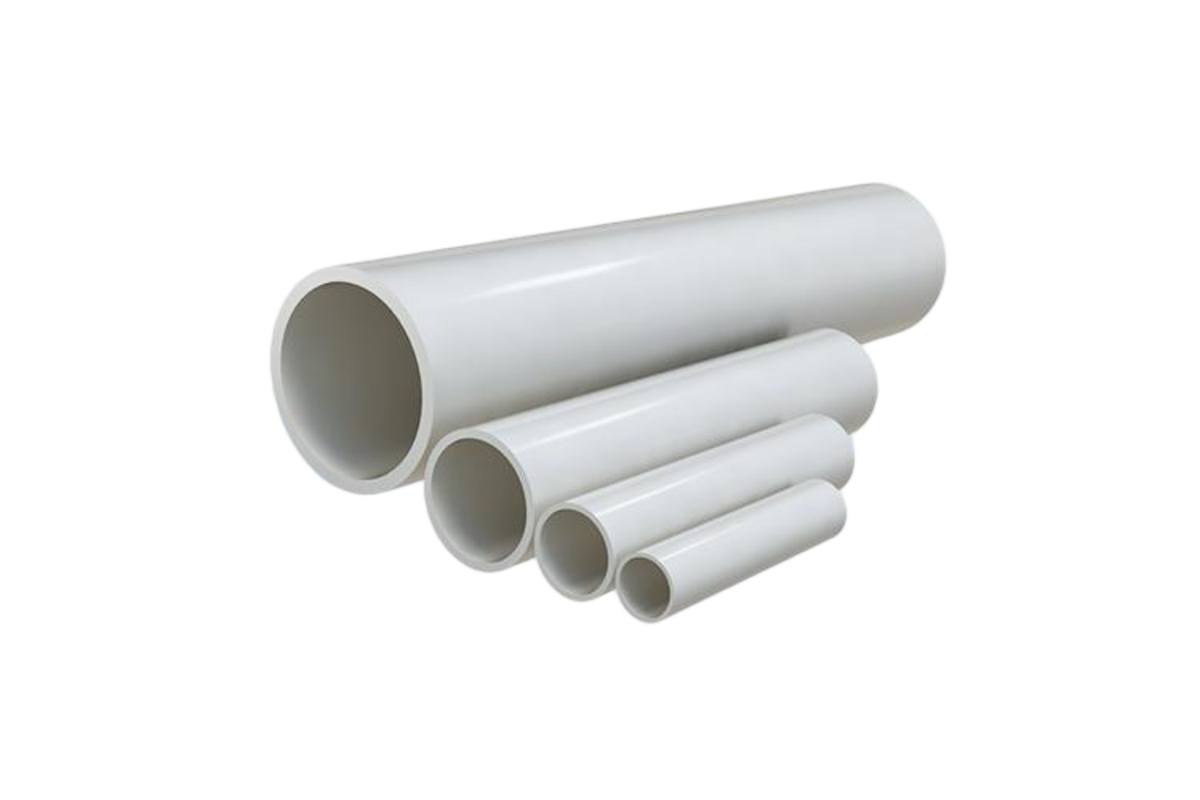

- PVC-U Pipe for Potable Water

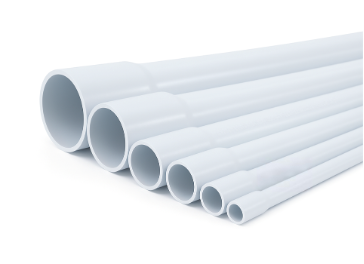

- White PVC-U Water Supply Pipe Bundle — PVC-U Water Supply Pipe | Primepoly

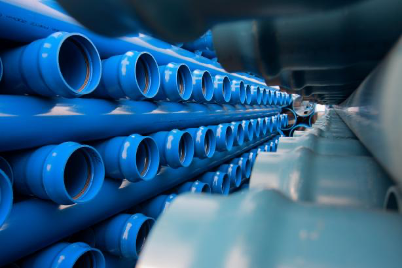

- Blue PVC-U Water Pipe Stockpile — PVC-U Water Supply Pipe | Primepoly Pipe Manufacturer
- Raw Materials
- PVC-U lead-free compound
- Diameter Range
- DN20 – DN630 mm
- Pressure Rating
- PN6 – PN16
- Standards
- ISO 1452 / EN 1452 / ASTM D1785 / D2241
- Certificates
- NSF/ANSI 61 (on request)
- Color
- Light grey / blue / white
- Length
- 4 m / 6 m
- Applications
- Potable water, rural water supply, pump main
Product Description
PVC-U Water Supply Pipe is a rigid pressure pipe extruded from unplasticised polyvinyl chloride for cold-water mains, building service connections and rural water supply. It is manufactured to ISO 1452 / EN 1452 / ASTM D1785 with rubber-ring socket joints or solvent-weld ends.
Advantages and Characteristics
1. Excellent corrosion resistance to acids, alkalis and salts found in soil and water.
2. Smooth bore preserves hydraulic capacity and prevents biofilm.
3. Lightweight (about 1/5 of cast iron) — fast trenching and lower freight cost.
4. Lead-free, food-contact-safe formulation.
5. Low cost per metre and wide global availability of fittings.
Typical Applications
1. Cold-water distribution mains in towns and rural villages.
2. Service connections from the public main to homes and businesses.
3. Booster-pump and pressure-zone reticulation.
4. Agricultural water supply (non-irrigation pressure use).
5. Building services cold-water risers and chilled-water loops.
Datasheet
PVC-U Water Supply Pipe — Dimensional Data
| DN (mm) | Size (in) | OD Tolerance (mm) | Socket Depth (mm) | PN 6.3Min Wall (mm) | PN 8Min Wall (mm) | PN 10Min Wall (mm) | PN 12.5Min Wall (mm) | PN 16Min Wall (mm) | PN 20Min Wall (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 20 | 1/2" | 0.2 | — | 1.6 | 1.6 | 1.7 | 1.8 | 1.8 | 2.0 |
| 25 | 3/4" | 0.2 | — | 1.6 | 1.7 | 1.7 | 1.8 | 2.0 | 2.3 |
| 32 | 1" | 0.2 | — | 1.7 | 1.7 | 1.8 | 2.0 | 2.4 | 3.0 |
| 40 | 1 1/4" | 0.2 | — | 1.8 | 1.8 | 2.0 | 2.4 | 3.0 | 3.7 |
| 50 | 1 1/2" | 0.2 | 75 | 1.8 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 |
| 63 | 2" | 0.3 | 100 | 2.0 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 |
| 75 | 2 1/2" | 0.3 | 110 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 |
| 90 | 3" | 0.3 | 120 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4" | 0.4 | 120 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 |
| 125 | 5" | 0.4 | 119 | 3.1 | 3.9 | 4.8 | 6.6 | 7.4 | 9.2 |
| 140 | 5 1/2" | 0.5 | 125 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 |
| 160 | 6" | 0.5 | 132 | 4.0 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 |
| 180 | 7" | 0.6 | 145 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 |
| 200 | 8" | 0.6 | 145 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 |
| 225 | 9" | 0.7 | 152 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 |
| 250 | 10" | 0.8 | 160 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 |
| 280 | 11" | 0.9 | 170 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 |
| 315 | 12" | 1.0 | 180 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 |
| 355 | 14" | 1.1 | 180 | 8.7 | 10.9 | 13.6 | 16.9 | 21.2 | 26.1 |
| 400 | 16" | 1.2 | 200 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 |
| 450 | 18" | 1.4 | 200 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 |
| 500 | 20" | 1.5 | 250 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 |
| 560 | 22" | 1.7 | 260 | 13.7 | 17.2 | 21.4 | 26.7 | — | — |
| 630 | 24" | 1.9 | 300 | 15.4 | 19.3 | 24.1 | 30.0 | — | — |
| 710 | 28" | 2.0 | — | 17.4 | 21.8 | — | — | — | — |
| 800 | 32" | 2.0 | — | 19.7 | 24.5 | — | — | — | — |
| 900 | 36" | 2.0 | — | 22.0 | 27.6 | — | — | — | — |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
PVC-U Water Supply Pipe — used in these projects
PVC-U Water Supply Pipe — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
