HDPE Fittings
Custom-Made HDPE Fittings
Custom-fabricated HDPE fittings - 45°/90° elbows, end caps, reducers, flange ends. Designed to your project drawings for non-standard diameters, angles and wall thickness.
- Custom-Made HDPE 45° Elbow

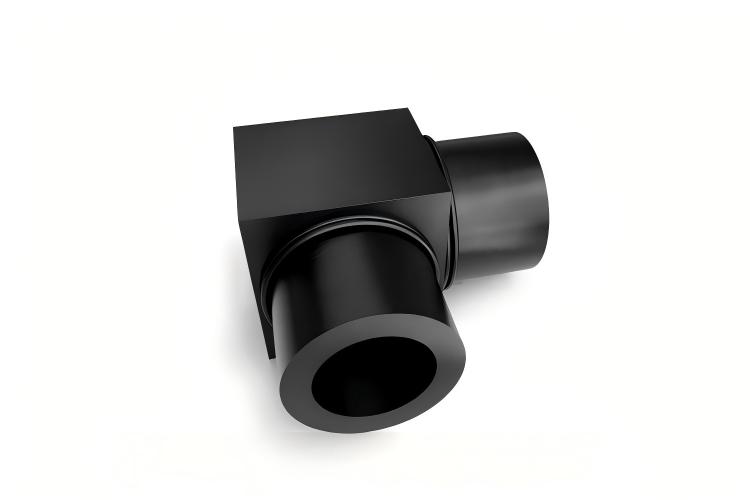

- Custom-Made HDPE 90° Elbow

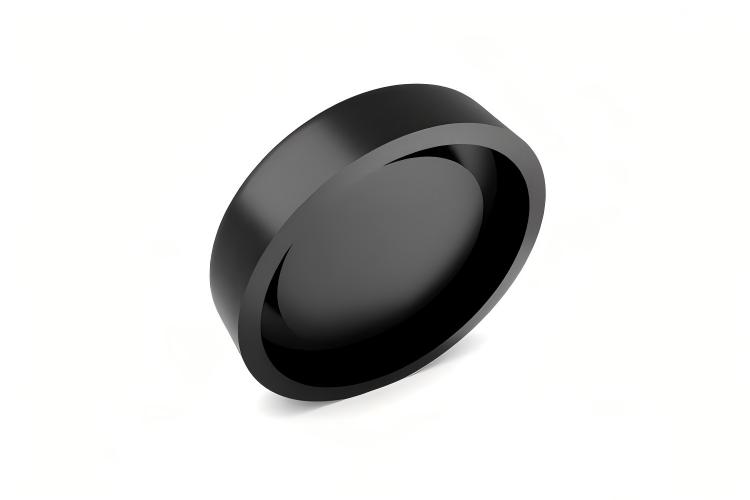

- Custom-Made HDPE End Cap

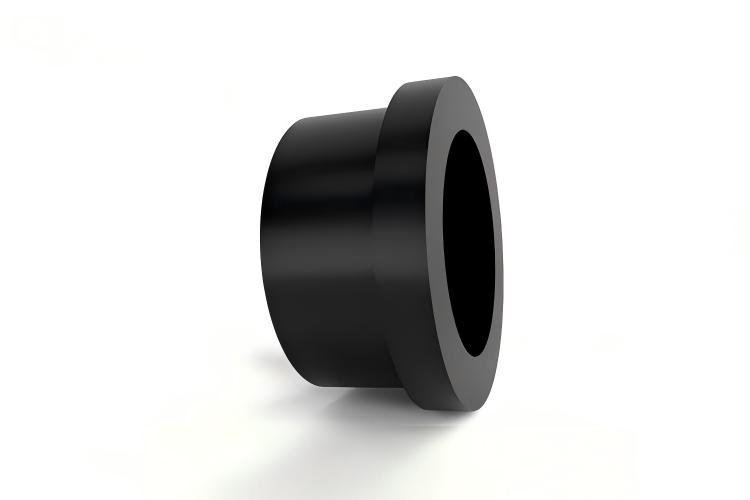

- Custom-Made HDPE Flange End

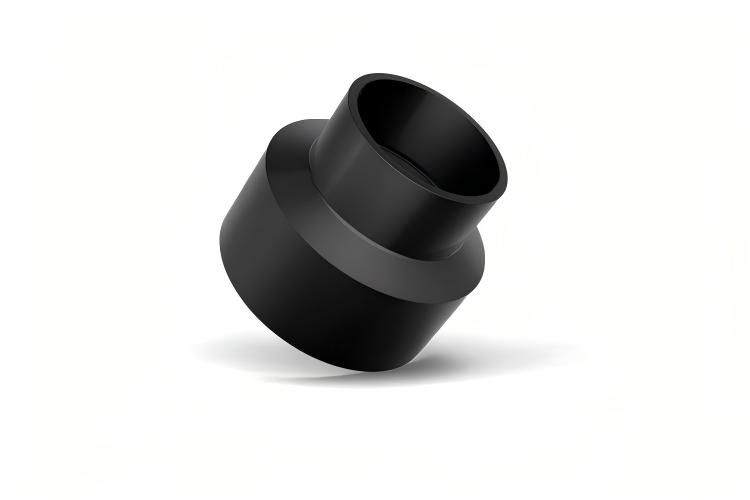

- Custom-Made HDPE Reducer
- Raw Materials
- PE100 / PE4710 from Borealis, SABIC
- Diameter Range
- Custom (typically DN50 – DN2000 mm)
- Standards
- ISO 4427-3 / EN 12201-3
- Joint Type
- Butt-fusion / electrofusion / flanged
- Applications
- Project-specific configurations: large-bore reducers, custom-angle elbows, manifolds
Product Description
Custom-Made HDPE Fittings are fabricated to your project drawings for non-standard diameters, angles and wall thicknesses where injection-moulded fittings do not exist. They are typical for large bore (>DN500), unusual angles or end-condition combinations.
Advantages and Characteristics
1. Made from PE100 / PE4710 pipe stock so material grade matches the rest of your network.
2. Any combination of butt-fusion, electrofusion, flanged or threaded ends.
3. Sizes typically DN50 – DN2000 mm; bespoke larger sizes on request.
4. Internal welds X-rayed or visually inspected per project specification.
5. Drawing-to-delivery lead times as fast as 7–14 days for standard configurations.
Typical Applications
1. Large-bore reducers between sized mains.
2. Custom-angle elbows for terrain that does not match standard 45° / 90°.
3. Manifolds with multiple branches for pump-station headers.
4. Project-specific transitions to ductile iron, steel or stainless flanges.
5. Specialised dredge components — wear-resistant elbows, cone reducers, ball joints.
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
