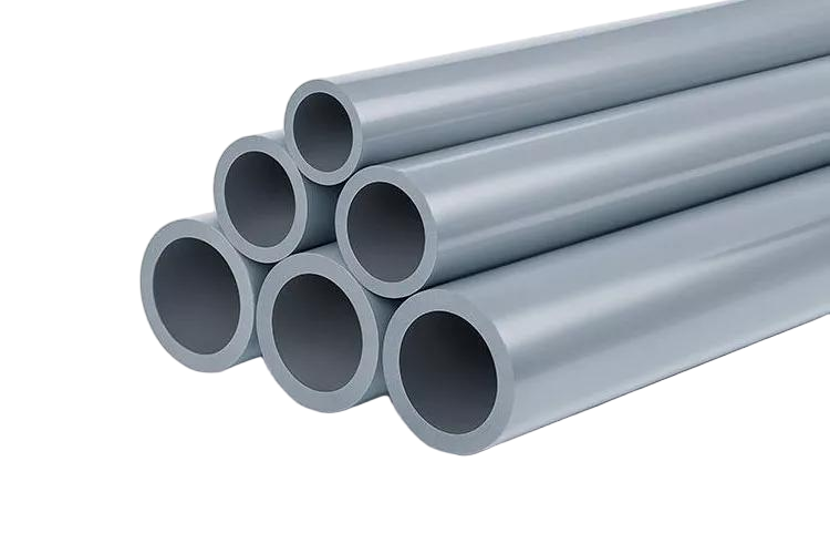

CPVC Pipe
CPVC pipes offer excellent heat resistance and corrosion resistance, making them ideal for hot water systems, chemical processing, and industrial fluid transport. Manufactured from chlorinated polyvinyl chloride for stable service at temperatures up to 90–95 °C, CPVC pipes are widely used in residential and commercial hot water, industrial fluid lines, plating and electroplating circuits, and chemical media transport.
- Raw Materials
- Chlorinated polyvinyl chloride (CPVC) compound
- Diameter Range
- 1/2" – 24" (DN15 – DN600)
- Pressure Rating
- Schedule 40 / Schedule 80
- Standards
- ASTM F441 (CPVC pipe) / ASTM F439 (CPVC fittings)
- Length
- 4 m per length
- Operating Temperature
- Vicat softening temperature ≥ 110 °C
- Color
- Grey
- Certificates
- NSF certification — application in progress
- Applications
- Hot water systems, chemical processing, industrial fluid transport, electroplating lines
Product Description
CPVC Pipe is a chlorinated-polyvinyl-chloride pressure pipe engineered for hot-water, chemical and industrial fluid service. Compared to PVC, the chlorinated polymer has higher chlorine content (66 % vs 56 %), giving it superior heat resistance, chemical-corrosion resistance and mechanical strength up to 90–95 °C.
Advantages and Characteristics
1. Excellent high-temperature resistance: continuous service at ~90 °C and short-term to ~95 °C.
2. Strong corrosion resistance to acids, alkalis, salts and oxidising chemicals.
3. Low flow resistance: smooth bore lowers head loss and pumping energy.
4. Solvent-weld assembly is fast and tool-free; no welder operator certification needed.
5. Long service life under typical conditions: 50+ years when installed within design limits.
How It Compares
1. Material: CPVC is the chlorinated modification of PVC, with extra chlorine bonded to the polymer chain.
2. Temperature: PVC is rated to ~63 °C, CPVC to ~90–95 °C — only CPVC is suited for hot-water service.
3. Chemical resistance: CPVC is more aggressive-chemical tolerant; PVC handles cold acids/alkalis well.
4. Mechanical strength: CPVC is somewhat stiffer at elevated temperatures.
5. Cost: CPVC is slightly more expensive; choose PVC for cold drainage and CPVC for hot or chemical loops.
Datasheet
CPVC Pipe — Dimensions & Nominal Weight
| NPS (inch) | DN (mm) | OD (mm) | OD tol. | Wall (mm) | Wall tol. | Approx. ID (mm) | Weight PVC (kg/m) | Weight CPVC (kg/m) |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 21.34 | ±0.10 | 3.73 | +0.51 | 13.4 | 0.311 | 0.337 |
| 3/4" | 20 | 26.67 | ±0.10 | 3.91 | +0.51 | 18.3 | 0.421 | 0.457 |
| 1" | 25 | 33.40 | ±0.13 | 4.55 | +0.53 | 23.8 | 0.618 | 0.670 |
| 1-1/4" | 32 | 42.16 | ±0.13 | 4.85 | +0.58 | 31.9 | 0.855 | 0.927 |
| 1-1/2" | 40 | 48.26 | ±0.15 | 5.08 | +0.61 | 37.5 | 1.037 | 1.124 |
| 2" | 50 | 60.32 | ±0.15 | 5.54 | +0.66 | 48.6 | 1.435 | 1.556 |
| 2-1/2" | 65 | 73.02 | ±0.18 | 7.01 | +0.84 | 58.2 | 2.190 | 2.373 |
| 3" | 80 | 88.90 | ±0.20 | 7.62 | +0.91 | 72.8 | 2.932 | 3.178 |
| 4" | 100 | 114.30 | ±0.23 | 8.56 | +1.02 | 96.2 | 4.288 | 4.648 |
| 5" | 125 | 141.30 | ±0.25 | 9.53 | +1.14 | 121.1 | 5.950 | 6.450 |
| 6" | 150 | 168.28 | ±0.28 | 10.97 | +1.32 | 145.0 | 8.186 | 8.873 |
| 8" | 200 | 219.08 | ±0.38 | 12.70 | +1.52 | 192.2 | 12.433 | 13.477 |
| 10" | 250 | 273.05 | ±0.38 | 15.06 | +1.80 | 241.1 | 18.436 | 19.983 |
| 12" | 300 | 323.85 | ±0.38 | 17.45 | +2.08 | 286.9 | 25.365 | 27.493 |
| 14" | 350 | 355.60 | ±0.38 | 19.05 | +2.29 | 315.2 | 30.430 | 32.983 |
| 16" | 400 | 406.40 | ±0.48 | 21.41 | +2.57 | 361.0 | 39.125 | 42.408 |
| 18" | 450 | 457.20 | ±0.48 | 23.80 | +2.84 | 406.8 | 48.943 | 53.050 |
| 20" | 500 | 508.00 | ±0.58 | 26.19 | +3.15 | 452.5 | 59.596 | 64.922 |
| 24" | 600 | 609.60 | ±0.79 | 30.94 | +3.71 | 544.0 | 84.974 | 92.105 |
cpvc_pipe_schedule_dimensions
| Pipe Size (in) | O.D. (in) | Sch 40 — Avg I.D. (in) | Sch 40 — Min. Wall (in) | Sch 80 — Avg I.D. (in) | Sch 80 — Min. Wall (in) |
|---|---|---|---|---|---|
| 1/4 | 0.540 | 0.344 | 0.088 | 0.282 | 0.119 |
| 3/8 | 0.675 | 0.473 | 0.091 | 0.403 | 0.126 |
| 1/2 | 0.840 | 0.602 | 0.109 | 0.526 | 0.147 |
| 3/4 | 1.050 | 0.804 | 0.113 | 0.722 | 0.154 |
| 1 | 1.315 | 1.029 | 0.133 | 0.936 | 0.179 |
| 1 1/4 | 1.660 | 1.360 | 0.140 | 1.255 | 0.191 |
| 1 1/2 | 1.900 | 1.590 | 0.145 | 1.476 | 0.200 |
| 2 | 2.375 | 2.047 | 0.154 | 1.913 | 0.218 |
| 2 1/2 | 2.875 | 2.445 | 0.203 | 2.290 | 0.276 |
| 3 | 3.500 | 3.042 | 0.216 | 2.864 | 0.300 |
| 3 1/2 | 4.000 | 3.521 | 0.226 | 3.326 | 0.318 |
| 4 | 4.500 | 3.998 | 0.237 | 3.786 | 0.337 |
| 5 | 5.563 | 5.016 | 0.258 | 4.768 | 0.375 |
| 6 | 6.625 | 6.031 | 0.280 | 5.709 | 0.432 |
| 8 | 8.625 | 7.942 | 0.322 | 7.565 | 0.500 |
| 10 | 10.750 | 9.976 | 0.365 | 9.493 | 0.593 |
| 12 | 12.750 | 11.889 | 0.406 | 11.294 | 0.687 |
| 14 | 14.000 | 13.073 | 0.437 | 12.410 | 0.750 |
| 16 | 16.000 | 14.940 | 0.500 | 14.213 | 0.843 |
| 18 | 18.000 | 16.809 | 0.562 | 16.014 | 0.937 |
| 20 | 20.000 | 18.743 | 0.593 | 17.814 | 1.031 |
| 24 | 24.000 | 22.544 | 0.687 | 21.418 | 1.218 |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10

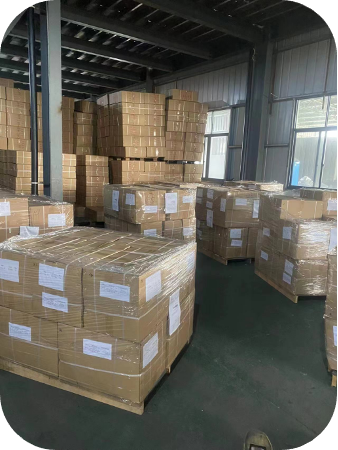

CPVC Pipe — used in these projects
