PVC Fittings

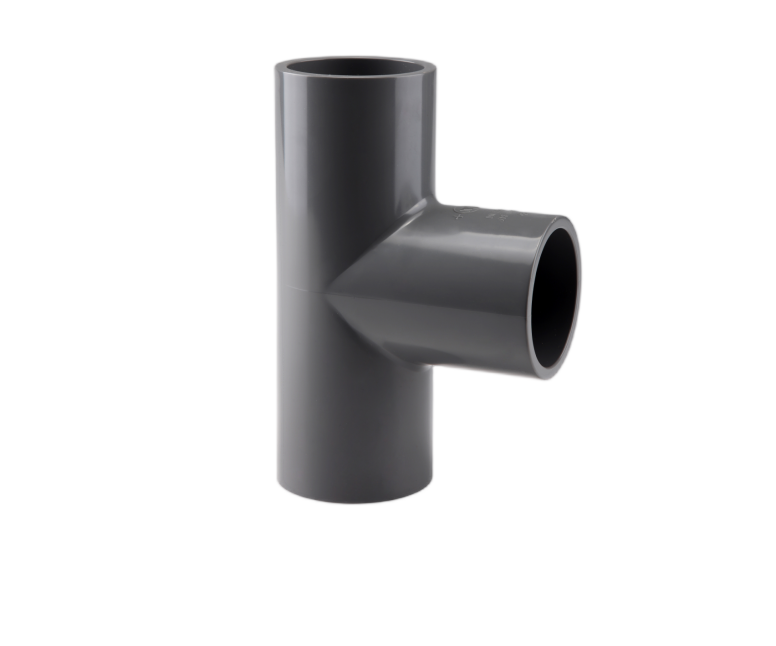

PVC Equal Tee
PVC-U equal tee for branching pipework in water supply, irrigation, fire-protection and industrial systems. Three identical sockets allow a 90° branch on the run. Solvent-weld and threaded versions per ASTM D2466 / ISO 1452-3. DN20 – DN400, PN10 / PN16.
- Raw Materials
- PVC-U lead-free compound
- Diameter Range
- DN20 – DN400 mm
- Pressure Rating
- PN10 / PN16
- Standards
- ISO 1452-3 / EN 1452-3 / ASTM D2466 / D2467
- Joint Type
- Solvent-weld socket × socket × socket / threaded BSP / NPT
- Color
- Light grey / dark grey / white (custom on request)
- Applications
- Water supply, irrigation, drainage, pool / spa, industrial pressure piping
Product Description
The Primepoly equal tee provides a 90° branch from a PVC-U pressure main with three identical ports. Manufactured to ASTM D2466 / ISO 1452-3 with consistent socket geometry, it produces leak-tight solvent-weld joints across all three connections — the core branching fitting in any PVC system.
Advantages and Characteristics
1. Three equal-diameter sockets (or threaded ports) for symmetric flow paths.
2. Reinforced shoulder geometry concentrates wall thickness at the branch — eliminates the weak point typical of cheaper tees.
3. Available solvent-weld and threaded BSP / NPT in DN20 – DN400.
4. Compatible with all standard PVC pipe sizes; identical chemistry as the parent pipe — no material mismatch.
5. PN10 / PN16 pressure ratings, 0–60 °C service.
Typical Applications
Tees are used wherever a system needs to split or merge: irrigation manifolds, water-supply branches to individual plots, fire-protection riser drops, distribution headers in industrial plants, and swimming-pool return / vacuum-port branches. The reinforced shoulder makes them suitable even on long-running pumped lines.
Quality and Compliance
Every Primepoly PVC equal tee is moulded from food-grade, lead-free PVC-U compound and tested to ASTM D2466 (Sch 40), ASTM D2467 (Sch 80), ISO 1452-3 and EN 1452-3. Optional NSF/ANSI 61 certification is available for potable-water service. Pressure ratings PN10 / PN16, working temperature 0–60 °C, service life over 50 years when installed per manufacturer guidelines.
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
