PVC Pipes
PVC Irrigation Pipe
PVC pipes for agricultural irrigation main lines, sub-main and sprinkler systems. PN6 / PN10 pressure ratings, sizes DN50 – DN400, with bell-and-spigot or solvent-weld joints for rapid in-field installation. UV-stabilised formulation for above-ground sections.
- PVC Irrigation Pipe

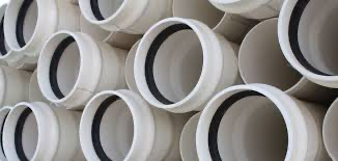

- PVC Pipe for Agricultural Irrigation

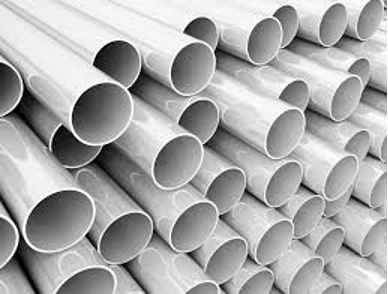

- PVC Irrigation Pipe — Detail

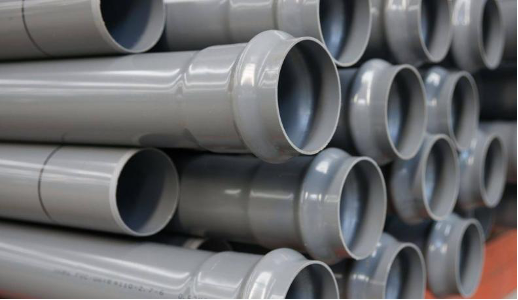

- Bundled PVC Irrigation Pipes — PVC Agricultural Irrigation Pipe | Primepoly
- Raw Materials
- PVC-U lead-free, UV-stabilised compound
- Diameter Range
- DN20 – DN1000 mm
- Pressure Rating
- PN 6.3 – PN 25
- Standards
- ISO 1452 / EN 1452
- Color
- Grey with optional blue stripe
- Joint Type
- Bell-and-spigot or solvent-weld
- Applications
- Irrigation main / sub-main / sprinkler systems
Product Description
PVC Irrigation Pipe is a rigid pressure pipe for agricultural main lines, sub-mains and sprinkler systems where flexibility is not required and lower upfront cost is preferred. Manufactured to ISO 1452 / GB/T 13664, with PN6 / PN10 / PN16 ratings.
Advantages and Characteristics
1. Lower material cost than HDPE for the same pressure class.
2. Smooth bore minimises friction losses across long sub-mains.
3. Solvent-weld and rubber-ring socket joints give fast field assembly.
4. UV-stabilised formulations available for above-ground exposure.
5. Wide DN50 – DN500 range covers farm-scale and orchard layouts.
Typical Applications
1. Mainline supply from pumping stations to field hydrants.
2. Sprinkler-system risers and sub-mains.
3. Greenhouse and orchard fixed-pipe networks.
4. Pivot-irrigation buried supply lines.
5. Filtration and fertigation manifolds.
Datasheet
PVC Irrigation Pipe — Dimensional Data
| DN (mm) | Size (in) | OD Tolerance (mm) | Socket Depth (mm) | PN 6.3Min Wall (mm) | PN 6.3Weight (kg/m) | PN 8Min Wall (mm) | PN 8Weight (kg/m) | PN 10Min Wall (mm) | PN 10Weight (kg/m) | PN 12.5Min Wall (mm) | PN 12.5Weight (kg/m) | PN 16Min Wall (mm) | PN 16Weight (kg/m) | PN 20Min Wall (mm) | PN 20Weight (kg/m) | PN 25Min Wall (mm) | PN 25Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 1/2" | 0.2 | — | 1.6 | 0.143 | 1.6 | 0.143 | 1.7 | 0.152 | 1.8 | 0.161 | 1.8 | 0.161 | 2.0 | 0.176 | 2.3 | 0.200 |
| 25 | 3/4" | 0.2 | — | 1.6 | 0.184 | 1.7 | 0.194 | 1.7 | 0.194 | 1.8 | 0.205 | 2.0 | 0.225 | 2.3 | 0.256 | 2.8 | 0.305 |
| 32 | 1" | 0.2 | — | 1.7 | 0.252 | 1.7 | 0.252 | 1.8 | 0.266 | 2.0 | 0.294 | 2.4 | 0.348 | 3.0 | 0.421 | 3.6 | 0.501 |
| 40 | 1 1/4" | 0.2 | — | 1.8 | 0.337 | 1.8 | 0.337 | 2.0 | 0.373 | 2.4 | 0.442 | 3.0 | 0.544 | 3.7 | 0.658 | 4.5 | 0.783 |
| 50 | 1 1/2" | 0.2 | 75 | 1.8 | 0.425 | 2.0 | 0.471 | 2.4 | 0.560 | 3.0 | 0.691 | 3.7 | 0.840 | 4.6 | 1.024 | 5.6 | 1.219 |
| 63 | 2" | 0.3 | 100 | 2.0 | 0.598 | 2.5 | 0.741 | 3.0 | 0.888 | 3.8 | 1.103 | 4.7 | 1.343 | 5.8 | 1.626 | 7.1 | 1.945 |
| 75 | 2 1/2" | 0.3 | 110 | 2.3 | 0.820 | 2.9 | 1.025 | 3.6 | 1.260 | 4.5 | 1.555 | 5.6 | 1.905 | 6.9 | 2.303 | 8.4 | 2.742 |
| 90 | 3" | 0.3 | 120 | 2.8 | 1.197 | 3.5 | 1.484 | 4.3 | 1.806 | 5.4 | 2.239 | 6.7 | 2.736 | 8.2 | 3.288 | 10.1 | 3.955 |
| 110 | 4" | 0.4 | 120 | 2.7 | 1.420 | 3.4 | 1.777 | 4.2 | 2.178 | 5.3 | 2.720 | 6.6 | 3.345 | 8.1 | 4.046 | 10.0 | 4.902 |
| 125 | 5" | 0.4 | 119 | 3.1 | 1.852 | 3.9 | 2.315 | 4.8 | 2.828 | 6.6 | 3.830 | 7.4 | 4.265 | 9.2 | 5.222 | 11.4 | 6.348 |
| 140 | 5 1/2" | 0.5 | 125 | 3.5 | 2.342 | 4.3 | 2.860 | 5.4 | 3.563 | 6.7 | 4.378 | 8.3 | 5.358 | 10.3 | 6.548 | 12.7 | 7.924 |
| 160 | 6" | 0.5 | 132 | 4.0 | 3.059 | 4.9 | 3.725 | 6.2 | 4.674 | 7.7 | 5.748 | 9.5 | 7.008 | 11.8 | 8.572 | 14.6 | 10.405 |
| 180 | 7" | 0.6 | 145 | 4.4 | 3.787 | 5.5 | 4.704 | 6.9 | 5.854 | 8.6 | 7.225 | 10.7 | 8.879 | 13.3 | 10.867 | 16.4 | 13.151 |
| 200 | 8" | 0.6 | 145 | 4.9 | 4.686 | 6.2 | 5.889 | 7.7 | 7.258 | 9.6 | 8.959 | 11.9 | 10.972 | 14.7 | 13.351 | 18.2 | 16.218 |
| 225 | 9" | 0.7 | 152 | 5.5 | 5.917 | 6.9 | 7.376 | 8.6 | 9.122 | 10.8 | 11.339 | 13.4 | 13.898 | 16.6 | 16.957 | — | — |
| 250 | 10" | 0.8 | 160 | 6.2 | 7.409 | 7.7 | 9.145 | 9.6 | 11.312 | 11.9 | 13.888 | 14.8 | 17.062 | 18.4 | 20.888 | — | — |
| 280 | 11" | 0.9 | 170 | 6.9 | 9.236 | 8.6 | 11.440 | 10.7 | 14.124 | 13.4 | 17.510 | 16.6 | 21.432 | 20.6 | 26.192 | — | — |
| 315 | 12" | 1.0 | 180 | 7.7 | 11.598 | 9.7 | 14.515 | 12.1 | 17.965 | 15.0 | 22.057 | 18.7 | 27.158 | 23.2 | 33.182 | — | — |
| 355 | 14" | 1.1 | 180 | 8.7 | 14.767 | 10.9 | 18.384 | 13.6 | 22.758 | 16.9 | 28.007 | 21.2 | 34.686 | 26.1 | 42.076 | — | — |
| 400 | 16" | 1.2 | 200 | 9.8 | 18.743 | 12.3 | 23.374 | 15.3 | 28.850 | 19.1 | 35.659 | 23.7 | 43.713 | 29.4 | 53.405 | — | — |
| 450 | 18" | 1.4 | 200 | 11.0 | 23.669 | 13.8 | 29.505 | 17.2 | 36.488 | 21.5 | 45.156 | 26.7 | 55.398 | 33.1 | 67.638 | — | — |
| 500 | 20" | 1.5 | 250 | 12.3 | 29.403 | 15.3 | 36.349 | 19.1 | 45.021 | 23.9 | 55.773 | 29.7 | 68.464 | 36.8 | 83.550 | — | — |
| 560 | 22" | 1.7 | 260 | 13.7 | 36.684 | 17.2 | 45.761 | 21.4 | 56.495 | 26.7 | 69.793 | — | — | — | — | — | — |
| 630 | 24" | 1.9 | 300 | 15.4 | 46.392 | 19.3 | 57.772 | 24.1 | 71.573 | 30.0 | 88.227 | — | — | — | — | — | — |
| 710 | 28" | 2.0 | — | 17.4 | 59.069 | 21.8 | 73.536 | — | — | — | — | — | — | — | — | — | — |
| 800 | 32" | 2.0 | — | 19.7 | 75.308 | 24.5 | 93.128 | — | — | — | — | — | — | — | — | — | — |
| 900 | 36" | 2.0 | — | 22.0 | 94.678 | 27.6 | 118.020 | — | — | — | — | — | — | — | — | — | — |
| 1000 | 40" | 2.0 | — | 24.5 | 117.145 | 30.6 | 145.397 | — | — | — | — | — | — | — | — | — | — |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
PVC Irrigation Pipe — used in these projects
PVC Irrigation Pipe — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
