HDPE Fittings
HDPE Fabricated Fittings
HDPE fabricated fittings for large-diameter pipelines: segmented elbows (22.5°/45°/90°), tees, Y-tees, segment tees and crosses. Welded from pipe stock for DN>=450.
- HDPE Fabricated 22.5° Segmented Elbow

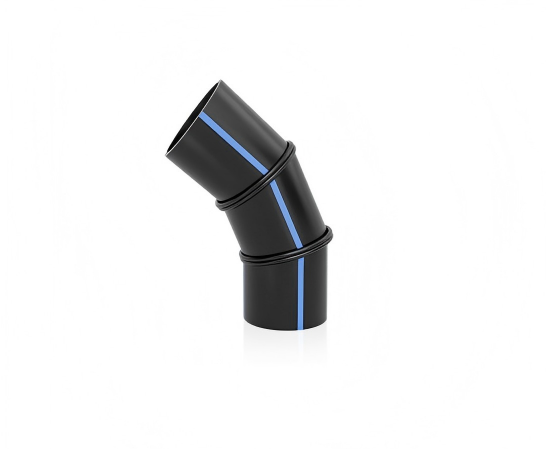

- HDPE Fabricated 45° Segmented Elbow

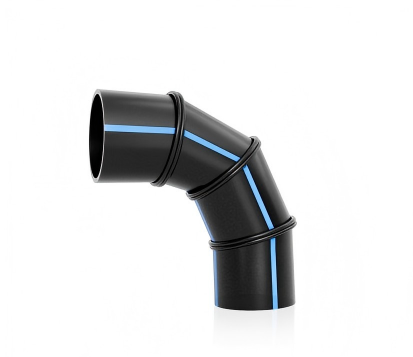

- HDPE Fabricated 90° Segmented Elbow

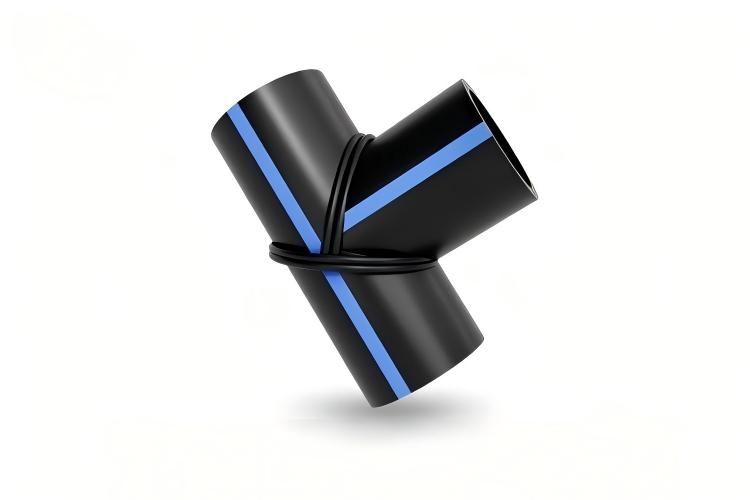

- HDPE Fabricated Segmented Tee

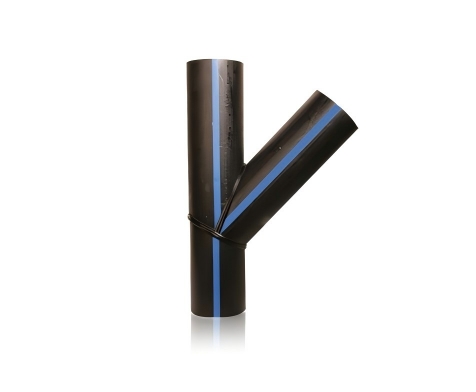

- HDPE Fabricated Y-Tee
- HDPE Fabricated Cross
- HDPE Fabricated Tee
- Raw Materials
- PE100 / PE4710 from Borealis, SABIC
- Diameter Range
- DN200 – DN2000 mm
- Standards
- ISO 4427-3 (mitred fittings, derated)
- Joint Type
- Butt fusion / electrofusion / flanged
- Applications
- Project-specific configurations: large-bore reducers, custom-angle elbows, manifolds
Product Description
HDPE Fabricated Fittings are mitred from PE100 pipe stock and butt-fusion welded to form large-diameter elbows, tees, segment tees, Y-tees and crosses where injection-moulded sizes do not exist. Typical sizes DN200 – DN2000.
Advantages and Characteristics
1. Available in any large diameter where injection-moulded fittings stop (typically DN450+).
2. Any non-standard angle (e.g. 22.5°, 67.5°) made by adjusting mitre count.
3. Same PE100 raw material as your pipeline — uniform performance and stress profile.
4. Lower cost than custom moulds for one-off project geometry.
5. Pressure derating clearly defined per ISO 4427-3 and DVS 2202 to ensure safe specification.
Typical Applications
1. Large-bore municipal water and dredging mains where injection moulds are not available.
2. Mining slurry headers with multiple branch tees.
3. Hydroelectric and irrigation mains with site-specific angles.
4. Power-station cooling-water intakes with custom flange arrangements.
5. Marine outfalls, where each bend matches sea-bed bathymetry.
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
Large Diameter Fabricated HDPE Wye Tee | Primepoly 45° Y-Branch Fitting
HDPE Fabricated Fittings — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
