HDPE Fittings
HDPE Flanges
HDPE flange solutions: flange ends, flange rings, ductile iron and steel backing rings, PP plastic-wrapped flanges. Compatible with DIN, ANSI and GB/T pressure classes.

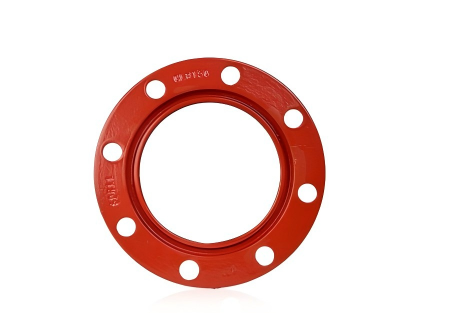

- Ductile Iron Flange

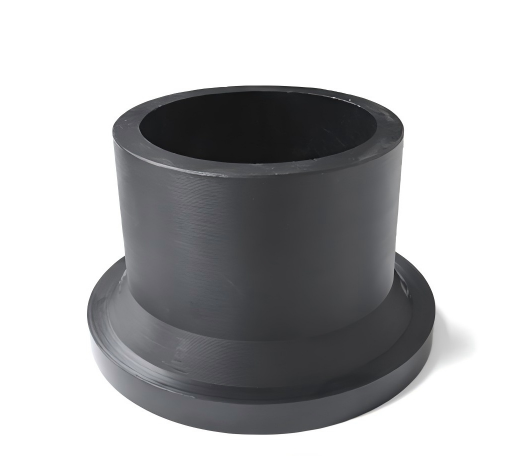

- Flange End

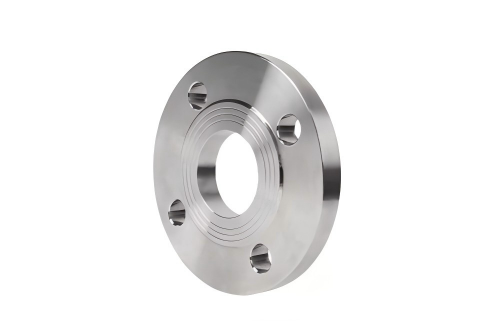

- Flange Fittings (2)

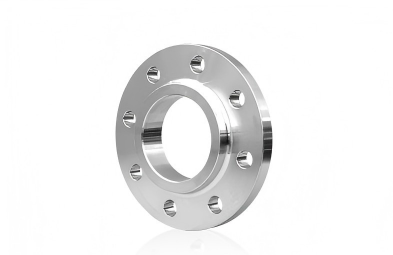

- Flange Fittings

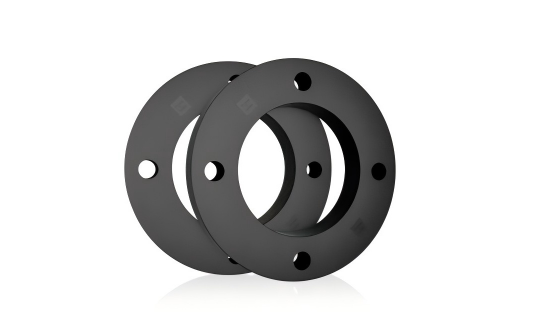

- Flange Ring
- PP Plastic-wrapped Flange
- Steel Backing Ring
- Raw Materials
- PE100 / PE4710 from Borealis, SABIC
- Diameter Range
- DN40 – DN800 mm (1 1/2" – 32", customised on request)
- Pressure Rating
- PN6 / PN8 / PN10 / PN16 / PN20 / PN25; ANSI 150 / 300; BS10 Tables D / E / F
- Standards
- EN 1092-1 / ISO 7005-1 / ANSI B16.5 / BS 10 / DIN 2501 / DIN 2576 / GB/T 9119
- Certificates
- WRAS, CE, ISO 9001 / 14001 / 45001
- Applications
- Connection to steel valves, pumps, ductile-iron hydrants; demountable transitions
Product Description
HDPE Flanges are the bolted transition between HDPE pipelines and pumps, valves, vessels and metallic piping. The system uses a PE100 stub-end welded to the pipe and a separate ductile-iron, steel or stainless backing ring that takes the bolt load.
Advantages and Characteristics
1. PE100 wetted face: matches pipe in WRAS / NSF / CE potable certification.
2. Backing-ring metallurgy is decoupled from process — choose galvanised, SS304, SS316 or PP-coated steel for the corrosion environment.
3. Compatible with EN 1092-1, ISO 7005-1, ANSI B16.5 and BS 10 drilling tables.
4. Easy gasket replacement and re-bolting — no need to recut or fuse the pipe.
5. Pressure ratings PN6 / 8 / 10 / 16 / 20 / 25 and ANSI 150 / 300.
Typical Applications
1. Pump and valve connections in water treatment and pump stations.
2. Spool-piece transitions to existing iron, steel or stainless mains.
3. Tank, manifold and instrument-take-off connections.
4. Hydrant and air-valve outlets on buried mains.
5. Removable spool sections for inspection and maintenance.
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors

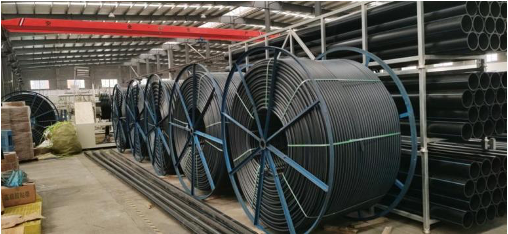

Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
Primepoly Large Diameter HDPE Pipe Flange Stub Ends | Machined Factory Show
HDPE Flanges — used in these projects
HDPE Flanges — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
