HDPE Fittings
HDPE Butt-Fusion Fittings
Full range of HDPE butt-fusion fittings: elbows (22.5°, 45°, 90°), tees, reducing tees, Y-tees, crosses, end caps, couplers and reducers. Injection-moulded PE100, pressure-rated for water and gas distribution.
- HDPE Butt-fusion Equal Tee

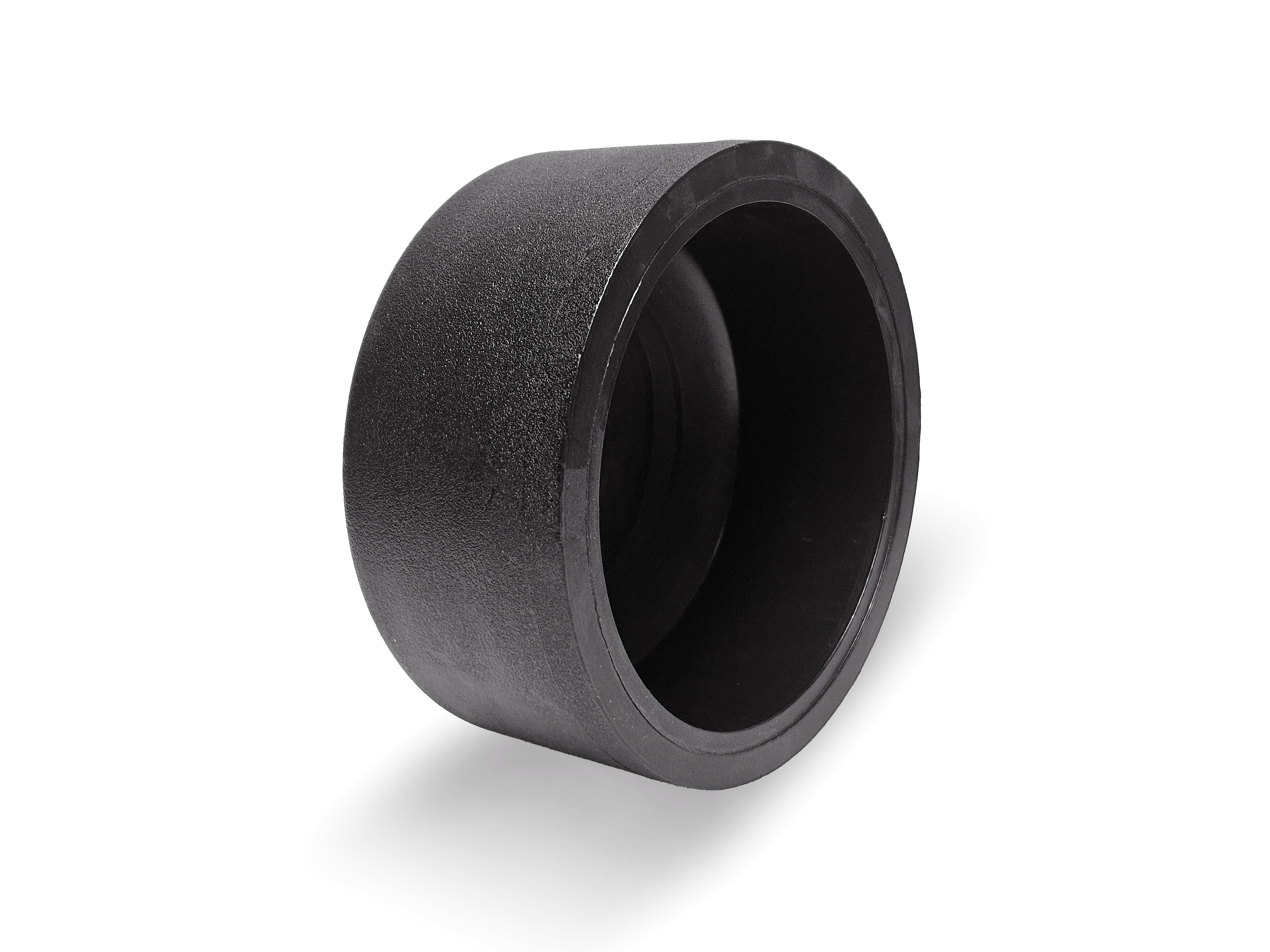

- HDPE Butt-fusion End Cap

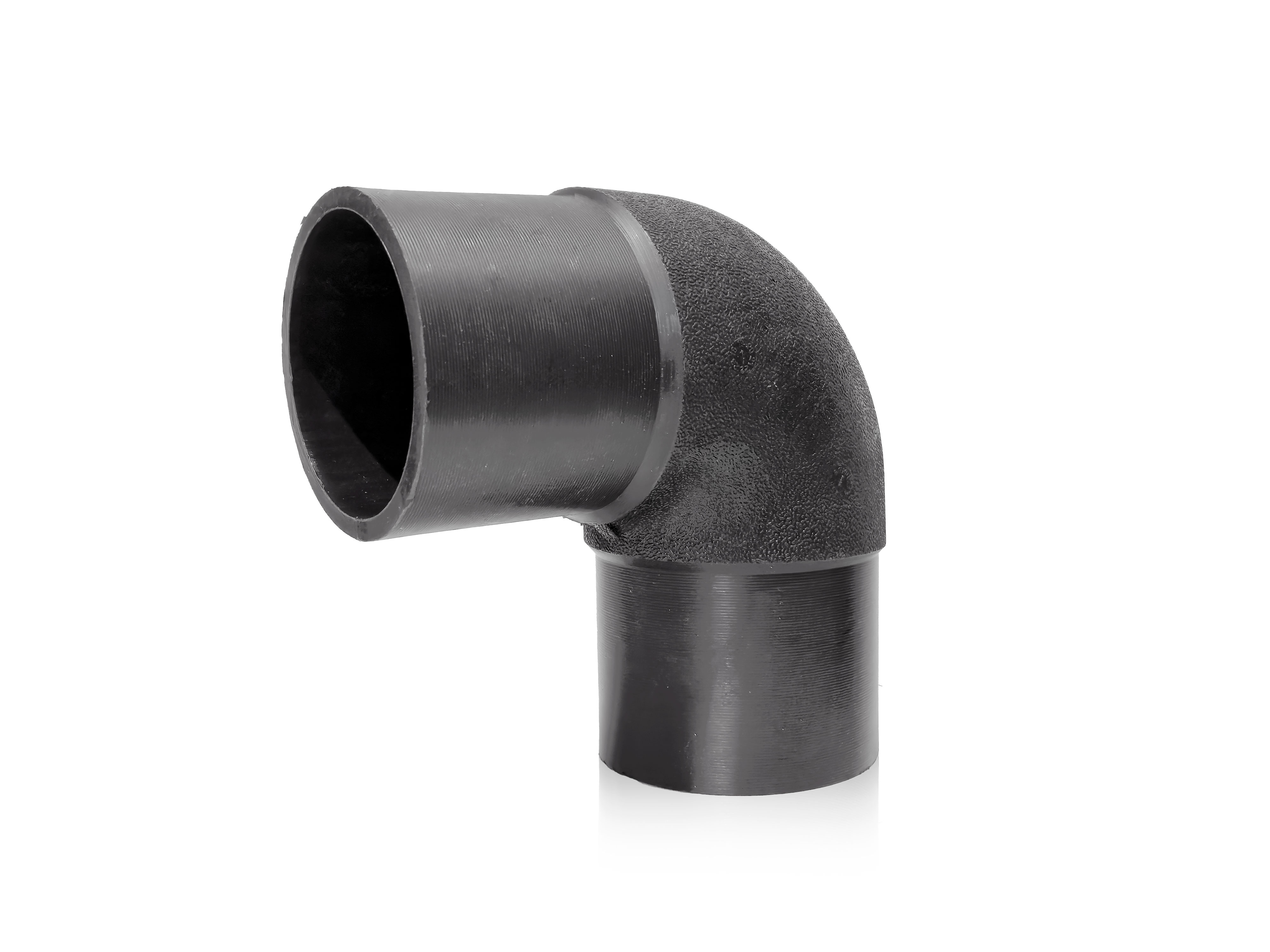

- HDPE Butt-fusion 90° Elbow

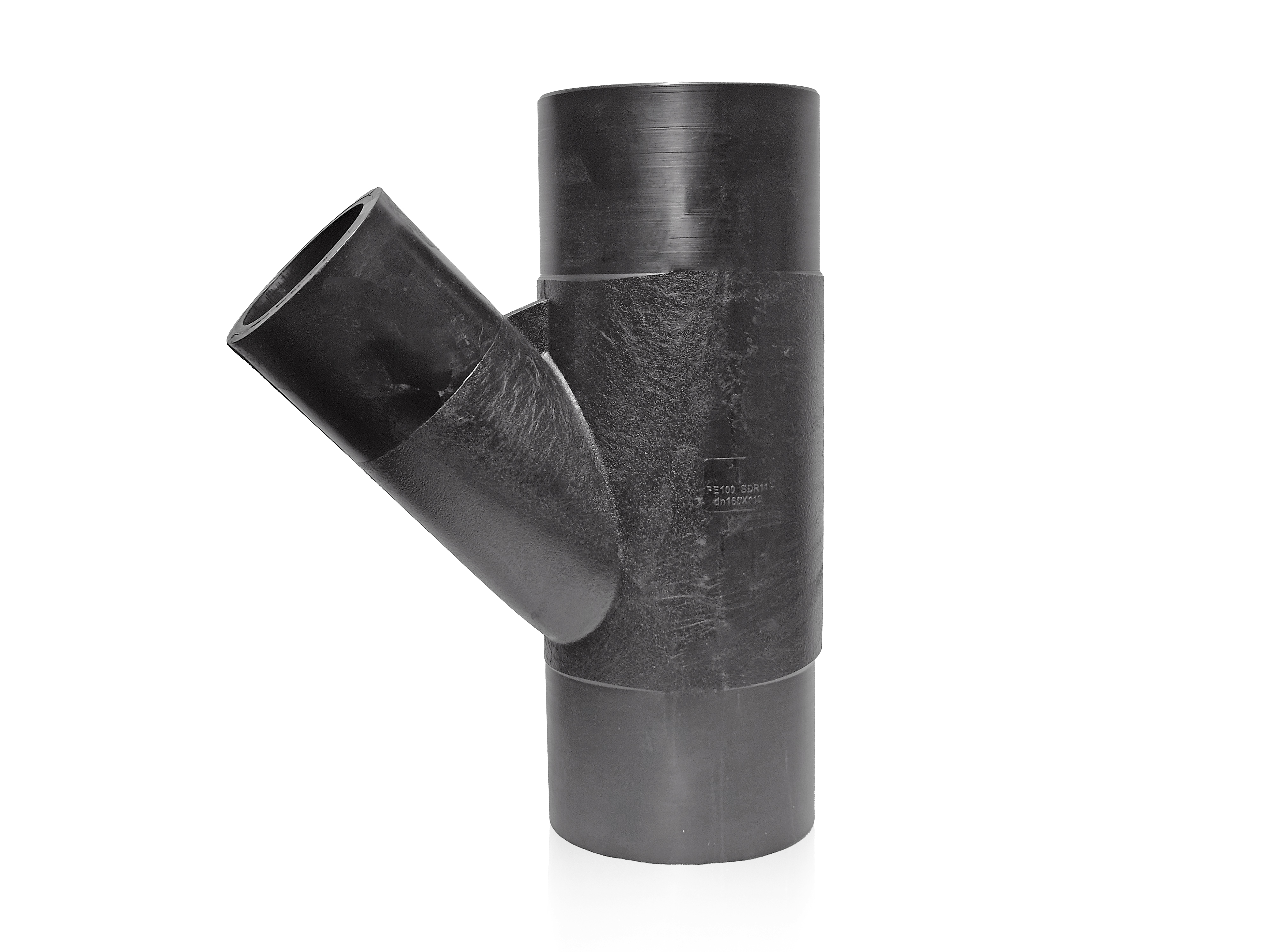

- HDPE Butt-fusion Y-Tee

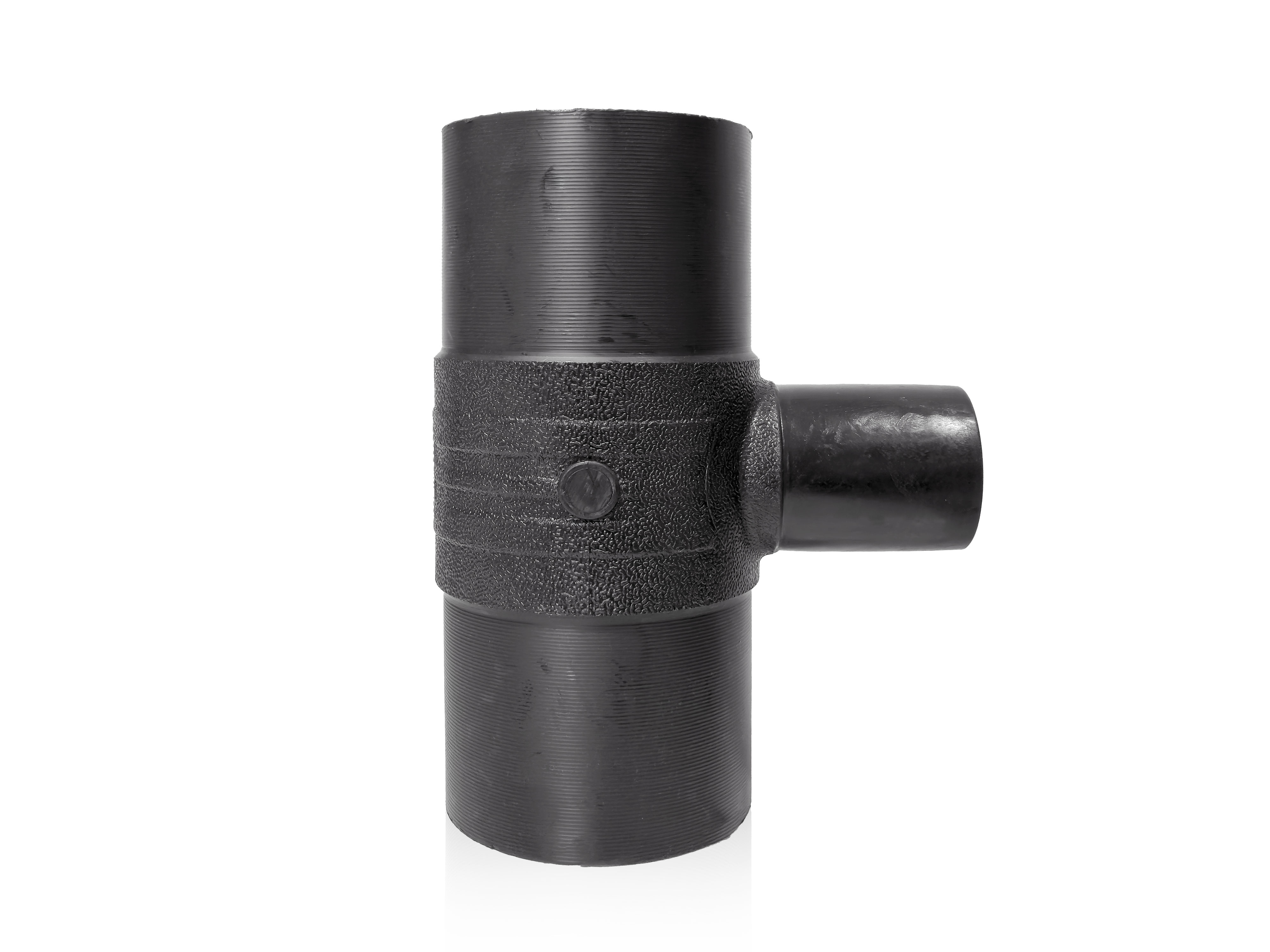

- HDPE Butt-fusion Reducing Tee
- HDPE Butt-fusion Reducing Cross
- HDPE Butt-fusion Reducing Coupler
- HDPE Butt-fusion Water-Stop Ring
- HDPE Butt-fusion 45° Elbow (SDR7)
- Raw Materials
- PE100 / PE4710 from Borealis, SABIC
- Diameter Range
- DN50 – DN1600 mm (1/2" – 64", customised on request)
- Pressure Rating
- SDR26 – SDR7.4 (PN6 – PN25); class 150 flanged
- Standards
- ISO 4427-3 / EN 12201-3 / ASTM D3261 / AS/NZS 4129
- Certificates
- WRAS, NSF/ANSI 61, CE, ISO 9001 / 14001 / 45001
- Joint Type
- Butt-fusion welded (heated plate), per ISO 21307
- Applications
- Water, gas, mining, industrial pipelines DN ≥ 90 mm
Product Description
HDPE Butt-Fusion Fittings are injection-moulded PE100 elbows, tees, reducers, end caps and couplers used to fabricate fully-fused, monolithic HDPE pipe networks. The butt-fusion joint they create is stronger than the parent pipe — the dominant joining method for water, gas and mining mains.
Advantages and Characteristics
1. Same wall thickness and SDR as the pipe — no weak point in the network.
2. Injection-moulded for tight dimensional control to ISO 4427-3 / EN 12201-3.
3. Long spigot ends to fit standard butt-fusion clamps without machining.
4. PE100 raw material certified for potable water (WRAS, NSF/ANSI 61).
5. Range covers DN20 – DN1200 with elbows (45°/90°), tees, reducing tees, Y-tees, crosses, end caps and reducers.
Typical Applications
1. Municipal water-distribution and sewer networks.
2. Industrial and mining slurry / process pipelines.
3. Gas distribution mains (PE80 / PE100 grades).
4. Marine outfalls and submerged piping.
5. Above-ground process piping inside chemical plants.
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
HDPE Butt-Fusion Fittings — used in these projects
HDPE Butt-Fusion Fittings — recommended applications
Applications
HDPE pipe for water supply — trunk mains & distribution
Applications
HDPE & PVC pipe for irrigation — drip, sprinkler, buried mains
Applications
HDPE pipe for natural gas distribution — PE80 & PE100
Applications
HDPE pipe for fire-protection mains — AWWA C906 grade
Applications
HDPE pipe & brackets for aquaculture — fish cages, intake / outfall
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
