PVC Fittings

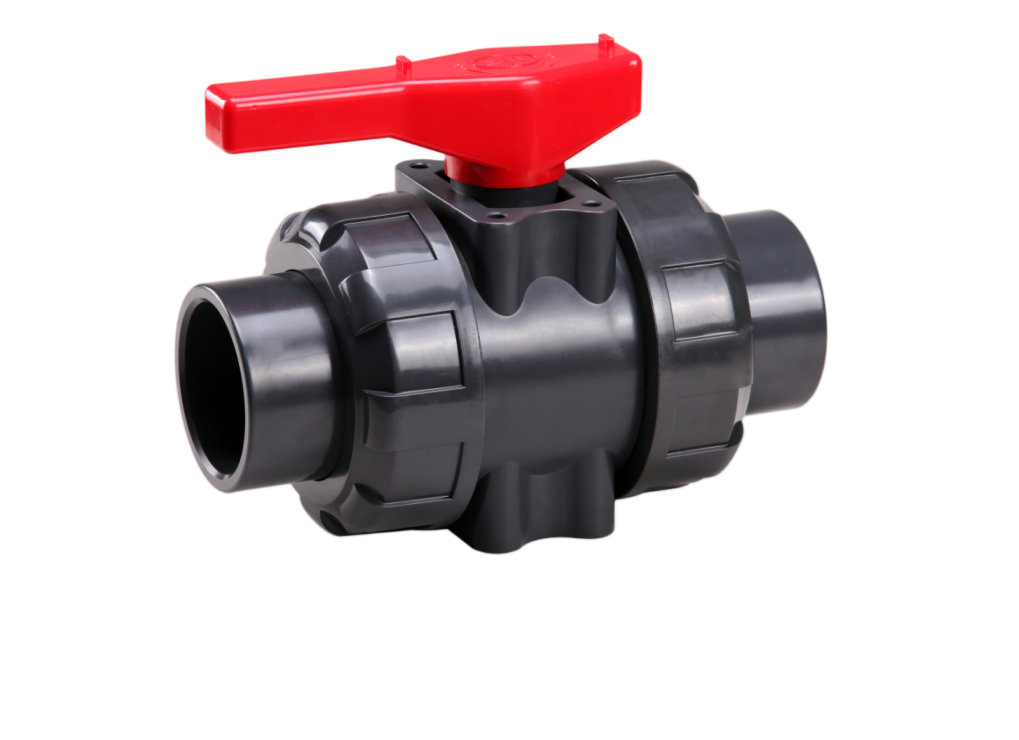

PVC Ball Valve
Manual PVC-U ball valve for shut-off in cold-water, irrigation, swimming-pool and chemical-handling lines. Quarter-turn lever, EPDM seals (FKM optional), single- or true-union body for in-line servicing. Sizes DN15 – DN100, PN10 / PN16.
- Raw Materials
- PVC-U lead-free compound
- Diameter Range
- DN15 – DN100 mm
- Pressure Rating
- PN10 / PN16
- Standards
- ISO 1452-3 / EN 1452-3 / ASTM D2466 / D2467
- Joint Type
- Single-union or true-union, socket × socket / threaded BSP / NPT
- Color
- Light grey / dark grey / white (custom on request)
- Applications
- Water supply, irrigation, drainage, pool / spa, industrial pressure piping
Product Description
The Primepoly PVC ball valve is a manual quarter-turn shut-off valve for cold-water, irrigation, swimming-pool and chemical-handling service. EPDM seals as standard (FKM optional for chemical lines), single-union or true-union body for in-line service without breaking the pipe — the workhorse isolation valve on every PVC system.
Advantages and Characteristics
1. Quarter-turn lever for fast on / off; visible indicator from the lever orientation.
2. EPDM seals (cold water / irrigation) or FKM seals (chemical service) — specify per application.
3. Single-union body removes from the line for service; true-union (both sides) allows valve replacement without breaking either pipe.
4. Full-bore design — no flow restriction in the open position.
5. Sizes DN15 – DN100, PN10 / PN16, manual lever or actuator-ready (ISO 5211) on request.
Typical Applications
Isolation valves on irrigation pump manifolds, swimming-pool filtration loops, chemical-dosing skids, building cold-water risers, chiller / cooling-tower bypass loops, and hydraulic pressure-test isolation. Specified throughout commercial pool plant rooms, agriculture pump houses and water-treatment skids.
Quality and Compliance
Every Primepoly PVC ball valve is moulded from food-grade, lead-free PVC-U compound and tested to ASTM D2466 (Sch 40), ASTM D2467 (Sch 80), ISO 1452-3 and EN 1452-3. Optional NSF/ANSI 61 certification is available for potable-water service. Pressure ratings PN10 / PN16, working temperature 0–60 °C, service life over 50 years when installed per manufacturer guidelines.
