HDPE Pipes
HDPE Aquaculture & Fish-Cage Pipe — Marine Grade PE100
PE100 HDPE pipe and brackets engineered for marine aquaculture: floating fish-farm cages, mussel rafts and seawater intake / outfall lines. Inert, non-toxic, UV / salt water / biofouling resistant. Custom HDPE fish-cage frames and PE100 sub-sea outfall lines for Southeast Asia and Middle East farming projects.
- HDPE Fish Cage Pipe for Marine Aquaculture

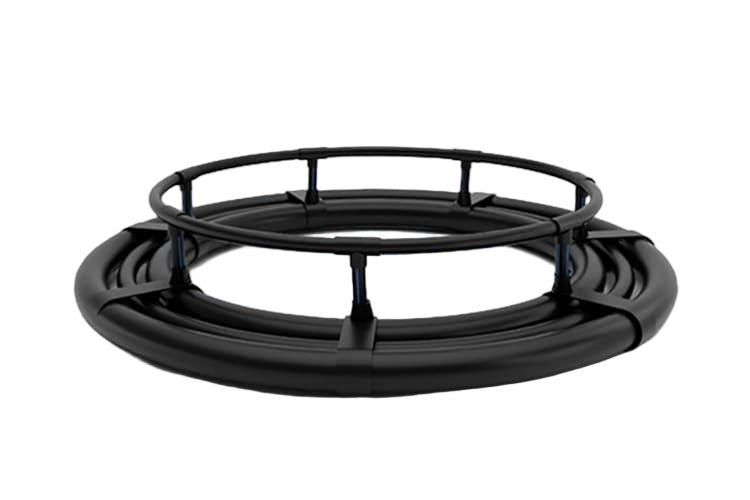

- HDPE Aquaculture Pipe — Floating Fish Farm

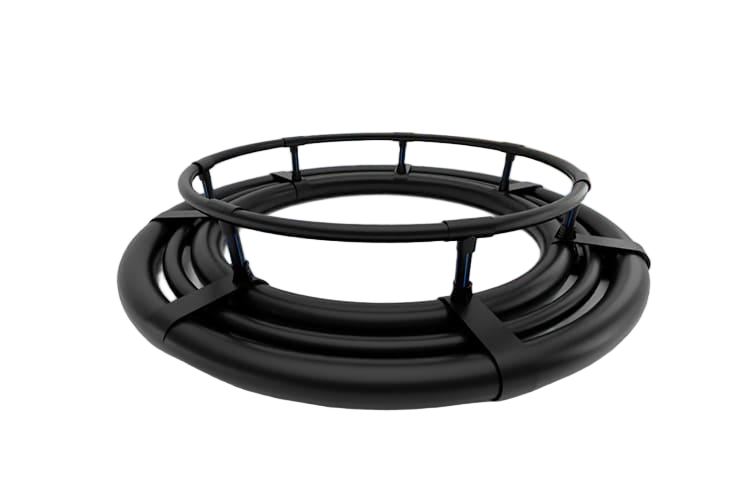

- PE100 Fish Cage Pipe Assembly

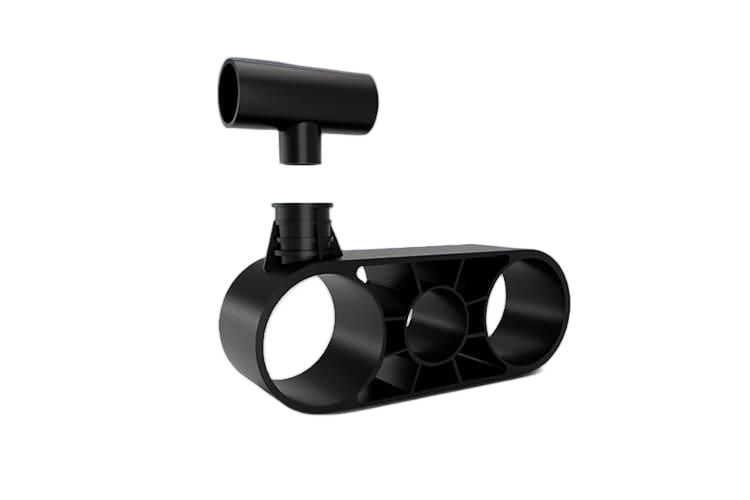

- HDPE Fish Cage Corner Bracket

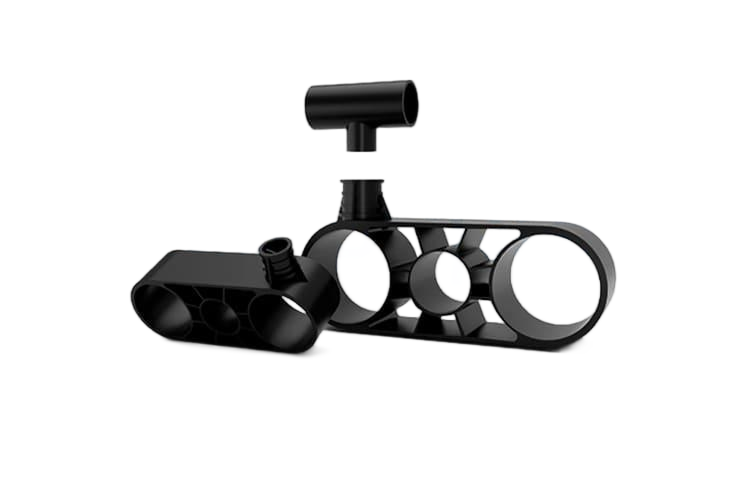

- HDPE Fish Cage Bracket — Variant
- Raw Materials
- PE80 / PE100 / PE4710 from Borealis, SABIC, Sinopec, PetroChina
- Diameter Range
- DN20 – DN355 mm
- Pressure Rating
- SDR11 – SDR26 (PN6 – PN16)
- Standards
- ISO 4427 / EN 12201 / AS/NZS 4130 / SABS
- Certificates
- ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201
- Color
- Black / blue / black with blue stripes (custom)
- Length
- 5.8 m / 11.8 m
- Applications
- Marine fishery floating cages (15+ m depth), pearl farming, oyster farming
Product Description
HDPE Aquaculture & Fish Cage Pipe is a marine-grade PE100 pipe used to build floating fish-farm cages, mussel and seaweed lines, and aquaculture water-supply infrastructure. It resists UV, saltwater and biofouling for decades of offshore service.
Advantages and Characteristics
1. UV- and saltwater-resistant: stable for 25+ years on the surface offshore.
2. Naturally buoyant: forms the floating ring of fish-farm cages without extra floats.
3. High impact strength: tolerates wave loading, debris and ice.
4. Non-toxic: safe for food-fish farming and seaweed cultivation.
5. Easy field jointing: butt-fusion of cage rings on the dock.
Typical Applications
1. Salmon, sea-bream, sea-bass and tuna cage frames.
2. Mussel, oyster and seaweed long-lines.
3. Aquaculture farm seawater intake and discharge.
4. Floating walkways and service rings for marine farms.
5. Inland recirculating-aquaculture-system (RAS) plumbing.
Datasheet
Fish Cage Pipe — Dimensional Data
| Component | OD (mm) | Wall (mm) | Length (m) | Application |
|---|---|---|---|---|
| Cage handrail pipe (color) | 200 / 250 / 280 / 315 | 11.4 – 17.9 | Custom | Top floatation ring |
| Cage main float pipe | 250 / 280 / 315 / 355 | 14.8 – 21.0 | Custom | Lower floatation ring |
| Bracket connector pipe | 110 / 140 / 160 | 6.6 – 9.5 | Custom | Cross-tie between rings |
| PE non-slip pedal | Custom mould | — | — | Worker walkway |
| PE accessories | Custom | — | — | Brackets, sleeves, anchors |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
HDPE Aquaculture & Fish-Cage Pipe — Marine Grade PE100 — used in these projects
HDPE Aquaculture & Fish-Cage Pipe — Marine Grade PE100 — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
