HDPE Pipes
HDPE Fire Protection Pipe
HDPE fire-protection pipes for underground fire mains, hydrant supply lines and standpipe systems. Identifiable red-stripe and blue-stripe versions for service-line marking, plus AWWA C906 versions for North American projects. PE100 / PE4710 resin, sizes DN50 – DN1200, pressure ratings up to PN25 (DR9). Available with FM Approvals and UL/ULC listings on request.
- Red-Stripe HDPE Fire Protection Pipe

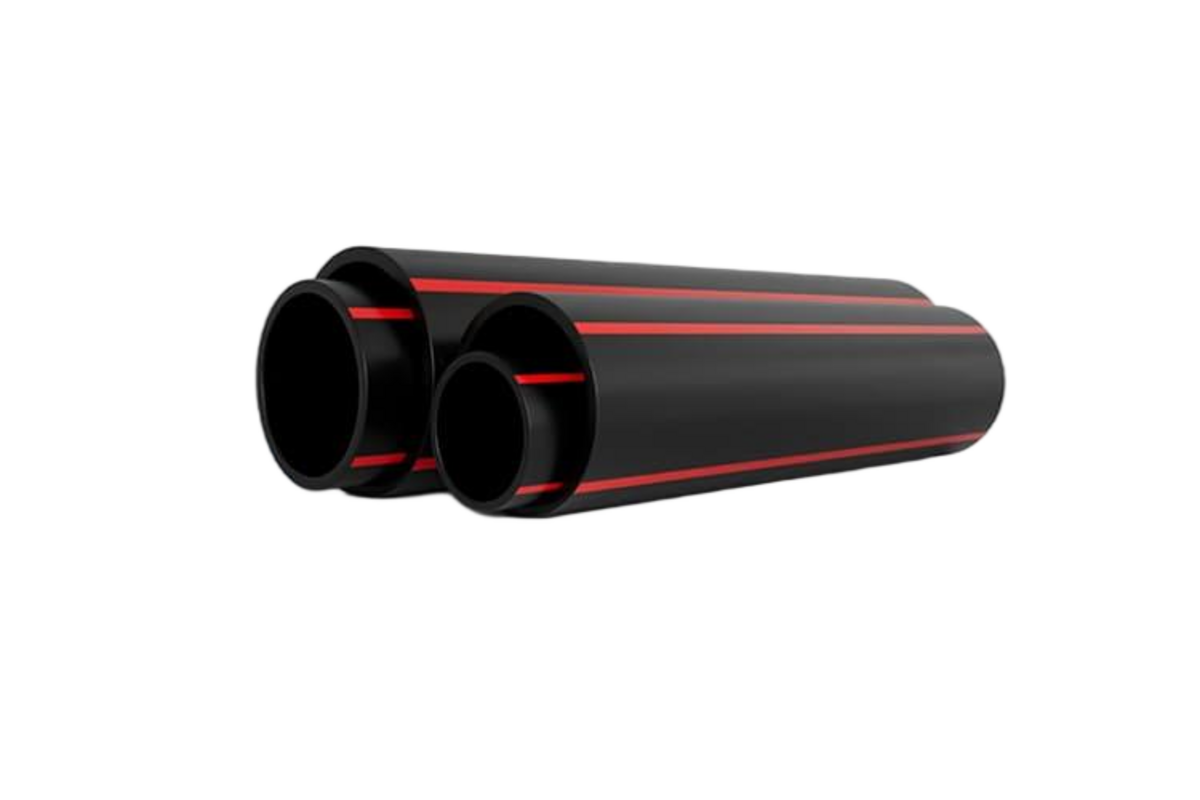

- HDPE Fire Pipe with Red Identification Stripes
- AWWA C906 HDPE Fire Protection Pipe

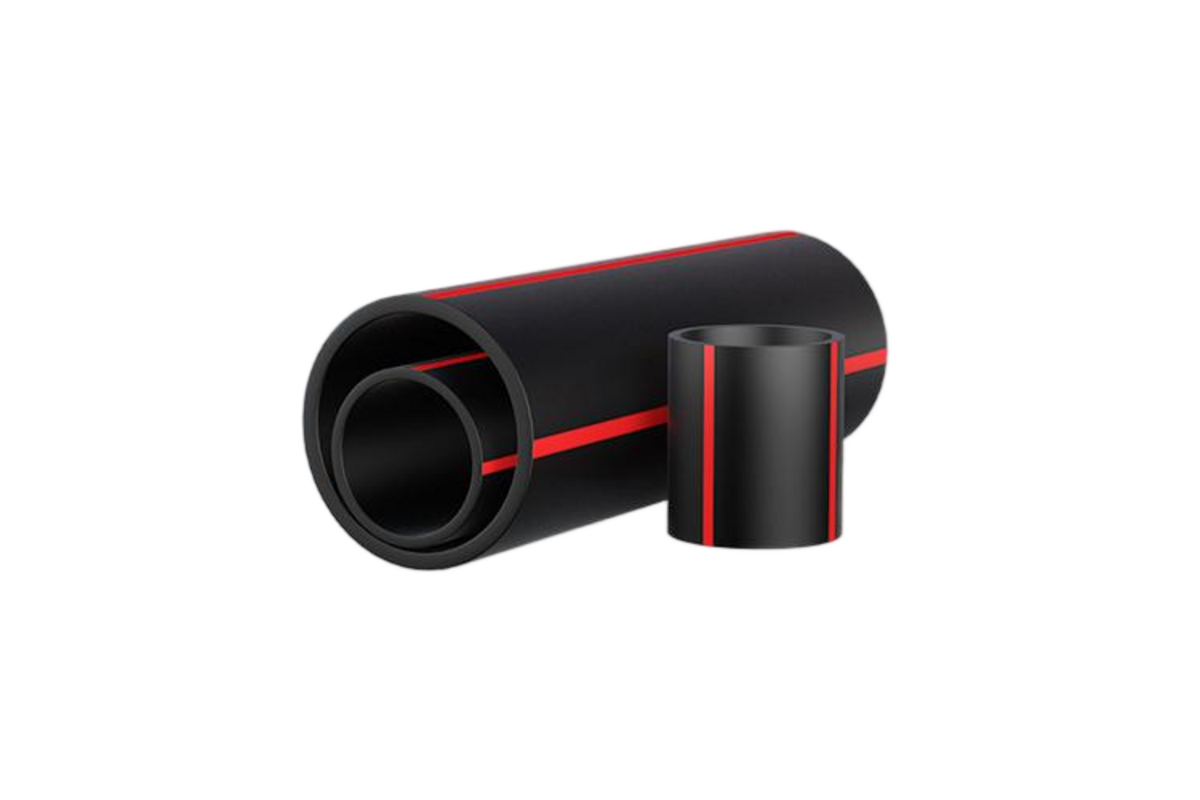

- AWWA C906 HDPE Fire Pipe — Detail
- Raw Materials
- PE100 / PE4710 from Borealis, SABIC
- Diameter Range
- DN50 – DN1600 mm (2" – 64", customised on request)
- Pressure Rating
- SDR41 – SDR7.4 (PN4 – PN25 bar) — full DR range per ASTM F714
- Standards
- AWWA C906 / AWWA C901 / ASTM F714 / ASTM D3035 / ISO 4427 / EN 12201 / FM 1613
- Certificates
- WRAS, UL, NSF/ANSI 61, CE, ISO 9001 / 14001 / 45001; FM Approvals & UL/ULC listings on request
- Color
- Red-stripe (NA market) / blue-stripe (international) / black with red ID stripes
- Length
- 11.8 m straight; longer custom
- Applications
- Underground fire mains, hydrant supply lines, standpipe systems
Product Description
HDPE Fire Protection Pipe is FM Approved and UL Listed for buried fire-service mains. PE100 / PE4710 construction provides corrosion-free, leak-free service for hydrant loops, sprinkler-system feeders and fire reserves at the lowest lifetime cost among approved materials.
Advantages and Characteristics
1. FM Approved (FM 1613) and UL Listed (UL 1285) for fire mains up to 175 psi.
2. Heat-fused joints stay sealed under hydrostatic surge — far more reliable than gasketed iron pipe.
3. Corrosion-free underground for the life of the asset, eliminating cathodic-protection cost.
4. Identifiable red stripe extrusion for fire-service segregation.
5. Compatible with full HDPE valve, hydrant adapter and stub-flange ecosystem.
Typical Applications
1. Underground fire-service mains feeding hydrants and standpipes.
2. Sprinkler-system feeds for warehouses, data centres and industrial plants.
3. Fire-water reserves and pump-house suction lines.
4. Airport, port and refinery fire-protection networks.
5. Wildfire-protection water systems for utility and railway corridors.
Datasheet
Fire Protection Pipe — Dimensional Data
| Nominal Size PE100DN (mm) | SDR 7.4 / PN25Min Wall (mm) | SDR 9 / PN20Min Wall (mm) | SDR 11 / PN16Min Wall (mm) |
|---|---|---|---|
| 110 | 15.1 | 12.3 | 10.0 |
| 125 | 17.1 | 14.0 | 11.4 |
| 140 | 19.2 | 15.7 | 12.7 |
| 160 | 21.9 | 17.9 | 14.6 |
| 180 | 24.6 | 20.1 | 16.4 |
| 200 | 27.4 | 22.4 | 18.2 |
| 225 | 30.8 | 25.2 | 20.5 |
| 250 | 34.2 | 27.9 | 22.7 |
| 280 | 38.3 | 31.3 | 25.4 |
| 315 | 43.1 | 35.2 | 28.6 |
| 355 | 48.5 | 39.7 | 32.2 |
| 400 | 54.7 | 44.7 | 36.3 |
| 450 | 61.5 | 50.3 | 40.9 |
| 500 | — | 55.8 | 45.4 |
| 560 | — | 62.5 | 50.8 |
| 630 | — | 70.3 | 57.2 |
International Certifications & Compliance
Our HDPE, PVC and PPR products are independently tested and certified to international standards for drinking water safety, quality management and product compliance.
CE / ISO 9001
ISO 9001 quality management system
WRAS
UK drinking water approval
NSF 61
NSF/ANSI 61 drinking water safety (USA)
Global Projects Powered by Primepoly
From municipal water mains and mining slurry lines to fire protection risers and agricultural drip irrigation — Primepoly HDPE, PVC and PPR piping systems keep fluids flowing safely across more than 40 countries.
Municipal Potable Water Trunk Main
DN1200 HDPE PE100 · 18 km
High-Rise Fire Protection Riser
DN150 HDPE · 42 floors
Open-Pit Mine Dewatering Line
DN800 SRTP · 6 km
Urban Gas Distribution Network
DN110 / DN225 HDPE SDR11
Drip Irrigation Backbone
DN63 - DN315 HDPE · 1,200 ha
Industrial Park Chilled Water
DN400 PE100 · PN10
HDPE Fire Protection Pipe — used in these projects
HDPE Fire Protection Pipe — recommended applications
Frequently Asked Questions
What is the minimum order quantity (MOQ) for HDPE / PVC pipe?
Standard MOQ varies by product — generally 1 ton for HDPE pipe, 500 kg for PVC pipe, and one full container for export orders. Custom MOQ is available for sample / pilot projects — contact our sales team for confirmation.
What is the typical lead time?
For stocked sizes, 7–10 days from order confirmation; for custom OD / SDR / colour, 25–35 days. Production capacity exceeds 2,000 t/month — large project orders are scheduled in batches.
Which certifications does Primepoly hold?
ISO 9001, ISO 4427, AS/NZS 4130, ASTM F714, AWWA C906, WRAS and NSF 61. Documentation accompanies every shipment, and third-party inspection (SGS / BV) is welcome at the buyer's request.
Do you offer OEM and private-label manufacturing?
Yes — we manufacture pipes and fittings to customer-specified OD, SDR, length, colour, marking and packaging. MOQ for OEM orders typically starts at 5 tons or one full container.
How are pipes packaged for export shipping?
Pipes are bundled with PE film / steel strap and stowed by length: short pipes (≤6 m) ship in 20'/40' containers; long pipes (>12 m) ship by break-bulk vessel or flat rack. Coil rolls are shrink-wrapped and palletised. Free OBL with shipping documents.
