PVC Fittings

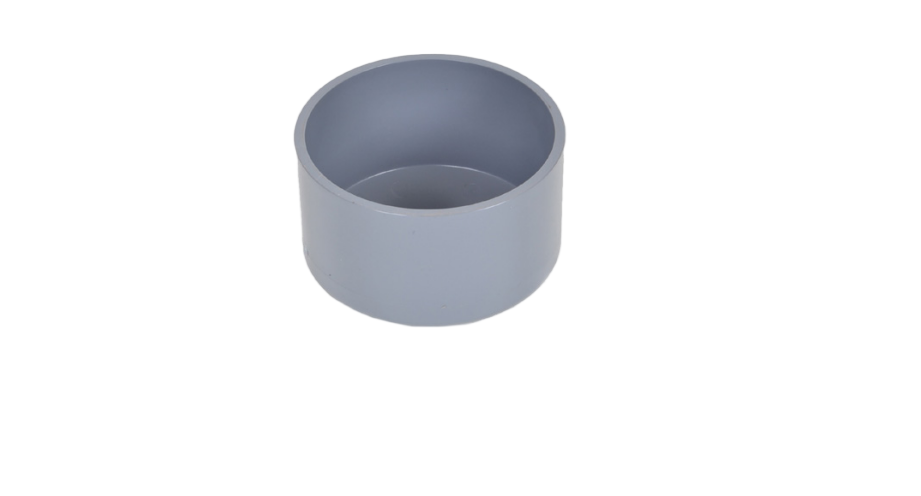

PVC End Cap
PVC-U end cap to close off a pipe end during pressure-testing, future tie-in stub-outs or permanent termination of branch lines. Solvent-weld socket and threaded female versions per ASTM D2466. DN20 – DN500, PN10 / PN16.
- Raw Materials
- PVC-U lead-free compound
- Diameter Range
- DN20 – DN500 mm
- Pressure Rating
- PN10 / PN16
- Standards
- ISO 1452-3 / EN 1452-3 / ASTM D2466 / D2467
- Joint Type
- Solvent-weld socket / threaded female BSP / NPT
- Color
- Light grey / dark grey / white (custom on request)
- Applications
- Water supply, irrigation, drainage, pool / spa, industrial pressure piping
Product Description
The Primepoly PVC end cap closes off a pipe end — for pressure testing, future tie-in stub-outs, or permanent termination of branch runs. Solvent-weld socket and threaded female versions are stocked, both moulded to ASTM D2466 dimensions for interchange with all leading systems.
Advantages and Characteristics
1. Solvent-weld socket × socket and threaded female BSP / NPT versions per ASTM D2466.
2. Domed crown geometry distributes pressure evenly — full PN16 rating to the largest size.
3. Removable threaded version preferred for stub-outs that may be re-opened during commissioning.
4. Smooth external profile — no protrusions to snag during pipe-pulling or pull-through installations.
5. Sizes DN20 – DN500.
Typical Applications
Hydraulic pressure testing of new pipe runs before commissioning, capping off un-used branches in distribution manifolds, terminating service drops at the property line, sealing redundant taps after irrigation re-design, and protecting open pipe ends during transport / storage.
Quality and Compliance
Every Primepoly PVC end cap is moulded from food-grade, lead-free PVC-U compound and tested to ASTM D2466 (Sch 40), ASTM D2467 (Sch 80), ISO 1452-3 and EN 1452-3. Optional NSF/ANSI 61 certification is available for potable-water service. Pressure ratings PN10 / PN16, working temperature 0–60 °C, service life over 50 years when installed per manufacturer guidelines.
